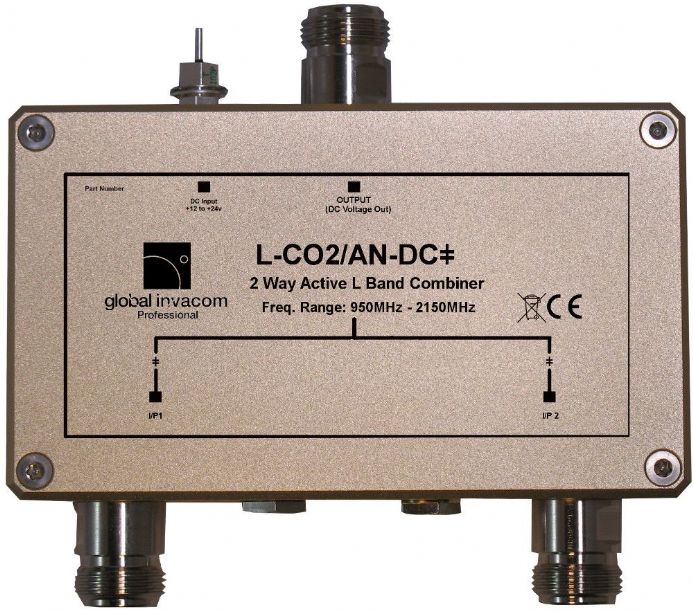

L Band 2 Way Active Combiner
Categories:
ANCIL
The Global Professional L Band Active 2 way Combiner has been designed to combine two L band signals with low insertion loss. Dependant on configuration the unit can be powered either by Port 1 or ...
More Information
The Global Professional L Band Active 2 way Combiner has been designed to combine two L band signals with low insertion loss. Dependant on configuration the unit can be powered either by Port 1 or external Power Supply Unit available separately.
It has:
- EMI-proof enclosure
- Low insertion loss
- High Isolation
- N type, F type, BNC and SMA connectors available
Please note that Active Combiners cannot be used as Active Splitters.
L-Band combiners can also be supplied as rack mount solutions.
Specifications:
| Weight | 0.4kg |
| Frequnecy Pass | 950MHz - 2150MHz |
| Through Loss | 0dB +/-0.5dB |
| Port to Port Isolation | +20dB |
| Return Loss | +15dB |
| Supply Voltage | 12 -48V DC |
| Max DC Current Handling | 1 Amp |
| Current Consumption | 60mA |
| Dimensions | 116mm x 66mm x 26mm |
For more details please use the product enquiry form or contact our sales team.
Specifications
Download the L Band 2 Way Active Combiner specifications.
Enquire
Add your details below to find out more about this product. We'll aim to get back to within 48 working hours.
L Band 2 Way Active Combiner
Sale price£95.00
Choose options
L Band 2 Way Active Combiner
Sale price£95.00
