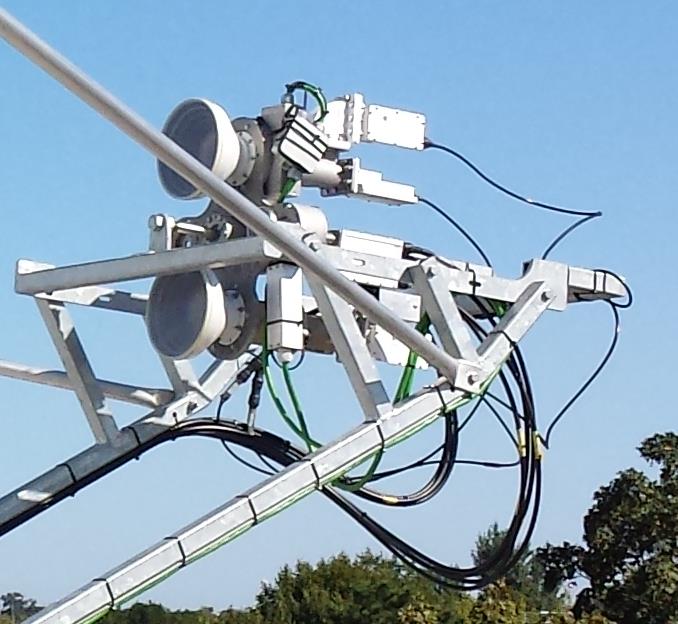

Multifeed Revolver Motorization

This unique feed system we provide is a rotating multi feed mechanism that can be installed on the most popular offset reflectors available in the industry.

This product is ideal for operators that want to use the same reflector for multiple frequency bands. Basically you can have the same reflector for up to 4 feed systems (Transmitter and Receiver).

This complex system places the feed of your choice on the focus of the offset antenna. In addition to this feature each individual feed has his own polarization motor so you can interchange automatically the feeds and also set the desired polarization.

The Multiband Revolver is based on a highly precise backlash free motor that gets the commands from our APS 700 web access controller.  The individual feed polarization motors are also light, compact and specifically designed for this application.

As long as the reflector is designed to support the highest frequency of your choice you can automatically select the frequency band and choose between Ka, K, Ku, X or C Band. It will be even cheaper to use this mechanism with two port feeds instead of a four port feed if your application allows this.

There is also an option for a feed polarisation drive.

For more details and prices please use the product enquiry form or contact our sales team.

Download the Multifeed Revolver Motorization specifications.

Multifeed_Revolver.pdf
