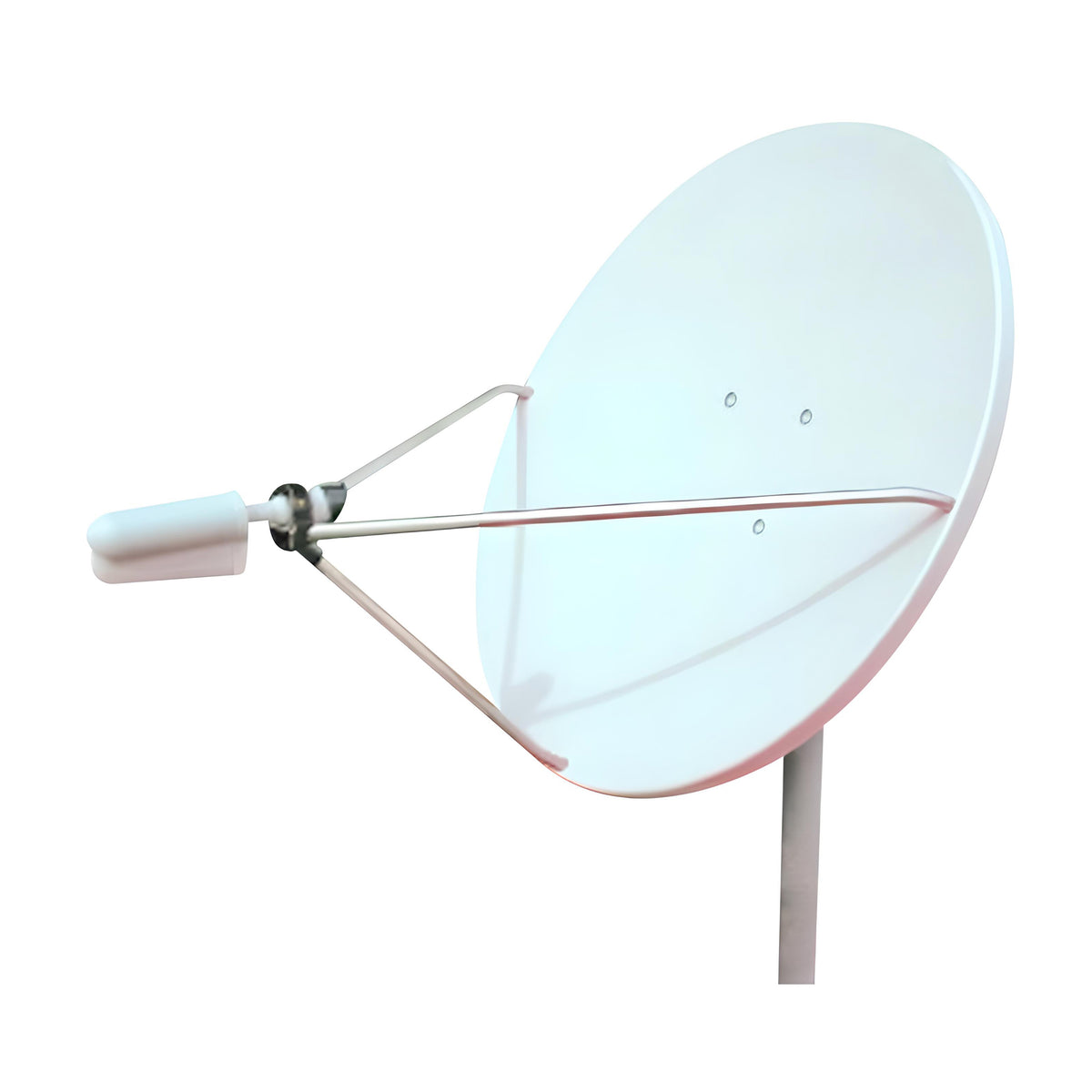

1.0m Receive-Only Antenna System

The 1.0 m Type 100 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into... Read full description

SKU: 100

Categories: SATCOM

Description Specifications Enquire

The 1.0 m Type 100 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to either a 60 mm (2.38”) or 73-76 mm (2.88”-3.00”) O.D. mast and prevents slippage in high winds.

Features:

All materials comply with EU directive No. 2002/95/EC (RoHS).
One-piece thermoset-molded offset reflector.
Single bolt fine elevation adjustment.
Fine azimuth adjustment.
Galvanized 19 mm (.75”) O.D. feed support legs.
Factory pre-assembled Az/Elmount.
Plated hardware for maximum corrosion resistance.
Hot dip galvanized Az/El mount.
Available with a wide variety of Ku-band feeds.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.0m Receive-Only Antenna System specifications.

1.0m_Receive-Only_Antenna_System.pdf
