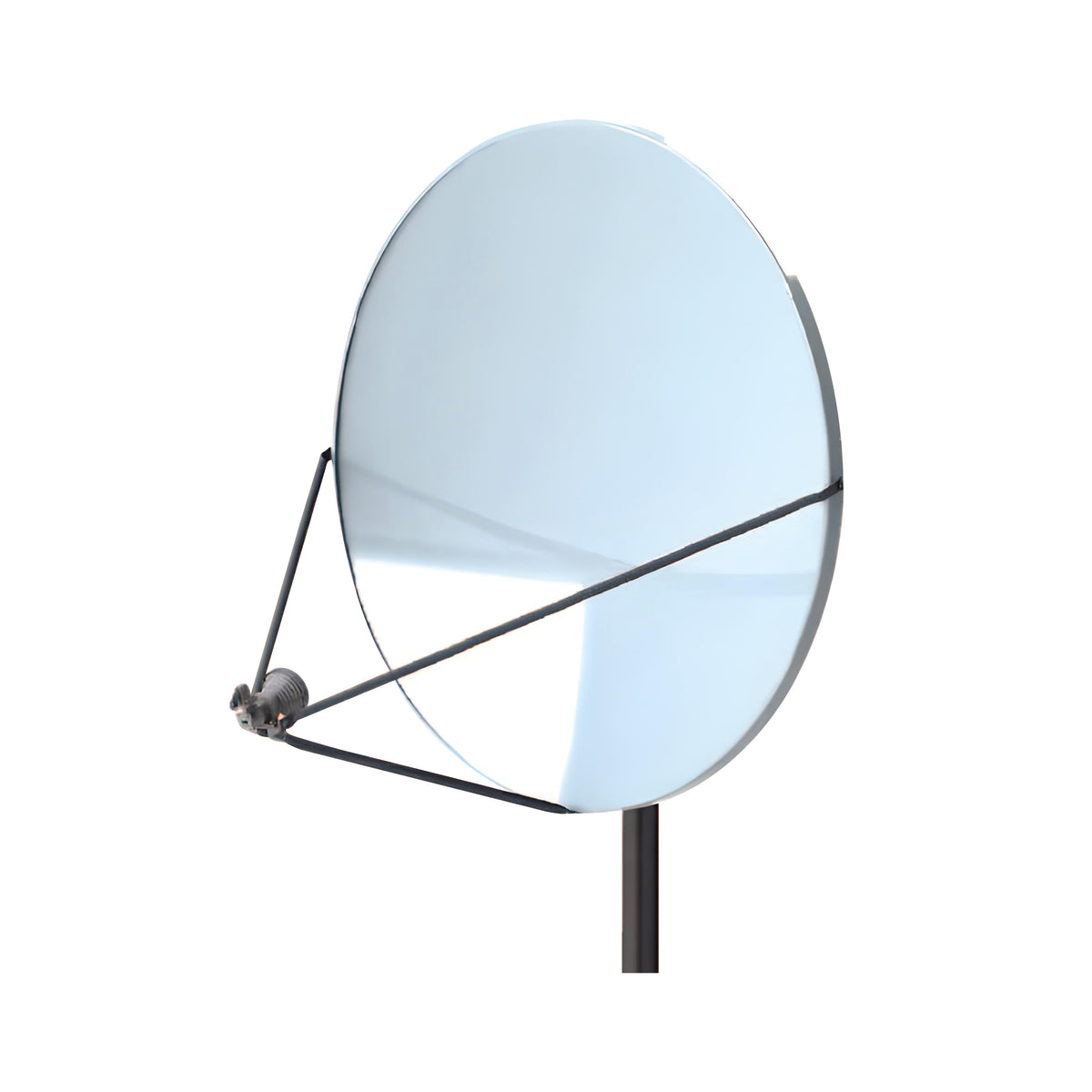

1.2m Extended Ku Band LFL Receiver Transmitter (RxTx) Antenna

The 1.2m extended Ku band LFL Class I antenna is a rugged, commercial quality product suitable for the most demanding applications.

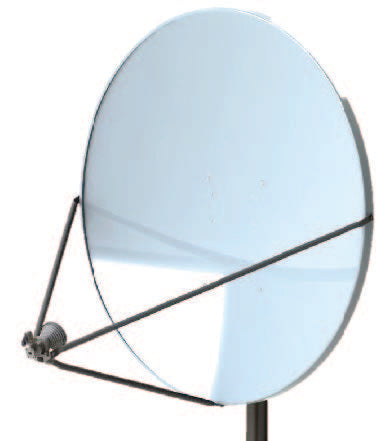

The reflector is constructed from glass fiber reinforced polyester [SMC] for strength and accuracy. A proprietary process insures high RF reflectivity as needed for Ku Band operation.

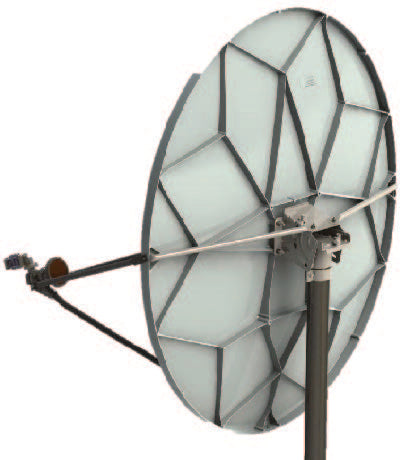

The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error. This Az/EI allows the antenna to be installed on standard (73-76MM) 27/8 or 3” OD installation mounts.

All hardware is plated to 720 hour salt spray standards under ASTM B -117. Cross-Polarization Isolation of 30dB on axis Excellent Tx Port-to-Port Isolation of 90dB or better

Class I system designed for typical lightweight Ku-band RF Electronics (2.0 kg or 4.5 lb max. weight (For BUC and LNB) 2.2 kg or 4.8 lb max. weight (For Transceiver)).

Features:

• ISO 9001:2008 Certificate of Registration
• One-piece precision SMC Reflector
• Precision Az/EI Mount
• Fine Azimuth and Elevation adjustment features
• All materials comply with EU Directive No. 2002/95/EC
• Standard waveguide flange interface

For more details and prices please use the product enquiry form or contact our sales team.

Download the 1.2m Extended Ku Band LFL Receiver Transmitter (RxTx) Antenna specifications.

1.2m_Extended_Ku_Band_LFL_Receiver_Transmitter_RxTx_Antenna.pdf
