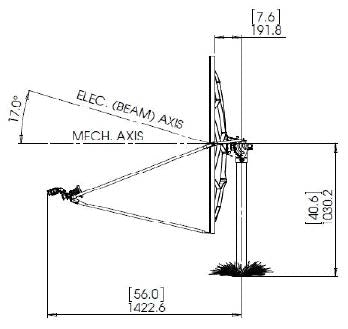

1.2m Ku Band Receiver Transmitter (Rx/Tx) Antenna System

The 1.2m Class I RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is constructed from glass fibre reinforced polyester [SMC] for strength... Read full description

SKU: 125

Categories: SATCOM

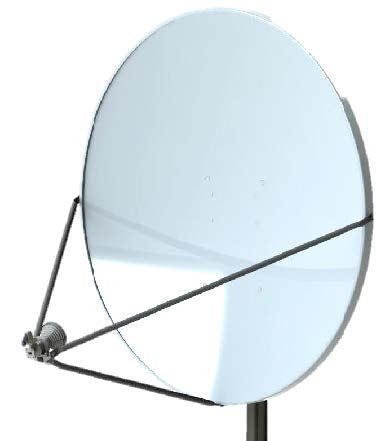

The 1.2m Class I RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications.

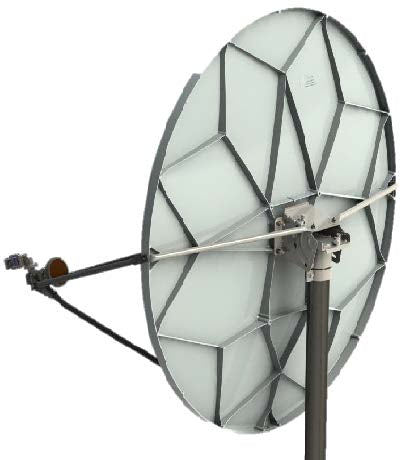

The reflector is constructed from glass fibre reinforced polyester [SMC] for strength and accuracy. A proprietary process ensures high RF reflectivity as needed for Ku-Band operation.

The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error.

This Az/EI allows the antenna to be installed on standard 73-76mm [27/8”- 3”] OD installation mounts. All hardware is plated to 720 hour salt spray standards under ASTM B-117.

Features:

  • Cross-Polarization Isolation of 30dB on axis
  • Excellent Tx Port-to-Port Isolation of 90dB or better
  • Meets or exceeds regulator agency requirements
  • Class I system designed for typical lightweight Ku-band RF Electronics
  • ISO 9001:2008 Certificate of Registration
  • All materials comply with EU directive No. 2011/95/EC (RoHS)
  • Precision Az/EI Mount
  • Fine Azimuth and Elevation Adjustment Features
  • Standard Waveguide Flange

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.2m Ku Band Receiver Transmitter (Rx/Tx) Antenna System specifications.

1.2m_Ku_Band_Receiver_Transmitter_RxTx_Offset_Antenna_System.pdf
