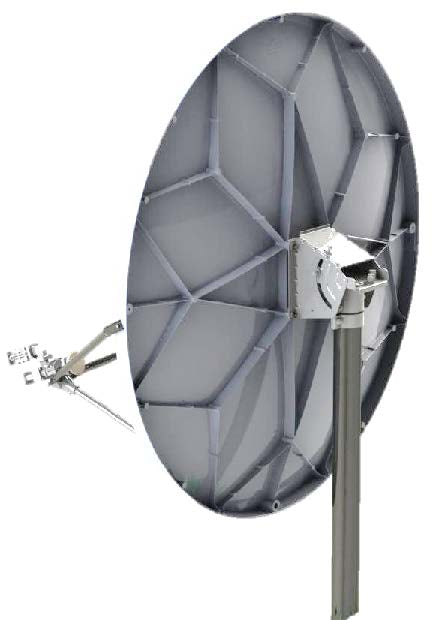

1.2m SFL Receiver Transmitter (RxTx) Antenna

The 1.2m BSS Band Antenna SFL RxTx Class I is a rugged, commercial quality product suitable for the most demanding applications. The reflector is constructed from glass fiber reinforced polyester... Read full description

SKU: 122

Categories: SATCOM

The 1.2m BSS Band Antenna SFL RxTx Class I is a rugged, commercial quality product suitable for the most demanding applications.

The reflector is constructed from glass fiber reinforced polyester [SMC] for strength and accuracy. A proprietary process insures high RF reflectivity as needed for Ku Band operation.

The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error. This Az/EI allows the antenna to be installed on standard (73-73MM) 27/8 or 3” OD installation mounts.

All hardware is plated to 720 hour salt spray standards under ASTM B -117. Cross-Polarization Isolation of 30dB on axis Excellent Tx Port-to-Port Isolation of 90dB or better

Class I system designed for typical lightweight Ku-band RF Electronics (2.0 kg or 4.5 lb max. weight (For BUC and LNB) 2.2 kg or 4.8 lb max. weight (For Transceiver)).

Features:

  • One-piece precision SMC Reflector
  • Precision Az/EI Mount
  • Fine Azimuth and Elevation adjustment features
  • All materials comply with EU Directive No. 2002/95/EC
  • 720 hour salt spray hardware
  • Standard waveguide flange interface

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.2m SFL Receiver Transmitter (RxTx) Antenna specifications.

1.2m-Type-122-BSS-RT-Class-I-Spec.pdf
