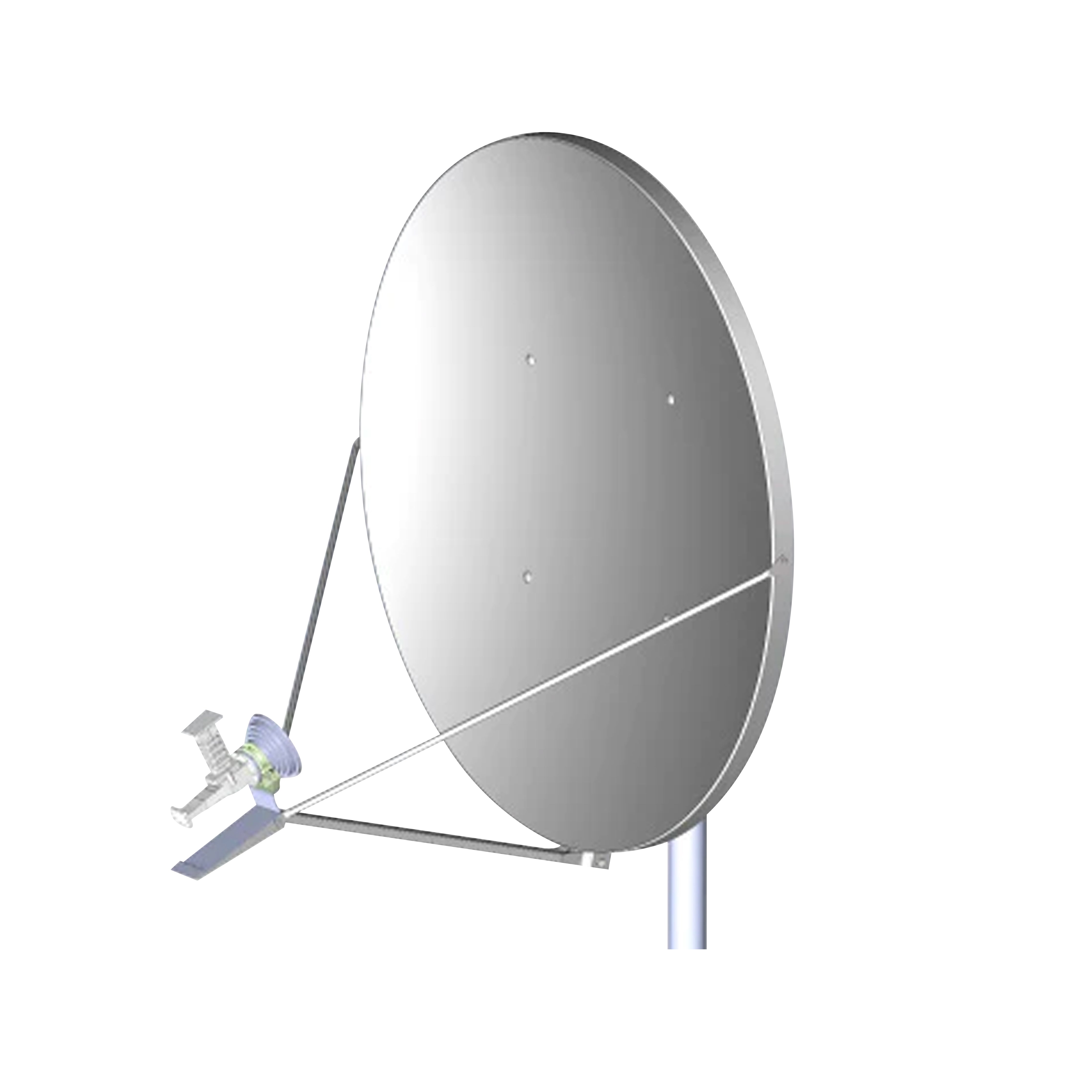

1.8m Linear Receiver Transmitter (Rx/Tx) Class III Antenna System

The 1.8 m Linear Class III RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded... Read full description

SKU: Type 183

Categories: SATCOM

Description Specifications Enquire

The 1.8 m Linear Class III RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 114 mm (4.50”) O.D. mast and prevent slippage in high winds. Heavy-duty lockdown bolts secure the mount to any 114 mm (4.50”) O.D. mast and prevent slippage in high winds. Hot-dip galvanizing is standard on this model for maximum environmental protection. A marinised version of this antenna is also available making it suitable for on-shore and offshore marine environments.

It has HD Galvanised support arm and alignment struts and a marinised version has all galvanized steel components finished with 2 part epoxy paint.

Plated hardware for maximum corrosion resistance. Optional marinised version uses marine grade AISI 316 stainless steel hardware throughout. It includes a C-band linear cross-polarized RxTx feed assembly. Heavy-duty Class III mount for 11 kg (25 lb) RF electronics Low Noise Block (LNB) & Block Up Converter (BUC).

Features:

All materials comply with EU directive No. 2011/65/EC (RoHS).
One-piece precision offset thermoset-molded reflector.
Heavy-duty galvanized Az/El mount.
Fine Azimuth and elevation adjustments.
Factory pre-assembled mount.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.8m Linear Receiver Transmitter (Rx/Tx) Class III Antenna System specifications.

Type_183_1.8_M_C-band_Linear_RxTx_Class_III_Antenna_System.pdf?v=1618505970.pdf
