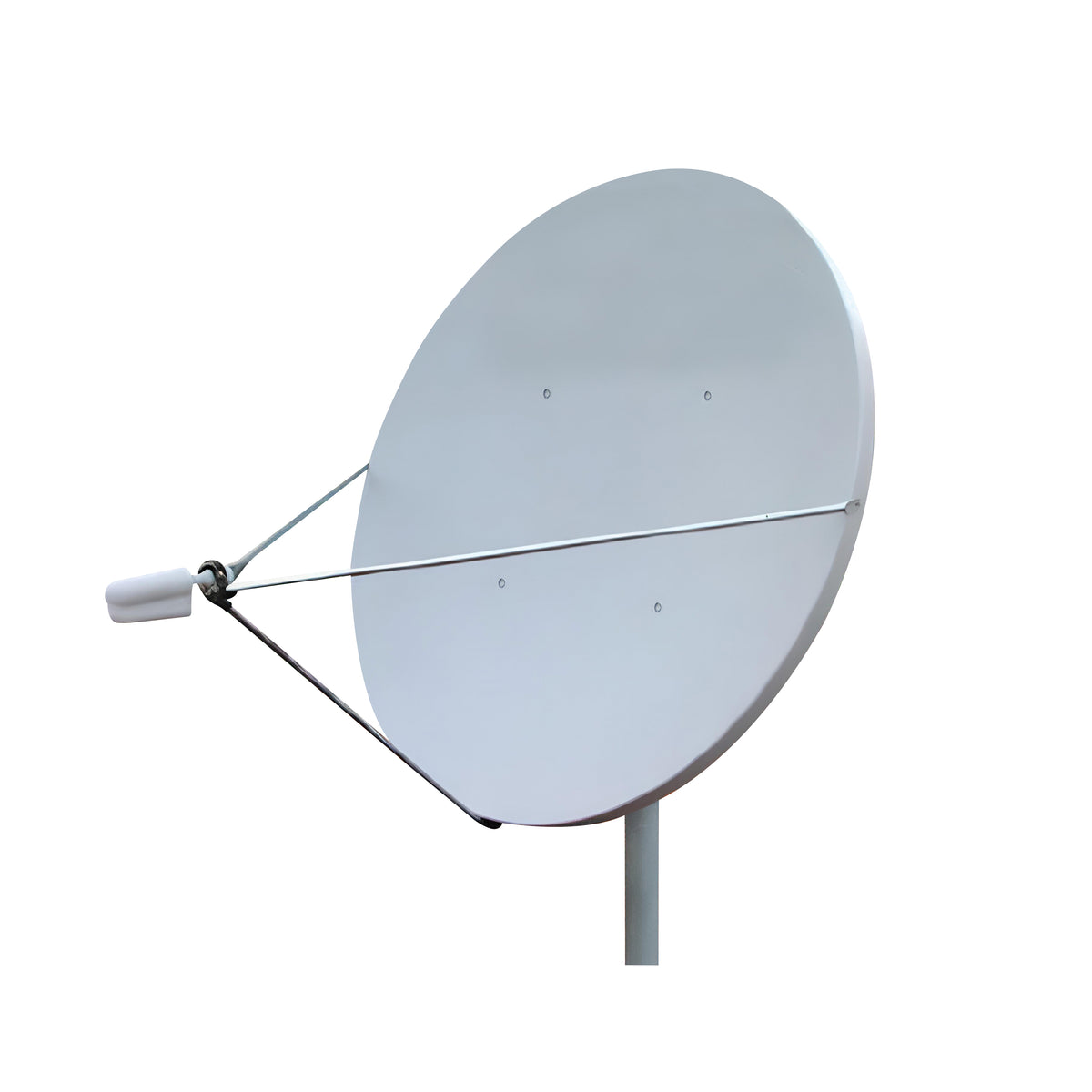

1.8m Receive-Only Antenna System

Our 1.8 m Type 180 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into... Read full description

SKU: 180

Categories: SATCOM

Our 1.8 m Type 180 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape. The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector.

The Az/El mount secures the antenna to any 114 mm (4.50”) O.D. mast and prevents slippage in high winds. A specially formulated powder paint process offers excellent protection from weather-related corrosion.

Features:

  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • One-piece thermoset-molded offset reflector.
  • Single bolt fine elevation adjustment.
  • Fine azimuth adjustment.
  • Galvanized 19 mm (.75”) O.D. feed support legs.
  • Factory pre-assembled mount.
  • Plated hardware for maximum corrosion resistance.
  • Hot dip galvanized Az/El mount.
  • Available with a wide variety of C-band or Ku-band feeds.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.8m Receive-Only Antenna System specifications.

1.8m-Type-180-C-Ku-RX-Offset-Spec.pdf
