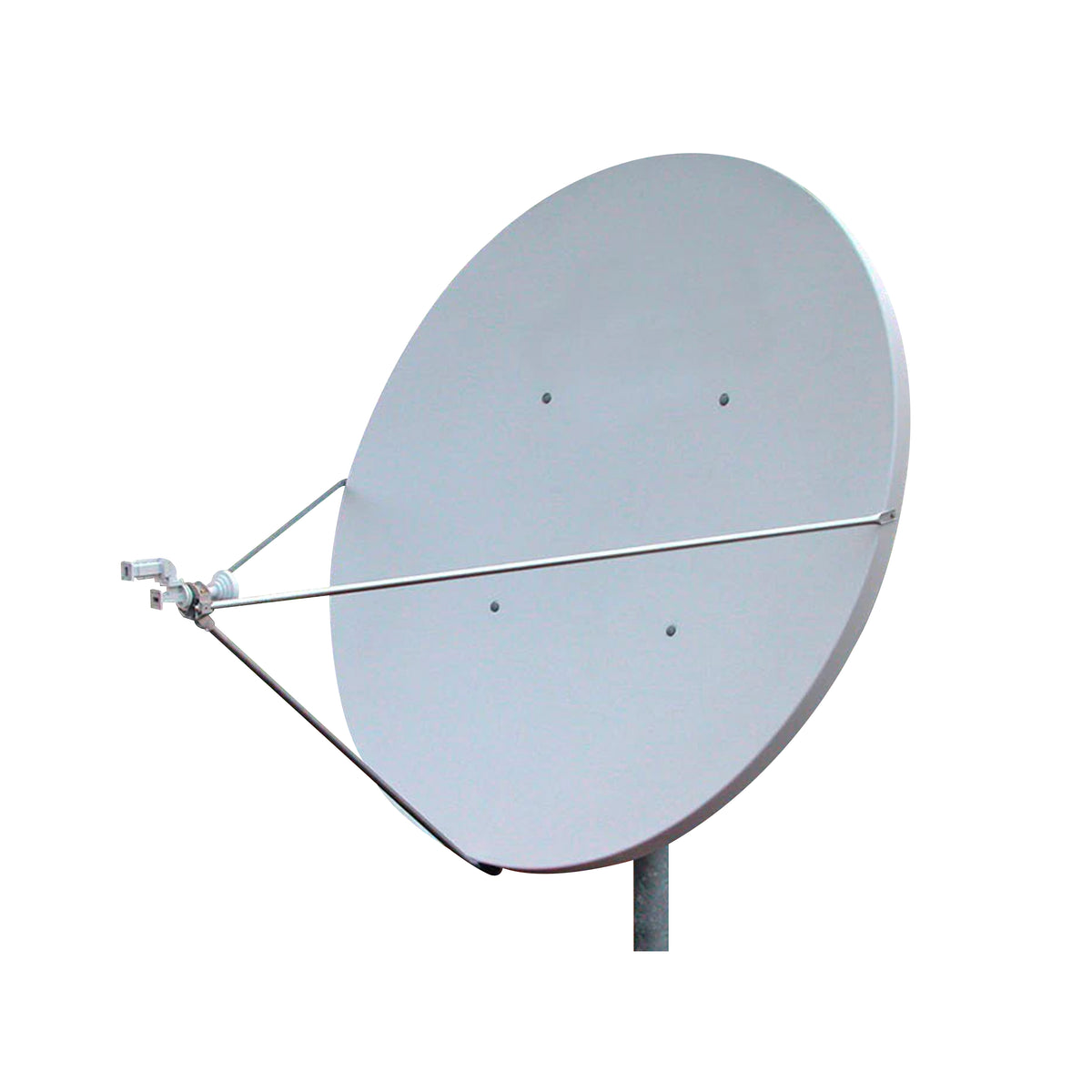

1.8M Receiver Transmitter (Rx/Tx) Class I Antenna System

The 1.8 m Class I RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into... Read full description

SKU: 183 C I

Categories: SATCOM

The 1.8 m Class I RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. Hot-dip galvanizing is standard for maximum environmental protection.

The  Type 180 antenna will only hold 4.5 lbs regardless of Ku band or C band.

Features:

  • ISO 9001:2008 Certificate of Registration
  • All materials comply with EU directive No. 2011/65/EC (RoHS)
  • One-piece precision offset thermoset-molded reflector
  • Single bolt fine elevation adjustment
  • Galvanized 19 mm (.75”) O.D. feed support legs
  • Available with C Band or Ku Band feeds
  • Hot dip galvanized Az/El mount
  • Plated hardware for maximum corrosion resistance
  • RF tested feed assembly

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.8M Receiver Transmitter (Rx/Tx) Class I Antenna System specifications.

Type-180-1.8m-RxTx-Class-1-Antenna_REV-3.pdf
