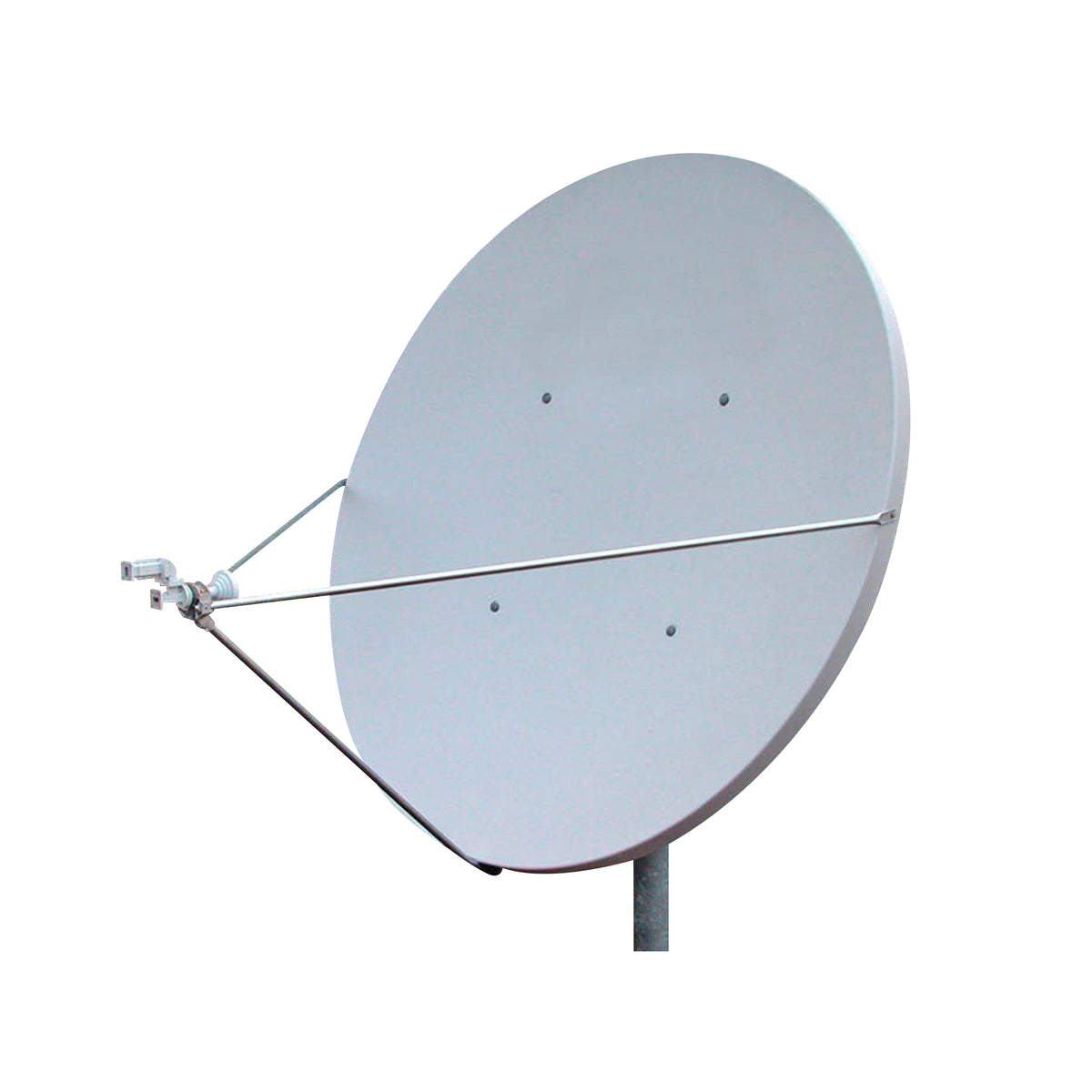

1.8m SFL Receiver Transmitter (RxTx) Antenna

The 1.8m BSS Band Antenna SFL RxTx Class I is a rugged, commercial quality product suitable for the most demanding applications. The reflector is constructed from glass fibre reinforced polyester... Read full description

SKU: 180 BSS

Categories: SATCOM

Description Specifications Enquire

The 1.8m BSS Band Antenna SFL RxTx Class I is a rugged, commercial quality product suitable for the most demanding applications.

The reflector is constructed from glass fibre reinforced polyester [SMC] for strength and accuracy. A proprietary process developed insures high RF reflectivity as needed for Ku Band operation.

The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error. This Az/EI allows the antenna to be installed on standard (114mm) 4.50” OD installation mounts.

All hardware is plated to 720 hour salt spray standards under ASTM B-117.

Features:

One-piece precision SMC Reflector
Excellent Transmitter Port-to-Port Isolation of 80dB or better
Cross-Polarization Isolation of 30dB on axis
Precision Az/EI Mount
Fine Azimuth and Elevation adjustment features
All materials comply with EU Directive No. 2002/95/EC (RoHS)
Standard waveguide flange interface
Meets or exceeds regulator agency requirements

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.8m SFL Receiver Transmitter (RxTx) Antenna specifications.

Type-180-1.8m-BSS-Band-Antenna-SFL-RxTx-Class-I_REV-1.pdf
