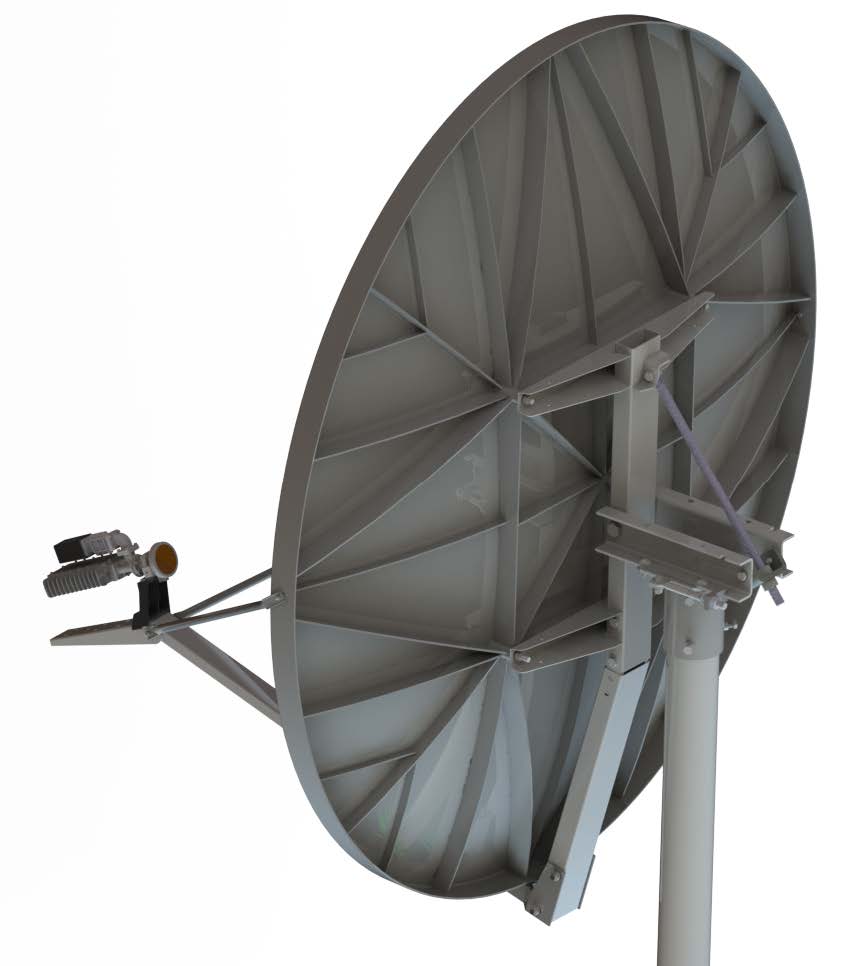

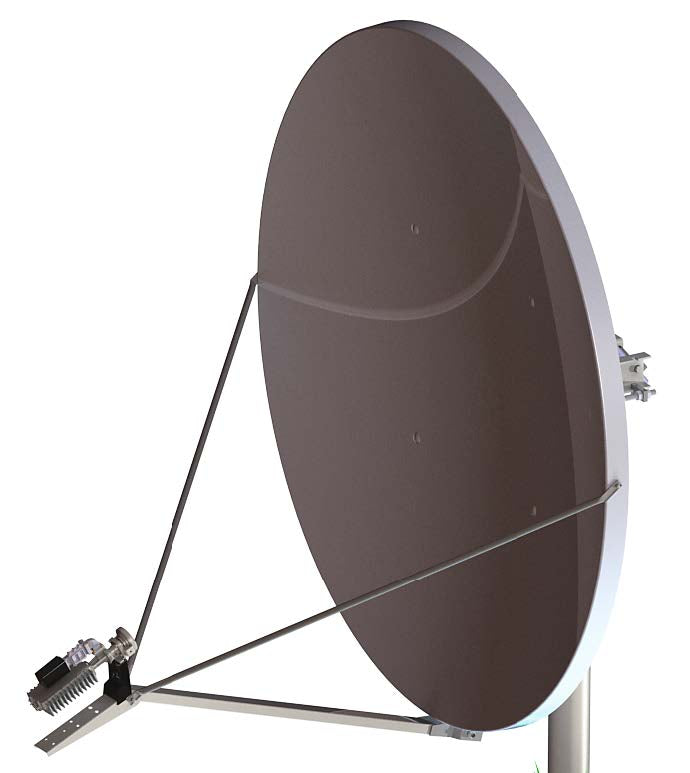

1.8m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed

The 1.8m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed is a rugged commercial grade product suitable for the most demanding applications. The... Read full description

SKU: 185

Categories: SATCOM

The 1.8m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed is a rugged commercial grade product suitable for the most demanding applications.

The Antenna features a unique feed which provides cross-pol performance that exceeds instudtry standards. The reflector is constructed from glass fiber reinforced polyester for strength and accuracy. A  proprietary process ensures high RF reflectivity as needed for Ku-Band operation. The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error. This Az/El allows the antenna to be installed on standard (114mm) [4.50”] OD installation mounts.

All hardware is plated to 720 hour salt spray standards tested in accordance with ASTM B-117.

Features:

  • TX Cross-Polarization Isolation of 29dB within 1dB contour.
  • Excellent Tx Port-to-Port Isolation of 90dB or better.
  • Meets or exceeds regulator agency requirements.
  • Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC) with <16W installed power. (BUC support kit may be required depending on application.)
  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • One-piece precision thermoset-molded reflector.
  • Precision Az/El mount.
  • Fine Azimuth and elevation adjustments.
  • Standard Waveguide Flange Interface.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 1.8m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed specifications.

1.8m-Type-185-Ku-RT-Class-III-Spec.pdf?v=1618844613
