10/100 Base Ethernet Module
Categories:
RF over Fibre (RFoF)
Our 10/100 Base Ethernet Module brings fast Ethernet capability to our Sat-Light systems. Using only one single-mode optical fibre, the unit transmits either 10Base or 100Base data over distances u...
More Information

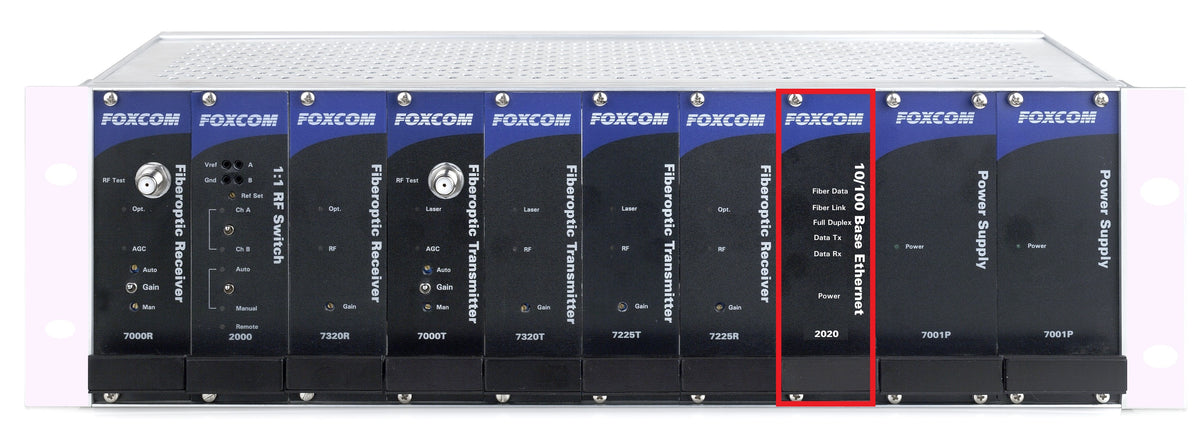

Our 10/100 Base Ethernet Module brings fast Ethernet capability to our Sat-Light systems. Using only one single-mode optical fibre, the unit transmits either 10Base or 100Base data over distances up to 20 kilometers. Model 2020A transmits at 1310 nm, while Model 2021A transmits at the 1550 nm window.
This easy to install, plug-and-play media converter set complies with IEEE802.3 standards, and supports full duplex and half duplex communications with auto negotiation on both the fibre and twisted pair media. An RJ-45 interfaces to the twisted pair, while a single SC type connector interfaces to the optical fibre path. The 2020 set also supports MDI/MDI-X auto crossover, eliminating the need for elusive crossover cables.
| RF Specification | Value |
|---|---|
| Plug In Dimensions | 5.1 x 4.9 x 1.6 (W x L x D) inches |
| Data Support | 10BaseT / 100BaseT |
| Twisted Pair Connector | RJ -45 |
| Operating Wavelength | 1310 or 1550 nm |
| Max. Operating Fiber Length | 20 km |
| Fiber Compatibility | Single Mode |
For more details and prices please use the product enquiry form or contact our sales team.
Specifications
Download the 10/100 Base Ethernet Module specifications.
