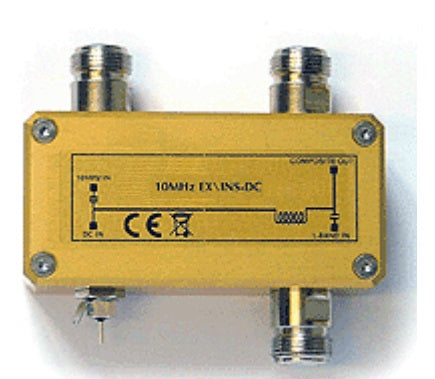

10MHz Extractor / Inserter DCI

The 10MHz Extractor / Inserter is used to extract, and/or Insert a 10MHz reference signal and DC onto an L-Band path in VSAT systems. RF Specification Value Frequency Range -... Read full description

SKU: FOX-V-EXIN/PN-DCI

Categories: Global Professional

Description Specifications Enquire

The 10MHz Extractor / Inserter is used to extract, and/or Insert a 10MHz reference signal and DC onto an L-Band path in VSAT systems.

RF Specification	Value
Frequency Range - Bandwidth	950 – 2150MHz
L-Band Insertion Loss	<1dB
L Band Return Loss	>15dB
10MHz Insertion Loss	<0.5dB
10MHz Rejection	>90dB
Max DC Voltage	75V
Max DC Current	4 Amps
