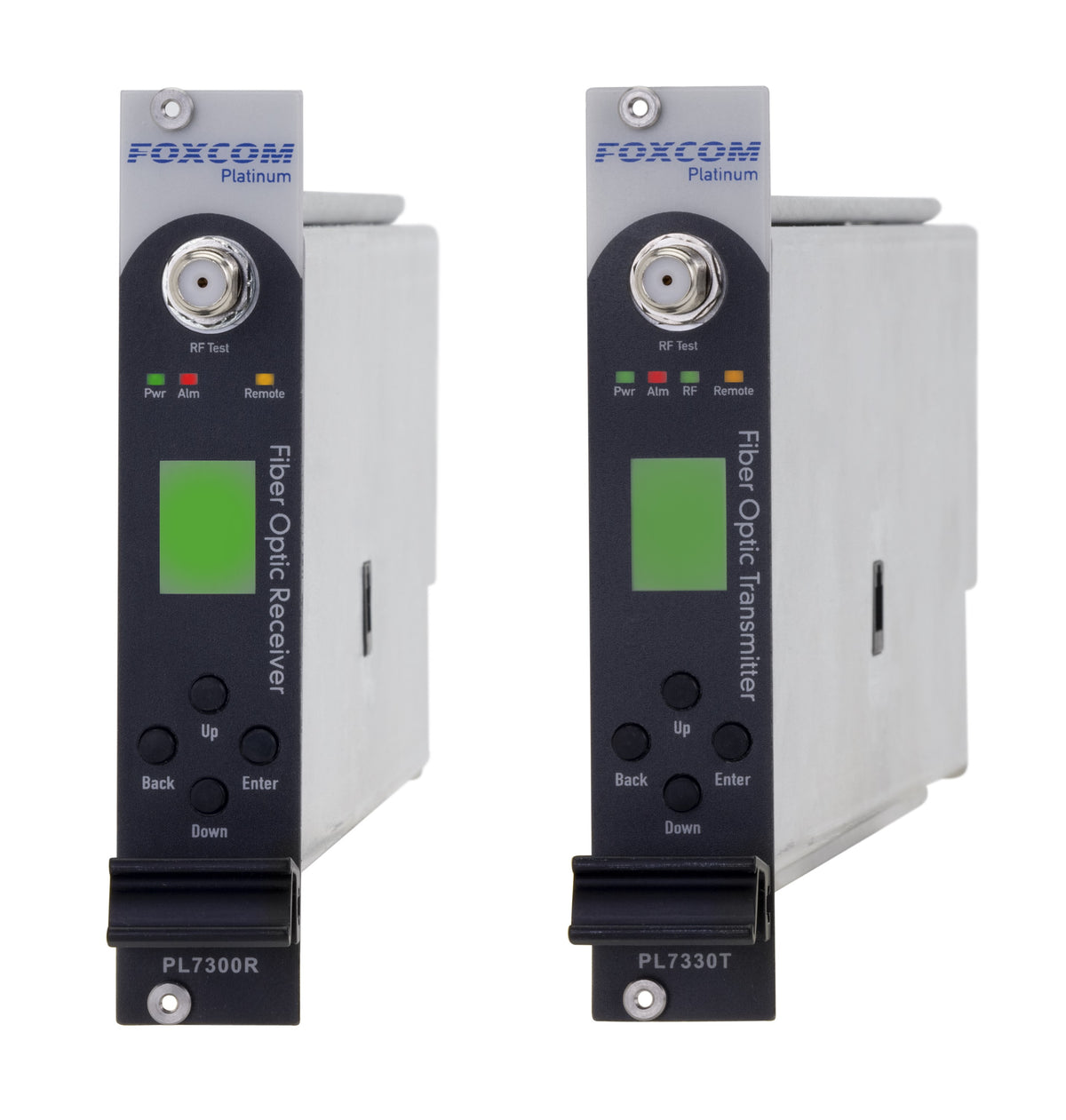

10MHz Reference Signal RF Link 20 dB - Transmitter and Receiver

Our Platinum 10MHz card is designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission.  With high RF input power and... Read full description

SKU: PL7130T1550 / PL7130R20-1

Categories: Electronics

Description

Our Platinum 10MHz card is designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission.

 With high RF input power and wide dynamic range, the link is designed to provide full specification service up to a full 20dB optical budget with the R20 receiver.

Utilizing our DigiRF technology, the user has full control of all important functions for setup, operation, and analysis via the front panel LCD or via the associated sub-rack SNMP capability.

Each low profile individual transmitter or receiver can be “hot swapped” in the chassis maintaining a best subsystem uptime capability. Each module contains an individual processor to maximize specification performance at all times under demanding user applications.

The PL7130T1550 transmitter and PL7130R20 receiver are designed for sub-rack chassis mounting. The associated Platinum chassis, model PL7010, has 12 active slots, one main control processor (MCP) slot and two redundant power supplies. No fans are required.

Its features include:
  • Designed to transfer 10MHz reference sine signals
  • Equipped with 2nd harmonic filter to improve performances
  • Powerful management capabilities via a front panel LCD and rack mounted SNMP
  • Variety of RF and optical connectors
  • More than 70km distance
RF Specification Value
Frequency Range - Bandwidth 10MHz
Amplitude Response @ Unity Gain ±2dB
Noise Figure 58dB
Input Signal Range - Total Power 0 to -25dBm
RF Output Signal Range - Total Power 5 to -25dBm
Optical Specifications
Optical Budget / Distance 1310nm 1550nm 20dB / 40Km



For more details and prices please use the product enquiry form or contact our sales team.
