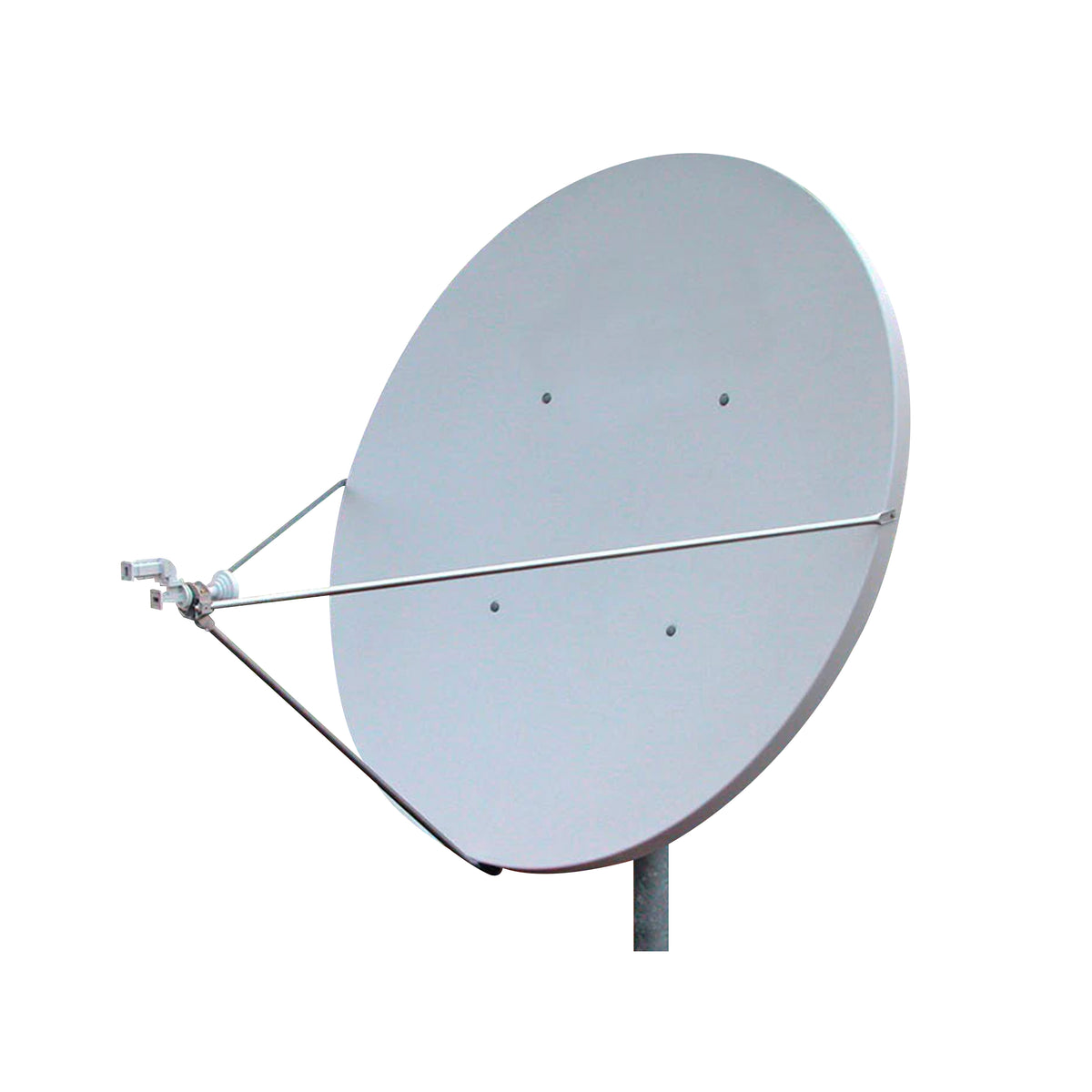

1m Ku Band Receiver Transmitter (Rx/Tx) Antenna System

The 1m Class I RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-moulded for strength and surface accuracy. Moulded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary parabolic shape.

The A z/El mount secures the antenna to either a 60mm (2.38”) or 73-76mm (2.88”-3.00”) O.D. mast and prevents slippage in high winds.

A specially formulated powder paint process offers excellent protection from weather-related corrosion.

Features:

• ISO 9001:2008 Certificate of Registration
• Factory pre-assembled Az/El mount
• All materials comply with EU directive No. 2011/65/EC (RoHS)
• One-piece thermoset-moulded reflector
• Single bolt fine elevation adjustment
• Galvanized 19 mm (.75”) O.D. feed support legs
• Available with a wide variety Ku Band feeds
• Plated hardware for maximum corrosion resistance

For more details and prices please use the product enquiry form or contact our sales team.

Download the 1m Ku Band Receiver Transmitter (Rx/Tx) Antenna System specifications.

1m_Ku_Band_Receiver_Transmitter_RxTx_Antenna_System.pdf
