2.4m Extended Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System

The 2.4m Extended Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System is a rugged commercial grade product suitable for the most demanding applications. The reflector is constructed from... Read full description

SKU: 243 ext III

Categories: SATCOM

Description Specifications Enquire

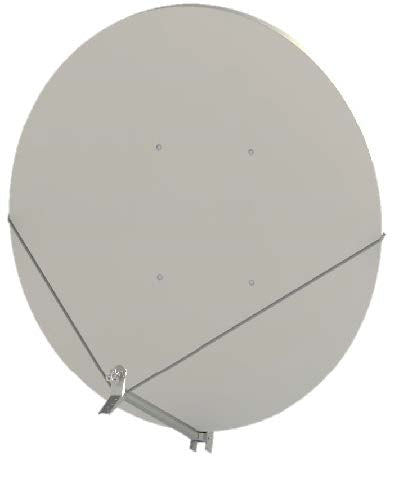

The 2.4m Extended Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System is a rugged commercial grade product suitable for the most demanding applications.

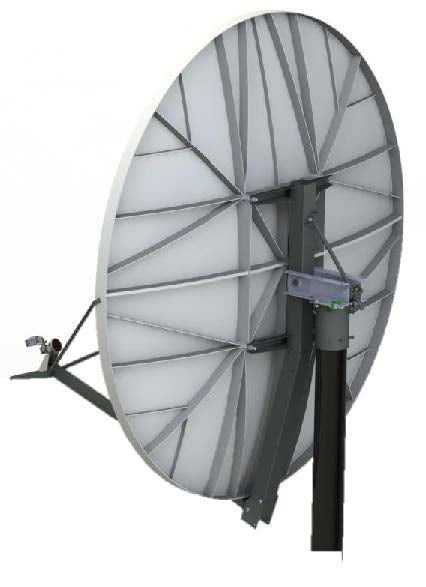

The reflector is constructed from glass fibre reinforced polyester for strength and accuracy. A proprietary process ensures high RF reflectivity as needed for Ku-Band operation. The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error. This Az/El allows the antenna to be installed on standard (168mm) [6.63”] OD installation mounts.

All hardware is plated to 720 hour salt spray standards tested in accordance with ASTM B-117.

Features:

Cross-Polarization Isolation of 30dB on axis.
Excellent Tx Port-to-Port Isolation of 90dB or better.
Meets or exceeds regulator agency requirements.
Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC) with <16W installed power. (BUC support kit may be required depending on application.)
All materials comply with EU directive No. 2002/95/EC (RoHS).
ISO 9001:2008 Certified
Eutelsat Certificate No. EA-V066
One-piece precision thermoset-molded reflector.
Precision Az/El mount.
Fine Azimuth and elevation adjustments.
Standard Waveguide Flange Interface

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 2.4m Extended Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System specifications.

2.4m_Extended_Ku_Band_Receiver_Transmitter_RxTx_SFL_Class_III_Antenna_System.pdf
