2.4m Ku Band Receiver Transmitter (Rx/Tx) Class III Antenna System

The 2.4 m Class III RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into... Read full description

SKU: 62-2435611

Categories: SATCOM

Description Specifications Enquire

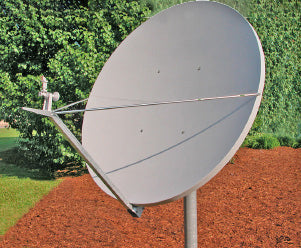

The 2.4 m Class III RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 168 mm (6.63”) O.D. mast and prevent slippage in high winds. Hot-dip galvanizing is standard on this model for maximum environmental protection.

Heavy-duty Class III mount for 11 kg (25 lb) RF electronics Low Noise Block (LNB) & Block Up Converter (BUC).

Features:

All materials comply with EU directive No. 2011/65/EC (RoHS).
Two-piece precision offset thermoset-molded reflector.
Heavy-duty galvanized Az/El mount. Marinised version includes 2 part epoxy paint finish.
Fine Azimuth and elevation adjustments.
HD Galvanised support arm and alignment struts. Marinised version has all galvanized steel components finished with 2 part epoxy paint.
Factory pre-assembled mount.
Plated hardware for maximum corrosion resistance. Optional marinised version uses marine grade AISI 316 stainless steel hardware throughout.
Includes Ku-band linear cross-polarized RxTx feed assembly.
RF tested Ku band linear polarised feed assembly.
Type approval for use on Intelsat satellite system

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 2.4m Ku Band Receiver Transmitter (Rx/Tx) Class III Antenna System specifications.

2.4m_Ku_Band_Receiver_Transmitter_RxTx_Class_III_Antenna_System.pdf
