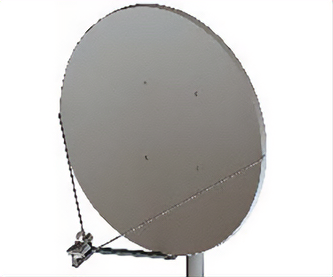

2.4m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed

The 2.4m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed is a rugged commercial grade product suitable for the most demanding applications. The... Read full description

SKU: 245

Categories: SATCOM

Description Specifications Enquire

The 2.4m Standard Ku Band Receiver Transmitter (Rx/Tx) SFL Class III Antenna System with Mode Matched Feed is a rugged commercial grade product suitable for the most demanding applications.

The Antenna features a unique feed which provides cross-pol performance that exceeds instudtry standards. The reflector is constructed from glass fiber reinforced polyester for strength and accuracy. A proprietary process ensures high RF reflectivity as needed for Ku-Band operation. The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error. This Az/El allows the antenna to be installed on standard (168mm) [6.63”] OD installation mounts.

All hardware is plated to 720 hour salt spray standards tested in accordance with ASTM B-117.

Features:

TX Cross-Polarization Isolation of 31dB within 1dB contour.
Excellent Tx Port-to-Port Isolation of 90dB or better.
Meets or exceeds regulator agency requirements.
Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC) with <16W installed power. (BUC support kit may be required depending on application.)
All materials comply with EU directive No. 2002/95/EC (RoHS).
ISO 9001:2008 Certified
Eutelsat Certificate No. EA-V066
Two-piece offset precision thermoset-molded reflector.
Precision Az/El mount.
Fine Azimuth and elevation adjustments.
Standard Waveguide Flange Interface

For more details and prices please use the product enquiry form or contact our sales team.
