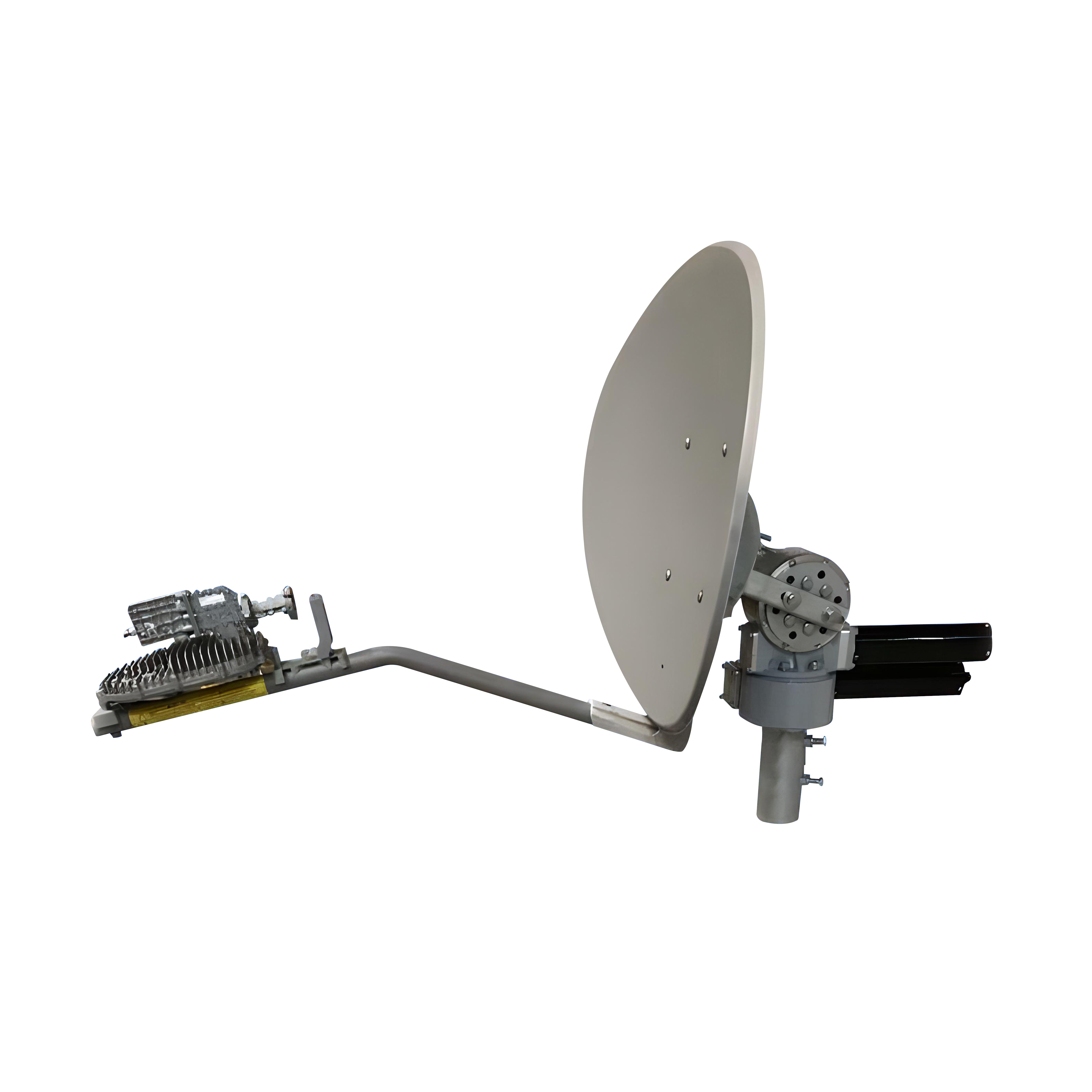

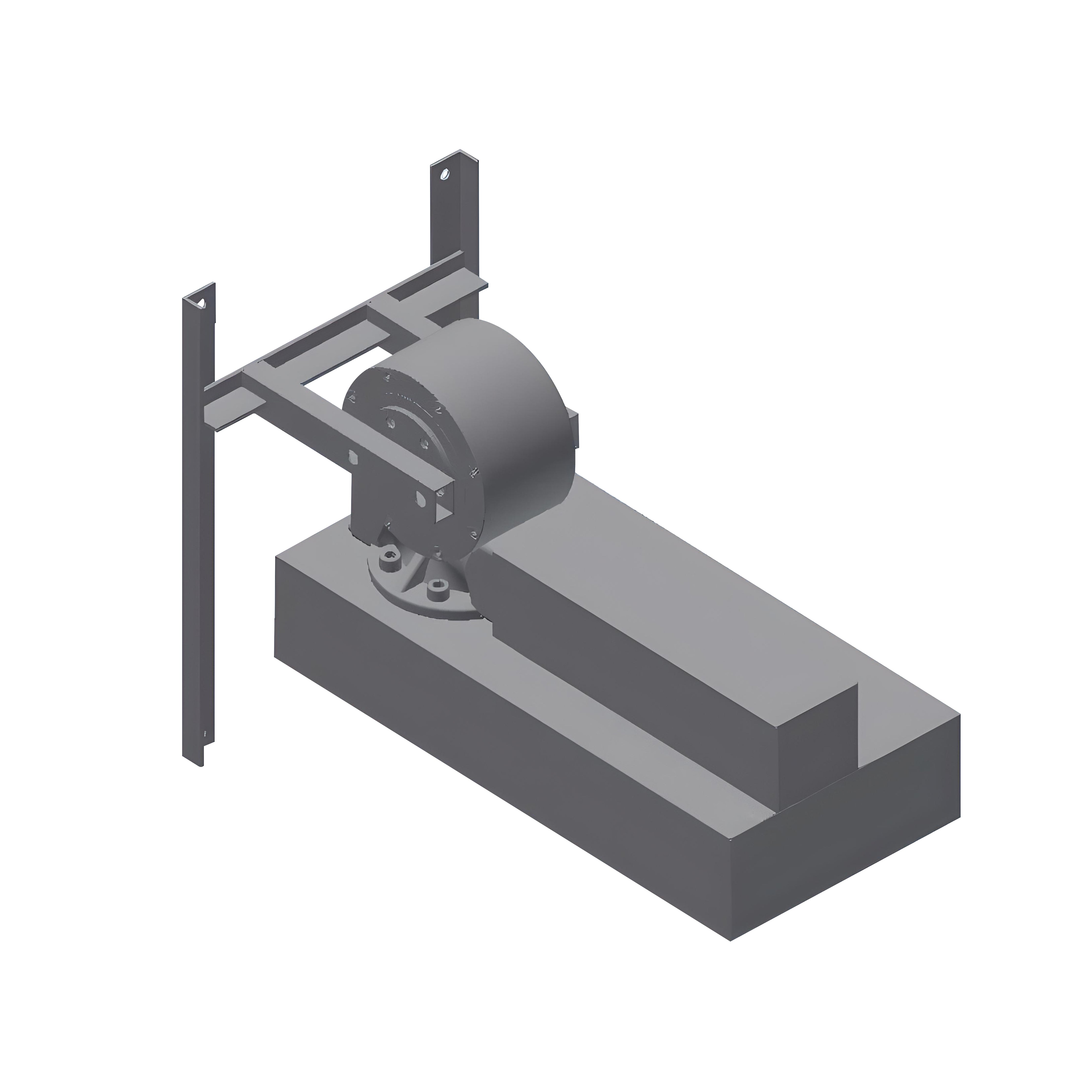

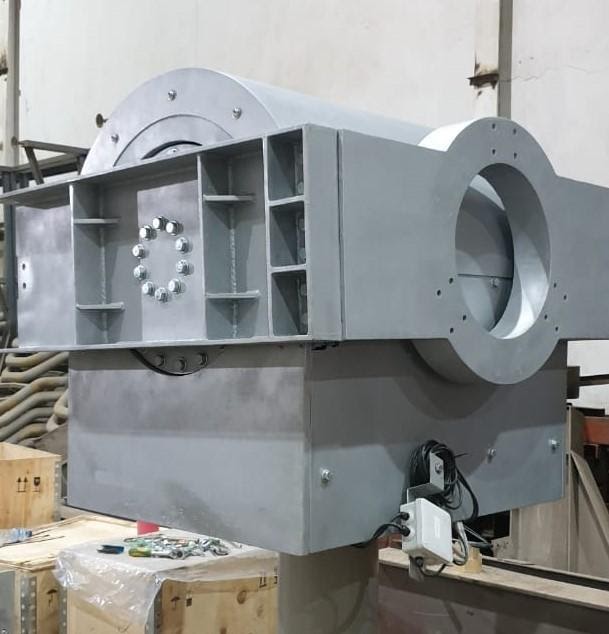

2 Axis Compact Dual Drive Positioner

Our 2 axis dual drive motorization systems are for any 0.75m to 1.2m Offset and Central fed antenna in C band, Ku band and Ka band.

Features:

• Dual Drive Design – Elevation drive over Azimuth Drive
• Azimuth travel range up to 360° Elevation up to 180°
• Angular speeds up to 10 degrees per second
• Hot-dip galvanized steel structure
• High precision Motor & Resolver
• Optional Polarization Motorization available
• DC/BLDC Motors with Encoders

Available with canister of standard Pipes/Non-penetrating Roof Mounts (NPRM) or with Flange for flanged stands.

This is suitable for any Receiver Transmitter (RxTx) and Receive Only (RxO) applications, broadband and broadcasting, news gathering and telecoms.

These positioner models are available for the following antennas sizes:

• 0.75m
• 0.96m
• 1.2m
• 1.8m
• 2.4m
• 3.7m
• 3.8m
• 4.5m

Options available for your set up include:

• 3rd Axis  – Polarization Motorization
• APS700 Antenna Control Unit
• APS710 Antenna Control Unit with integrated Spectrum analyzer/Tracking Receiver
• Kingpost

For more details and prices please use the product enquiry form or contact our sales team.

Download the 2 Axis Compact Dual Drive Positioner specifications.

0.75-2.4m_Two_Axis_Positioner.pdf

3.0-4.5m_Two_Axis_Positioner.pdf
