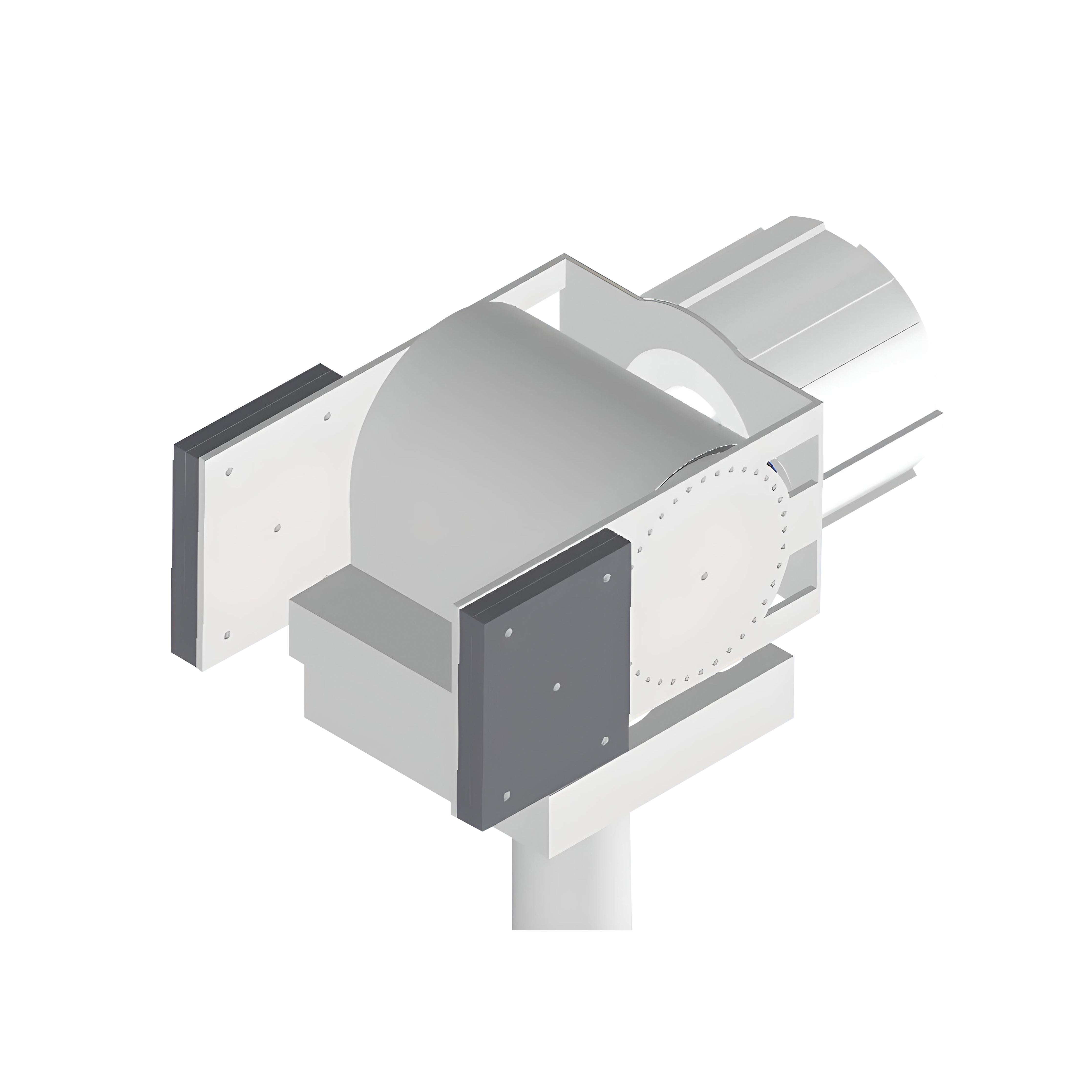

2 Axis Compact Triple Drive Positioner

Our 2 axis triple drive motorization systems are for Offset and Central fed antenna in C band, Ku band and Ka band.

Features:

• Azimuth travel range up to 360° Elevation up to 180°
• Extended Elevation Range,
• Compact Design,
• Counterweight for system balance.
• Azimuth Dual Slew Drive with 2 entangled Servomotors,
• 2 Elevation drives with interconnected Servomotors,
• APS700 Antenna Control Unit

Available with Canister of standard Pipes/Non-penetrating Roof Mounts (NPRM) or with Flange for flanged stands.

This is suitable for any Receiver Transmitter (RxTx) and Receive Only (RxO) applications, broadband and broadcasting, news gathering and telecoms.

These positioner models are available for the following antennas sizes:

• 4.5m
• 5.3m
• 6.2m
• 7.3m
• 9.0m

Options available for your set up include:

• 3rd Axis  – Polarization Motorization
• APS700 Antenna Control Unit
• APS710 Antenna Control Unit with integrated Spectrum analyser/Tracking Receiver

For more details and prices please use the product enquiry form or contact our sales team.

Download the 2 Axis Compact Triple Drive Positioner specifications.

4_5-9_0m_Compact_Triple_Drive_Positioner.pdf
