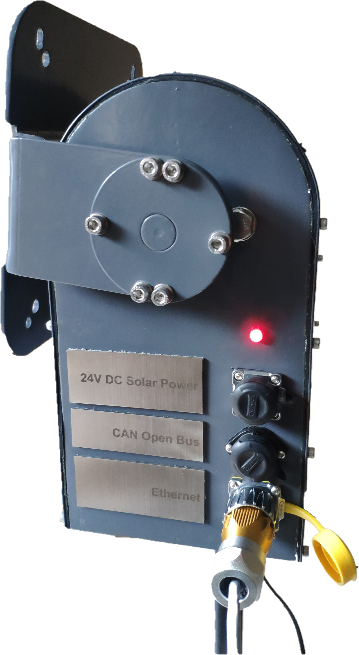

2 Axis High Performance Positioner

Our 2 axis high performance motorization systems are for Offset and Central fed antenna in C band, Ku band and Ka band. Features: 2 Axis High Precision High Speed Positioner... Read full description

SKU: 2 axis high performance

Categories: SATCOM

Select Size

Description Specifications Enquire

Our 2 axis high performance motorization systems are for Offset and Central fed antenna in C band, Ku band and Ka band.

Features:

2 Axis High Precision High Speed Positioner
0.01° Precision
up to 30°/sec speed
Extended Elevation Range
Compact Design
Counterweight for system balance
Azimuth travel range 360° continuous,
Elevation 180° continuous,
Azimuth & Elevation High Precision Robotic Drives with BLDC or AC Servomotors
APS700 Antenna Control Unit

Available with Canister of standard Pipes/Non-penetrating Roof Mounts (NPRM) or with Flange for flanged stands.

This is suitable for UAV Pointing, positioning for LEO & MEO terminals, Ka & Q/V band applications, Receiver Transmitter (RxTx) and Receive Only (RxO) applications, broadband and broadcasting, news gathering and telecoms.

These positioner models are available for the following antennas sizes:

0.75m
0.96m
1.2m
1.8m
2.4m
3.7m
3.8m
4.5m
5.3m

Options available for your set up include:

3rd Axis – Polarization Motorization
APS700 Antenna Control Unit
APS710 Antenna Control Unit with integrated Spectrum analyser/Tracking Receiver
Kingpost

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 2 Axis High Performance Positioner specifications.

0_75_2_4m_High_Performance_Positioner.pdf

3_0-5_3m_High_Performance_Positioner.pdf
