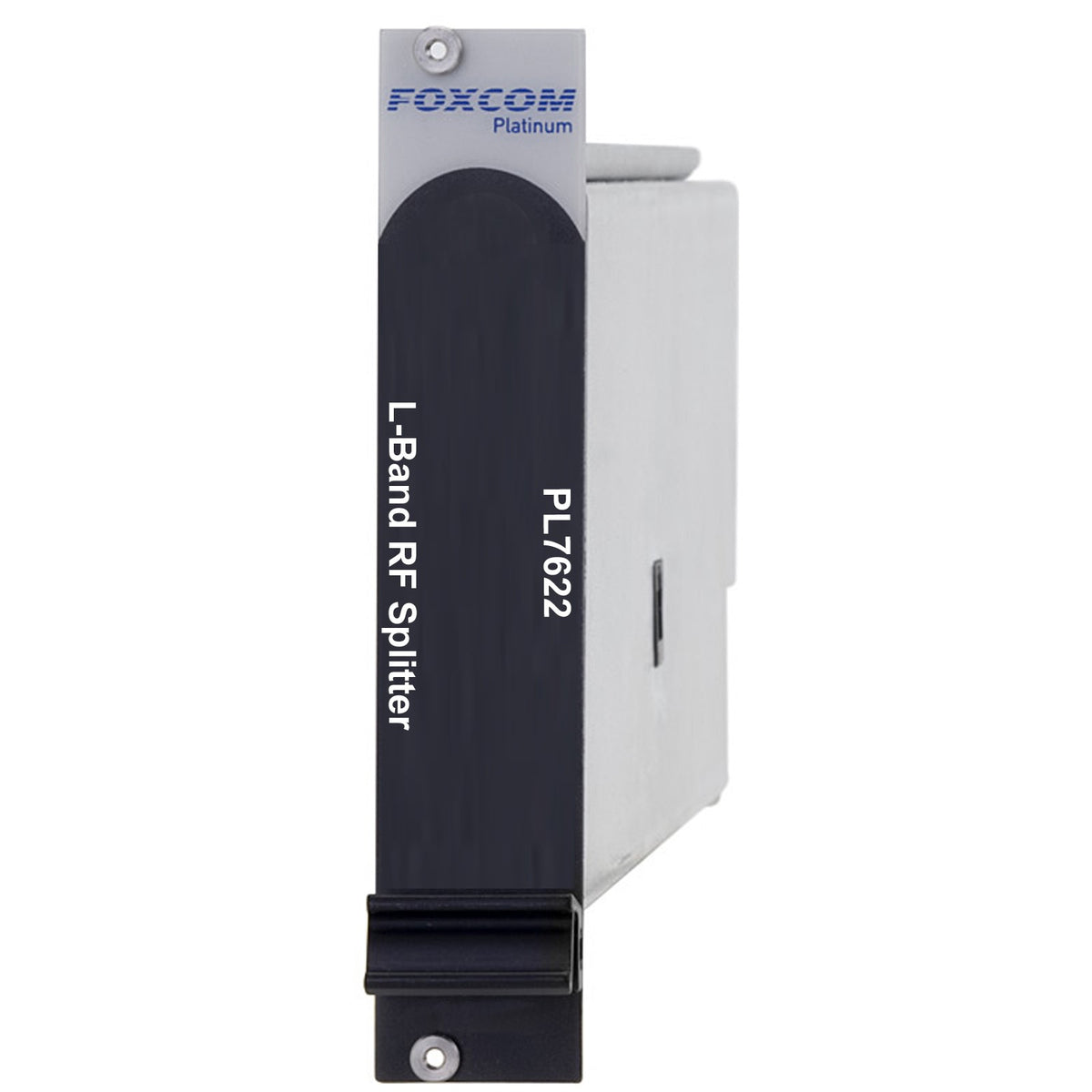

2 Way L-Band RF Splitter/Combiner

The L-Band RF splitter PL7622 is a high performance passive 2 way L-Band RF splitter/combiner. It supports dual port DC passing capabilities, needed for a redundant Low Noise Block (LNB)... Read full description

SKU: PL7622

Categories: SATCOM

Description Specifications Enquire

The L-Band RF splitter PL7622 is a high performance passive 2 way L-Band RF splitter/combiner.

It supports dual port DC passing capabilities, needed for a redundant Low Noise Block (LNB) powering configuration.

It reduces cable connector failures and greatly improves cable management.

RF Specification	Value
Frequency Range - Bandwidth	950 – 2400 MHz
Ripple [in band]	±0.4dB
Input/Output Return Loss	-11dB
Operating Temperature Range	-10 to +55
Storage Temperature Range	-45 to +85

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 2 Way L-Band RF Splitter/Combiner specifications.

PL7622_L-Band_RF_SplitterCombiner_v1_GF.pdf
