2 Way Wideband RF Splitter/Combiner
Categories:
RF over Fibre (RFoF)

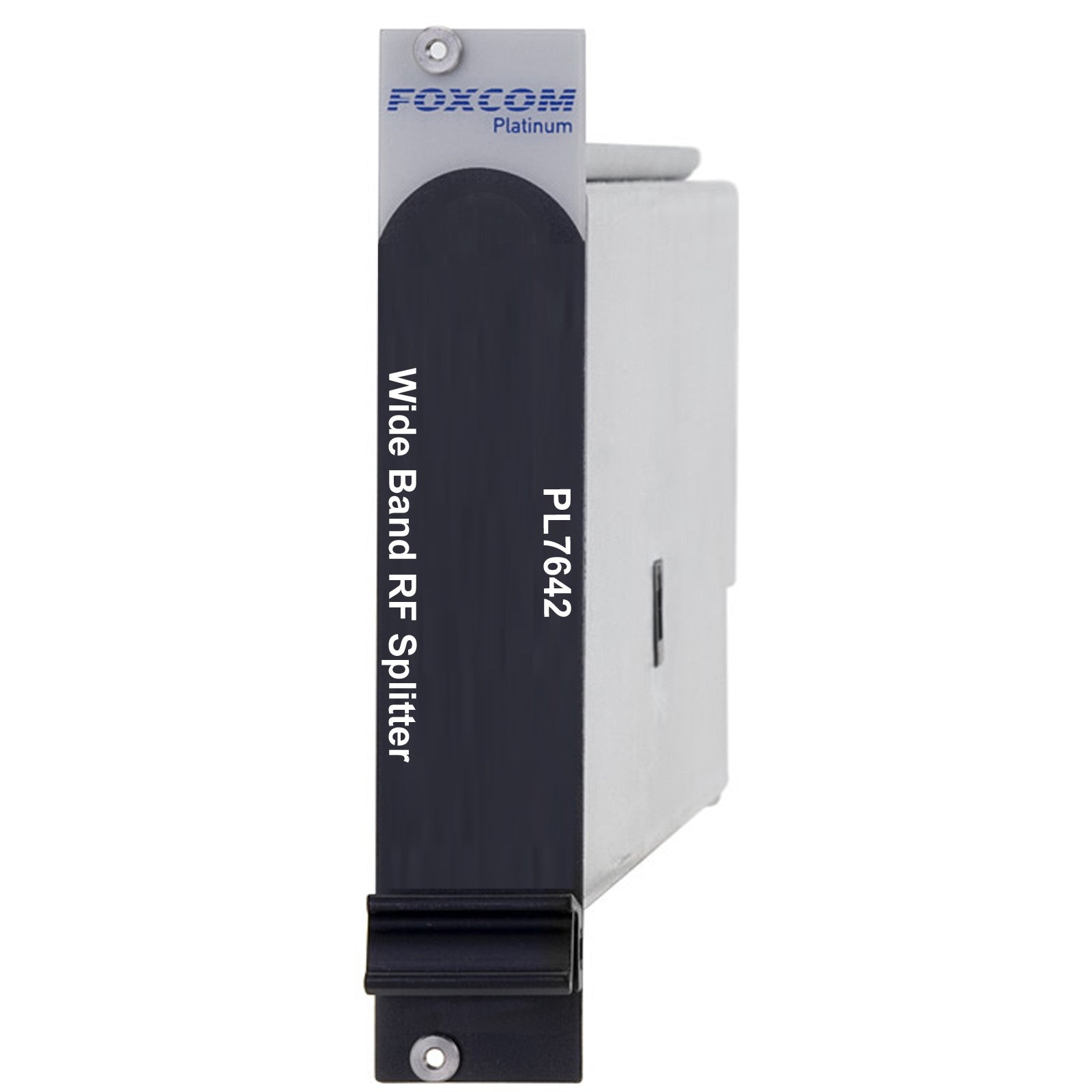

The 2 Way Wideband RF Splitter/Combiner PL-7642 is a high performance, passive, 2 way WideBand RF splitter/combiner.
More Information
The 2 Way Wideband RF Splitter/Combiner PL-7642 is a high performance, passive, 2 way WideBand RF splitter/combiner.
The PL7642 supports dual port DC passing capabilities, needed for a redundant Low Noise Block (LNB) powering configuration.
It reduces cable connector failures, has DC passing and greatly improves cable management.
| RF Specification | Value |
|---|---|
| Frequency Range - Bandwidth | 10 – 2400 MHz |
| Insertion Loss 10-950 MHz | 3.8dB |
| Insertion Loss 950-2400 MHz | 4.2dB |
| Isolation 10-950 MHz | 18dB |
| Isolation 950-2400 MHz | 15dB |
| Ripple [in band] 10-950 MHz | ±0.6dB |
| Ripple [in band] 950-2400 MHz | ±1dB |
For more details and prices please use the product enquiry form or contact our sales team.
Specifications
Download the 2 Way Wideband RF Splitter/Combiner specifications.
