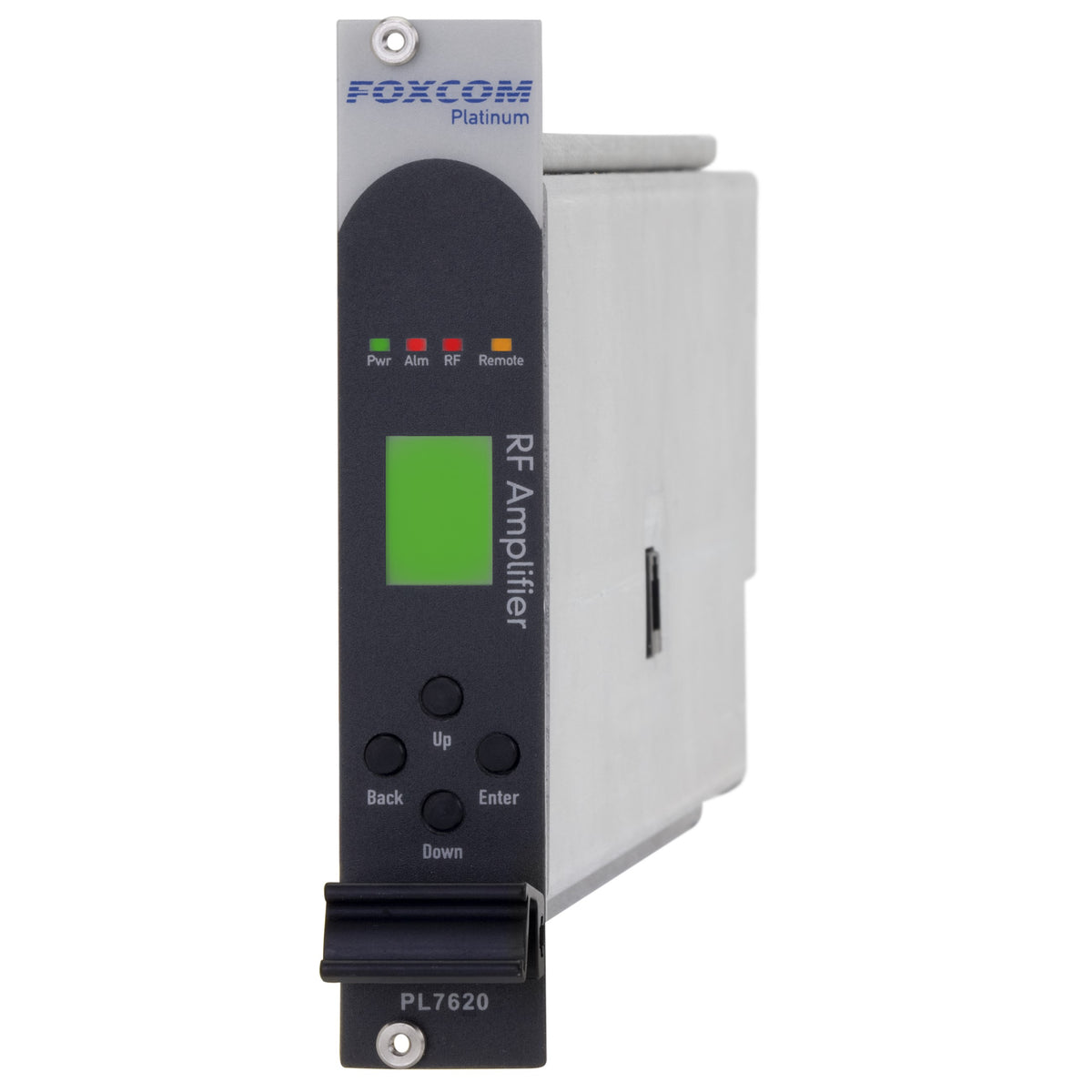

28dB Gain RF Amplifier

Name: 28dB Gain RF Amplifier
Brand: Global Invacom Group
SKU: PL7620
Availability: InStock

SKU: PL7620

The 28dB Gain RF Amplifier PL7620 provides the capability to integrate a pre- or post-amplifier as a part of the IFL system. Using an RF Amplifier allows a full system solution wit...

Read full description

More Information

The 28dB Gain RF Amplifier PL7620 provides the capability to integrate a pre- or post-amplifier as a part of the IFL system. Using an RF Amplifier allows a full system solution with guaranteed overall system performance over long distances.

Pre-amplifier the PL7620 ensures a high C/N by providing the optical transmitter with sufficient RF to optimally drive the laser
Post amplifier, the PL7620 assures a constant high signal level RF output

The PL7620 has an integral input/output RF power meter and is fully compatible with the our Sat-Light/Platinum M&C SNMP system.

It features:

Covers the entire frequency of the Sat-Light/Platinum suite [10 – 3000 MHz]
Adjustable gain [28dB maximum] via a local LCD or a SNMP card
Embedded input/output RF power meter
High output 1dB compression point +12dBm
Powerful management capabilities via a front panel LCD and rack mounted SNMP

RF Specification	Value
Frequency Range - Bandwidth	10 – 3000MHz
Amplitude Response @ Unity Gain	±1.5
Noise Figure	5dB
Output IP3 (OIP3)	25dBm
Input Signal Range - Total Power	None to -23dBm
RF Output Signal Range - Total Power	5dBm

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 28dB Gain RF Amplifier specifications.

PL7620_28dB_Gain_RF_Amplifier_v1_GF.pdf
