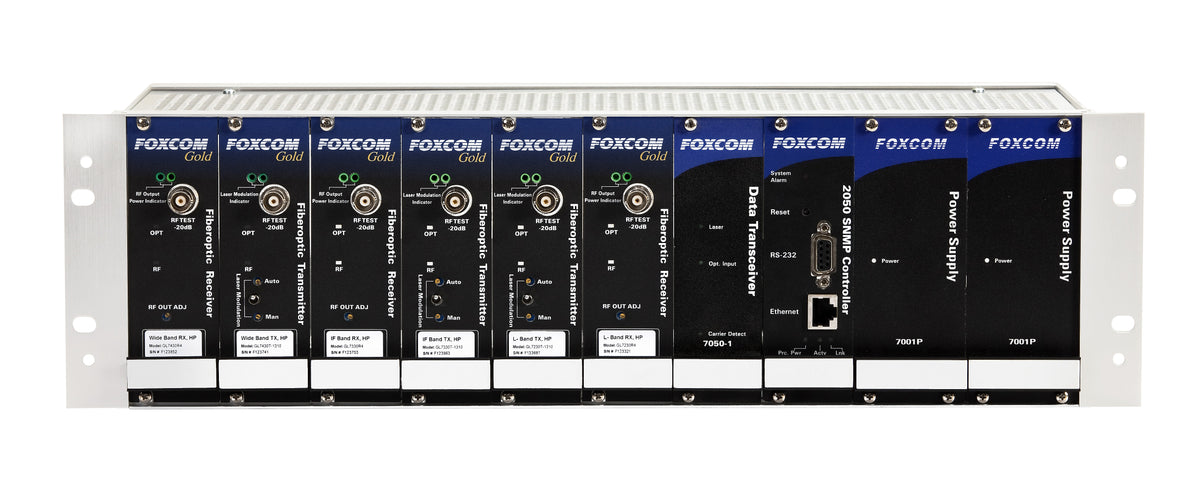

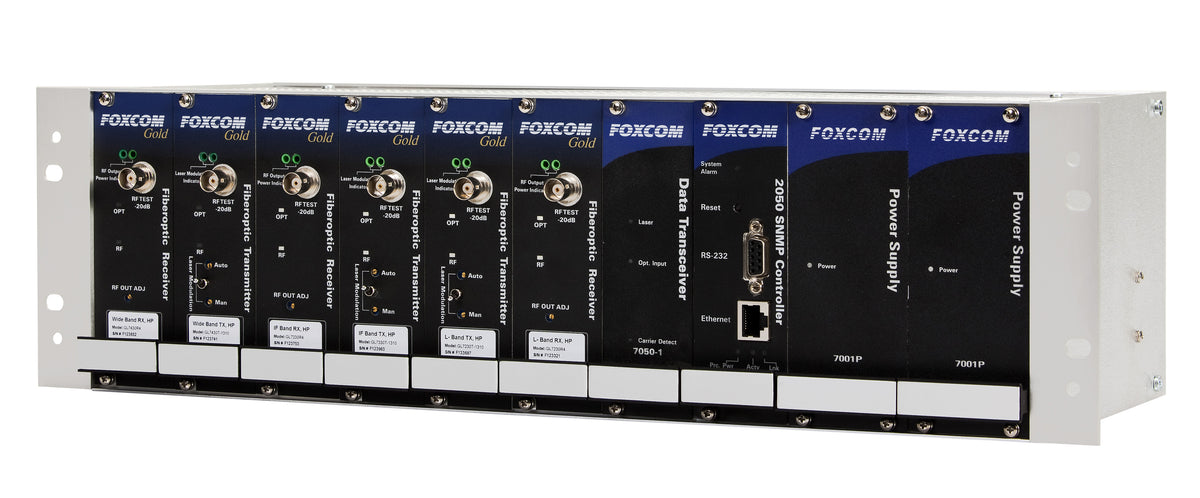

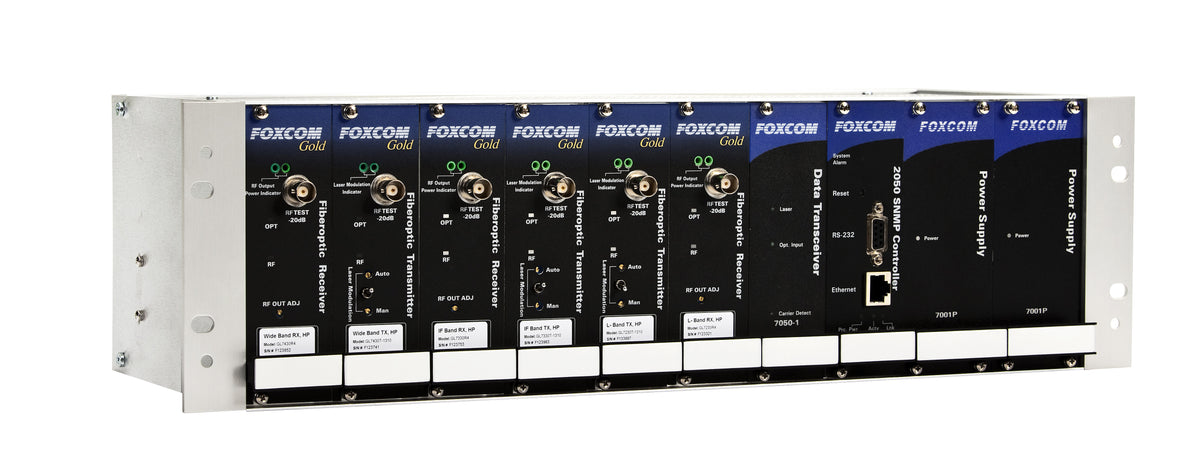

3 RU Chassis and Power Supply

We provide both chassis and standalone power supplies to be used with our Satcom fibre optic Interfacility Links (IFL). The chassis supports 8 cards, incorporating "hot swap" capabilities. The 7180M... Read full description

Categories: SATCOM

We provide both chassis and standalone power supplies to be used with our Satcom fibre optic Interfacility Links (IFL). The chassis supports 8 cards, incorporating "hot swap" capabilities. The 7180M chassis uses the 7001P switching supply.

The chassis is a standard 19 inch, 3U configuration. The chassis contains two slots located on the right side for power supplies. The standard chassis is supplied with a single power supply. An additional power supply for redundancy is optional. Each power supply is provided with a separate AC input, enabling use from different main sources.

The chassis utilizes a rigid back plane design providing a stable platform for the mounting of our IFL products. Outputs for control and monitoring are accessible via 25-pin D - connectors. The back plane design also allows for the use of an optional relay adaptor in cases where dry contact closures, versus the standard TTL open collector outputs, are preferable.

Where a chassis is not required or feasible, we provide a compact standalone power supply, capable of powering any of our IFL product.


RF Specification Value
Dimensions 19” W x 5.25” H x 7” D
Chassis Capacity 8 plug-ins
Operating temperature -10º to 60º C
Storage temperature -40º to 85º C


For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 3 RU Chassis and Power Supply specifications.

7180M_Chassis_Kit_v1_GF.pdf
