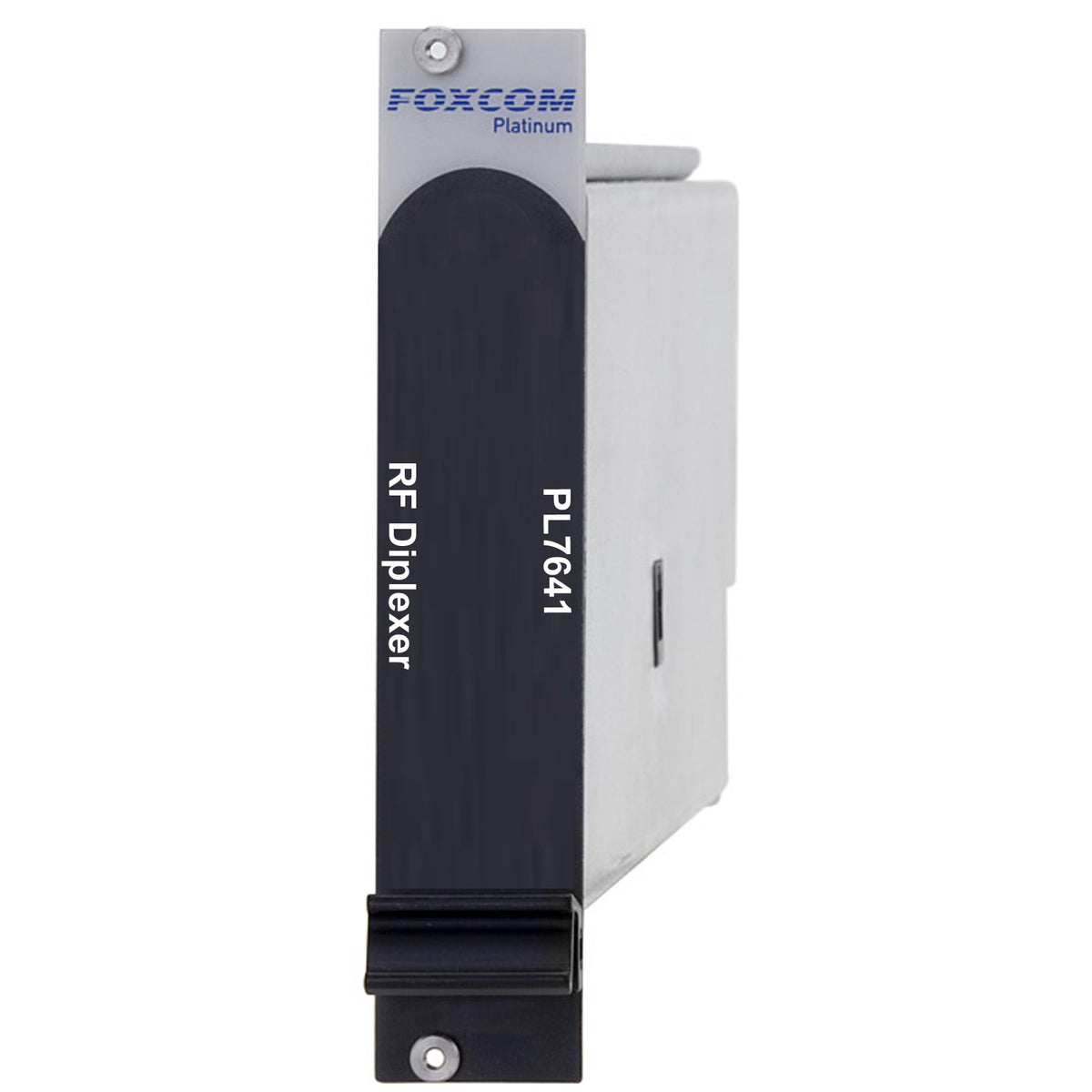

5-10MHz/L-Band Diplexer

The 5-10MHz/L-Band diplexer PL7641 is a passive unit used to separate or combine 5-10MHz reference signals to an L-Band signal. It reduces cable connector failures and greatly improves cable management.... Read full description

SKU: PL7641

Categories: SATCOM

Description Specifications Enquire

The 5-10MHz/L-Band diplexer PL7641 is a passive unit used to separate or combine 5-10MHz reference signals to an L-Band signal.

It reduces cable connector failures and greatly improves cable management.

RF Specification	Value
Frequency Range - Bandwidth	950 – 2400 MHz
Insertion Loss L-band	0.5dB
Isolation L-band to 5 /10 MHz Port	20 to 30dB
Return Loss 5 /10 MHz port	-16dB
Return Loss L-band port	-16dB
Return Loss Common port	-14dB

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 5-10MHz/L-Band Diplexer specifications.

PL7641_5-10MHzL-band_Diplexer_v1_GF.pdf
