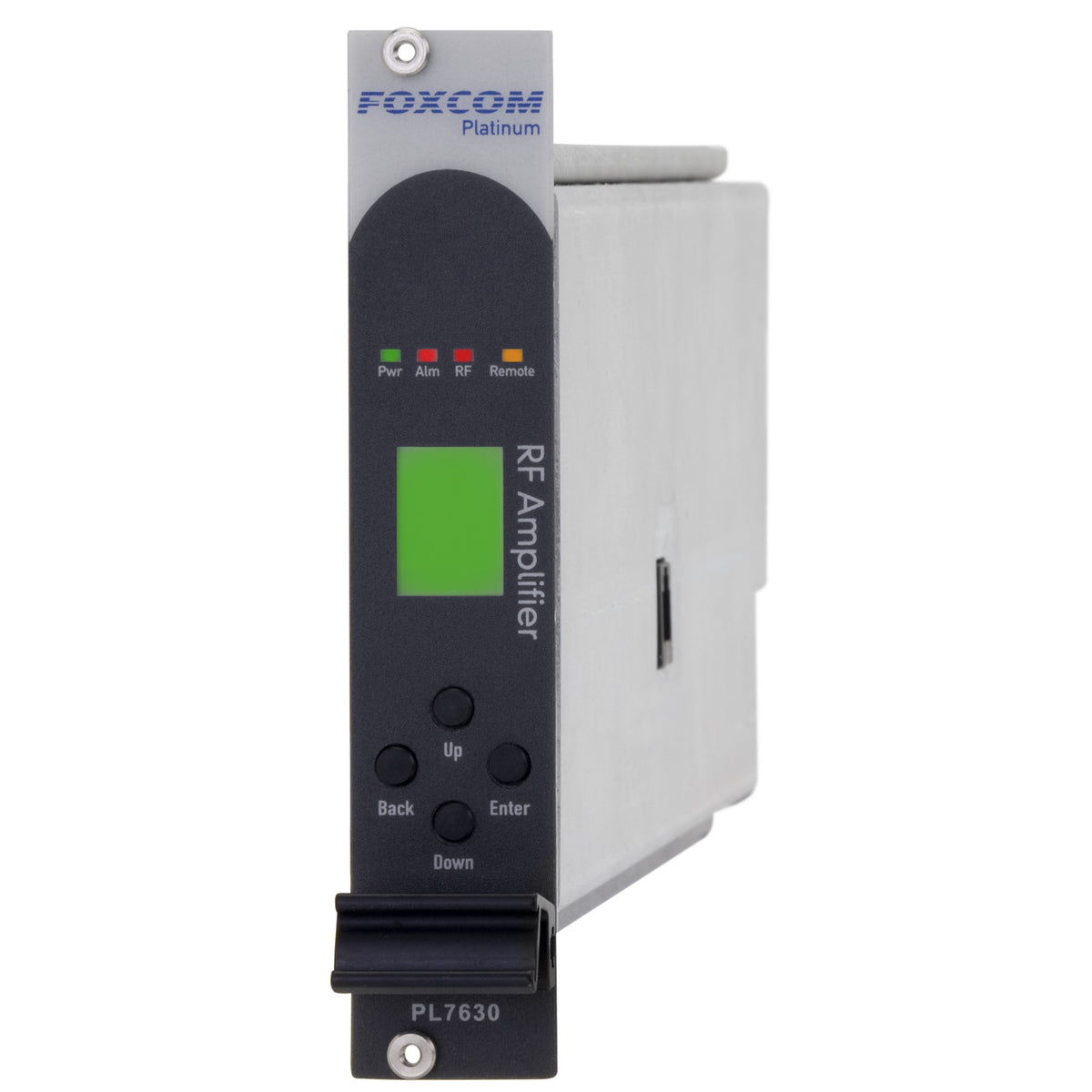

55dB Gain RF Amplifier

The 55dB Gain RF Amplifier PL7630 provides the capability to integrate a pre- or post-amplifier as a part of the IFL system. Pre-amplifier the PL7630 helps ensures a high C/N... Read full description

SKU: PL7630

Categories: SATCOM

Description Specifications Enquire

The 55dB Gain RF Amplifier PL7630 provides the capability to integrate a pre- or post-amplifier as a part of the IFL system.

Pre-amplifier the PL7630 helps ensures a high C/N by providing the optical transmitter with sufficient RF to optimally drive the laser.
Post-amplifier, the PL7630 ensures a constant high signal level RF output.

The PL7630 has an integral input/output RF power meter and is fully compatible with the Sat-light/Platinum M&C SNMP system.

Features & Benefits

Covers the entire frequency of the Sat-Light/Platinum suite [10 – 3000 MHz]
Adjustable gain [55dB maximum] via a local LCD or a SNMP card
Embedded input/output RF power meter
High output 1dB compression point +12dBm
Powerful management capabilities via a front panel LCD and rack mounted SNMP

RF Specification	Value
Frequency Range - Bandwidth	10 – 3000MHz
Amplitude Response @ Unity Gain	±1.5
Noise Figure	5dB
Input Signal Range - Total Power	None to -50dBm
RF Output Signal Range - Total Power	-20dBm

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 55dB Gain RF Amplifier specifications.

PL7630_55dB_Gain_RF_Amplifier_v1_GF.pdf
