96cm Ku Band Standard Receiver Transmitter (RxTx) LFL Antenna System

The  96cm Standard Rx/Tx Ku-Band LFL Class I Antenna is a rugged, commercial quality product suitable for the most demanding applications. The reflector is constructed from glass fiber reinforced polyester... Read full description

SKU: 965

Categories: Antennas

Description

The  96cm Standard Rx/Tx Ku-Band LFL Class I Antenna is a rugged, commercial quality product suitable for the most demanding applications.

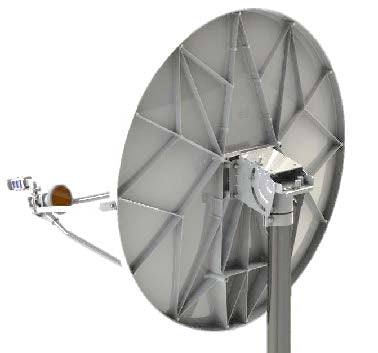

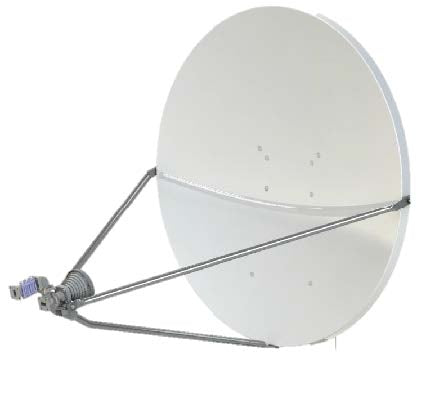

The reflector is constructed from glass fiber reinforced polyester [SMC] for strength and accuracy. A proprietary process insures high RF reflectivity as needed for Ku Band operation. The precision Az/EI  mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error.

This Az/EI allows the antenna to be installed on standard 73-76mm [27/8 ”- 3”] OD installation mounts. All hardware is plated to 720 hour salt spray standards tested in accordance with ASTM B-117.

Features:

  • TX Cross-Polarisation of greater than 30db within 1dB contour.
  • Excellent Port-to-Port Isolation of 90dB or better.
  • Meets or exceeds regulator agency requirements.
  • Class I system designed for typical 1W and 2W Ku-band RF Electronics. 1.7 kg or 3.7 lb max. weight (For Block UpConvertors (BUC) and Low Noise Block (LNB)) and 1.9 kg or 4.2 lb max. weight (For Transceiver)
  • ISO 9001:2008 Certificate of Registration
  • Eutelsat Cert. No. EA-V061
  • One-piece precision SMC Reflector
  • Precision Az/EI Mount
  • Fine Azimuth and Elevation Adjustment Features
  • All Materials Comply with EU Directive No. 2011/65/EC (RoHS]
  • Standard Waveguide Flange Interface

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the 96cm Ku Band Standard Receiver Transmitter (RxTx) LFL Antenna System specifications.

96cm_Ku_Band_Standard_Receiver_Transmitter_RxTx_LFL_Antenna_System.pdf
