Home Products Block Upconverters (BUC) Block Up-Converter (BUC) - C Band 5 to 40W
Block Up-Converter (BUC) - C Band 5 to 40W
Block Up-Converter (BUC) - C Band 5 to 40W
Block Up-Converter (BUC) - C Band 5 to 40W
Block Up-Converter (BUC) - C Band 5 to 40W

Block Up-Converter (BUC) - C Band 5 to 40W

  Block Up-Converter (BUC) - C Band 5 to 8W Product Features • Low power consumption 40W (@ 37 dBm) 50W (@ 39 dBm) • Compact and light weight (3.3lbs... Read full description

Categories: SATCOM

Select Size

Enquire
Description Specifications Enquire

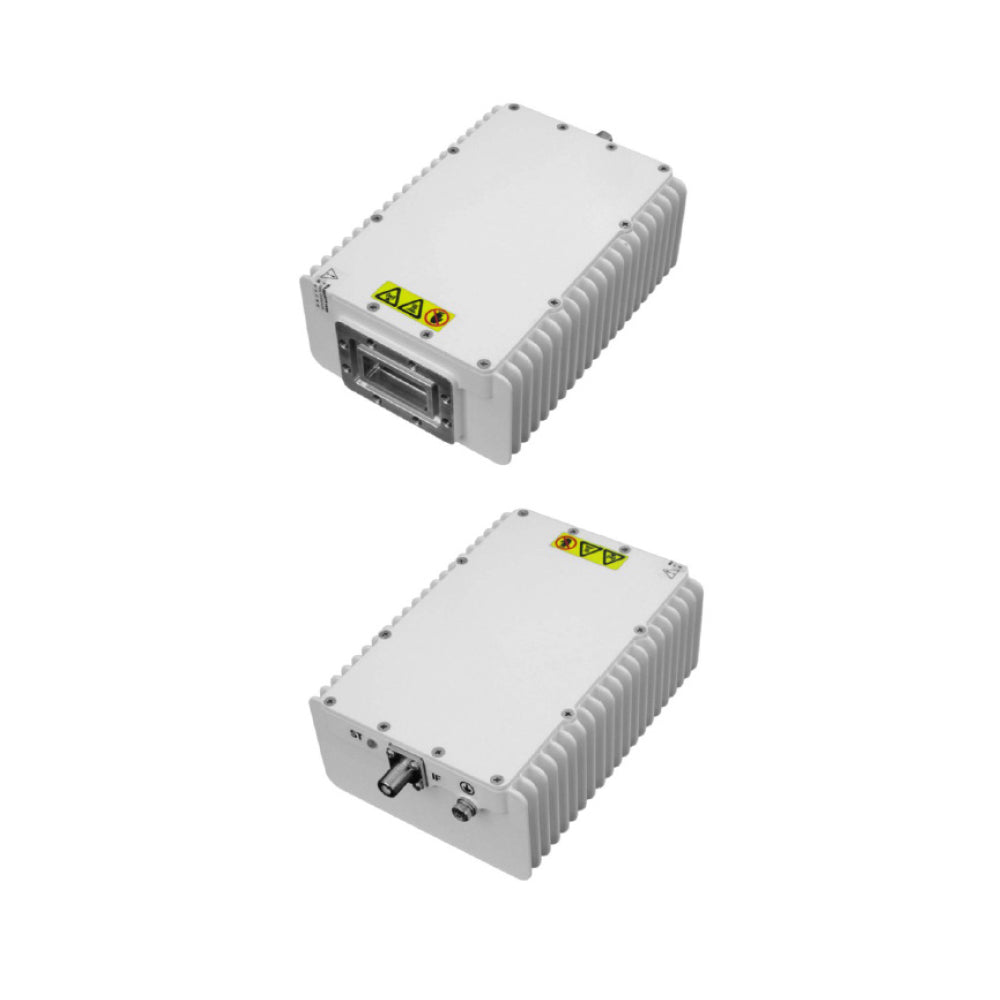

Block Up-Converter (BUC) - C Band 5 to 8W

Product Features

• Low power consumption 40W (@ 37 dBm) 50W (@ 39 dBm)

• Compact and light weight (3.3lbs / 1.5kg)

• Fanless • IFL input power

• Low phase noise (exceeds IESS308/309)

• Rugged design for extreme environments (-40 to +60oC)

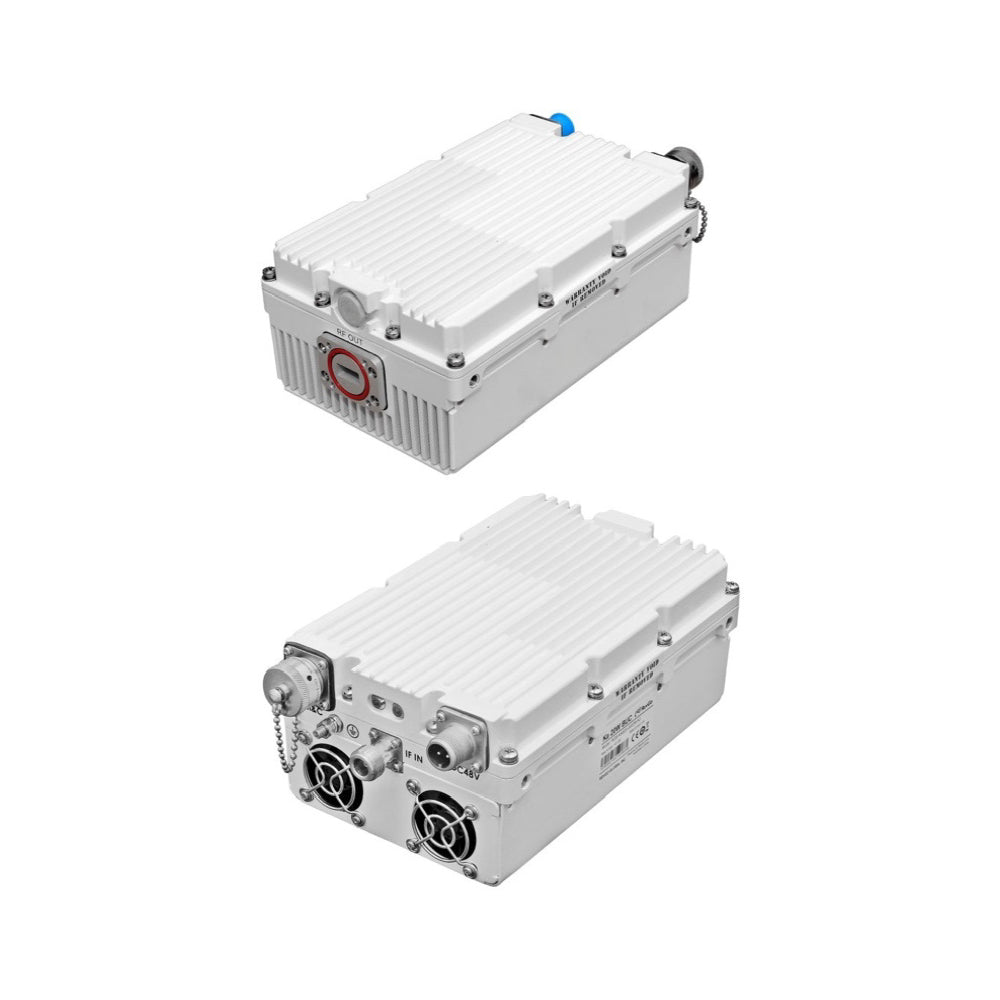

C-Band 20/40W

Product Features

• Variable power consumption 20W: 130W@42dBm 40W: 220W@45dBm

• Compact and light weight (11lbs / 5kg)

• Low phase noise (exceeds IESS308/309)

• Rugged design for extreme environments (-40 to +65oC)

Specifications

Download the Block Up-Converter (BUC) - C Band 5 to 40W specifications.

C-Band_20_40W.pdf

C-Band_5_8W.pdf
