C-Band Optical RF Down Link PL7CD30T / PL7CD30R4

Global Foxcom’s Platinum C-Band products are designed to provide full specification service up to a full 4dB optical budget at low cost. Global Foxcom’s Platinum C-Band products are designed to... Read full description

SKU: PL7CD30T / PL7CD30R4

Categories: SATCOM

Description Specifications Enquire

Global Foxcom’s Platinum C-Band products are designed to provide full specification service up to a full 4dB optical budget at low cost.

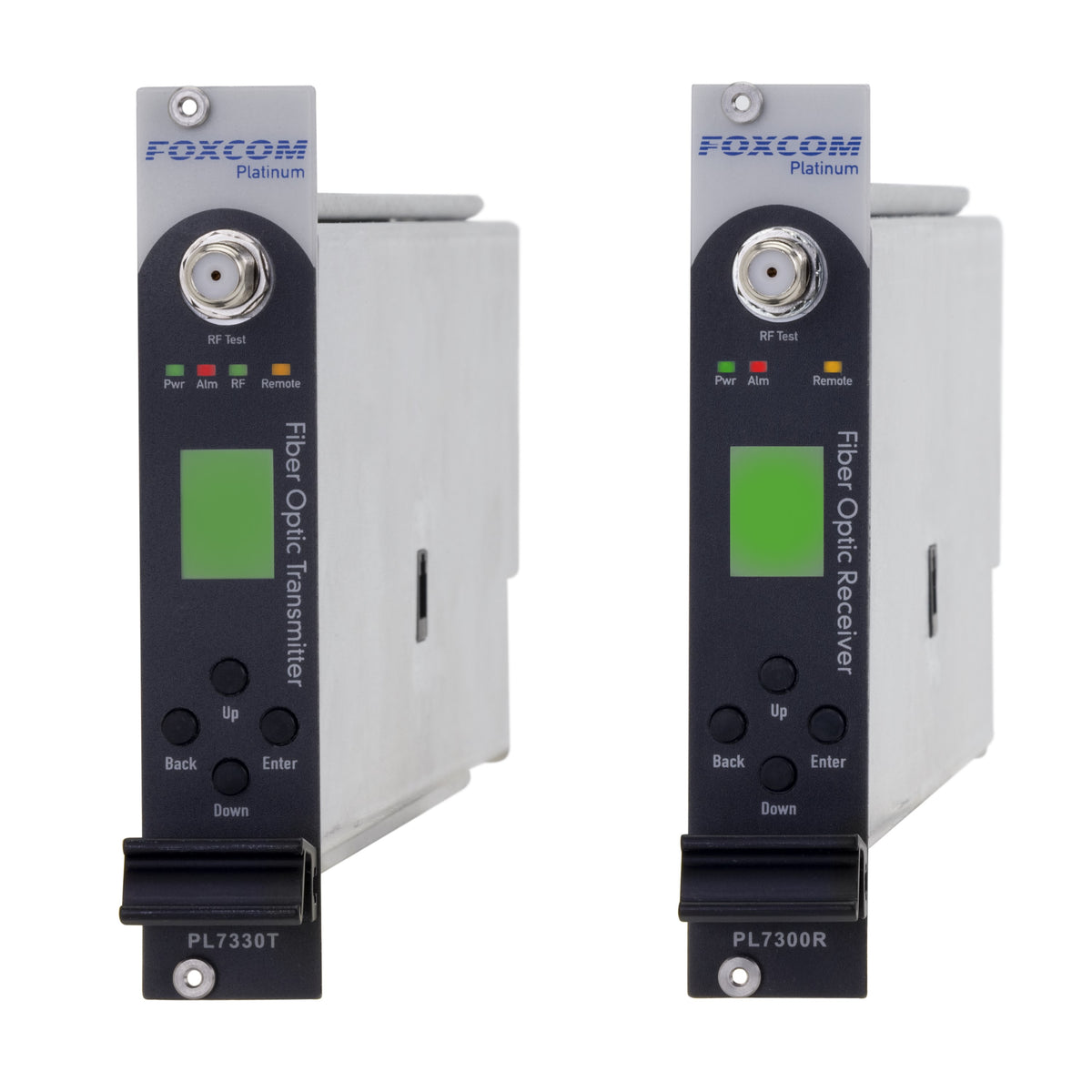

Global Foxcom’s Platinum C-Band products are designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission. With high RF input power and wide dynamic range, the link is designed to provide full specification service up to a full 4dB optical budget with the PL7CD30R4 receiver.

Utilizing Global Foxcom’s DigiRFtechnology, the user has full control of all important functions for setup, operation and analysis via the front panel LCD or via the associated sub-rack SNMP capability. In addition IMizer, an automated adjustable link calibration embedded system, enables the user to align the RF links IMD/CNR to specific linearity performances without a two-tone test. Select the desired IMD for the optical transmitter, either locally or remotely, IMizer automatically adjusts the laser drive to meet the IMD requirements.

Each low profile individual transmitter or receiver can be “hot swapped” in the sub-rack chassis maintaining the best subsystem uptime capability. Each module contains an individual processor to maximize specification performance at all times under demanding user applications. The PL7CD30T transmitter and PL7CD30R4 receiver are designed for chassis mounting.

The associated Platinum chassis, model PL7010, has 12 active slots, one main control processor (MCP) slot and two redundant power supplies. No fans are required even under full sub-rack loading and full Low Noise Block (LNB) powering.

The uplink:

supports up to a full 4dB optical budget
has a C-Band frequency range of 3400–4200MHz
powerful management capabilities via a front panel LCD and rack mounted SNMP
user monitoring and control of required IMD levels
variety of RF and optical connectors
1550nm and CWDM ITU Grid laser options are available for longer fiber runs and single fiber multiplexing solutions.

RF Specification	Value
Frequency Range - Bandwidth	3400–4200 MHz
Amplitude Response @ Unity Gain	+/- 2
Noise Figure	20 to 40
Output IP3 (OIP3)	20
Input Signal Range - Total Power	-25 to -5
RF Output Signal Range - Total Power	0 to -25
Optical Specifications
Optical Budget / Distance 1310nm 1550nm	8\|15

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the C-Band Optical RF Down Link PL7CD30T / PL7CD30R4 specifications.

Single_C_band_PL7CD30T_PL7CD30R4_GF.pdf
