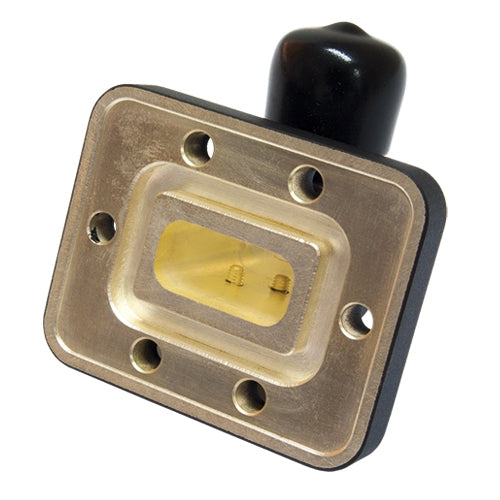

Coax to Waveguide Transitions

Coax to Waveguide Transitions

We offer a standard range of Waveguide to Coaxial Adaptors. The Economy range of adaptors are offered for most everyday usage. Using Low Power connectors the Economy version offers a... Read full description

SKU: coax to wg

Categories: Waveguides

ENQUIRE
Description Specifications Reviews Enquire
Description

We offer a standard range of Waveguide to Coaxial Adaptors.

The Economy range of adaptors are offered for most everyday usage. Using Low Power connectors the Economy version offers a good compromise between performance and cost. To maintain the lowest prices, the economy version is offered in aluminium. Painting, plating and brass versions are available at extra cost. It is possible to offer improved performance specifications for narrow band options.

Precision Adaptors are offered to suit laboratory or test bench applications. The precision version is manufactured from brass and painted with attractive, hard wearing, epoxy paint finish as standard. Each adaptor is tuned to offer the highest possible performance over the full waveguide frequency band (Improved performance over a narrower bandwidth is available).

Precision Rectangular Model

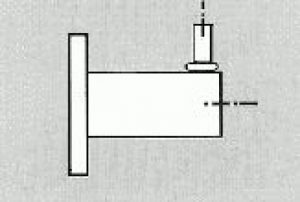

Precision Rectangular Model diagram
Specification:
V.S.W.R: See table
Material: Brass or Aluminium with Iridite finish
For Male add M instead of F



Operating Frequency Band (GHz) TWS Part Number Flange Type Connector Type Max V.S.W.R.
2.60 - 3.95 RA 10 PQB 012 B N-F UDR 32 N(f) 1.1
2.60 - 3.95 RA 10 PQB 031 B N-F PDR 32 N(f) 1.1
2.60 - 3.95 RA 10 PQB 112 B N-F CPR 284F N(f) 1.1
2.60 - 3.95 RA 10 PQB 021 B N-F CPR 284G N(f) 1.1
3.30 - 4.90 RA 11A PQB 012 B N-F UDR 40 N(f) 1.1
3.30 - 4.90 RA 11A PQB 031 B N-F PDR 40 N(f) 1.1
3.30 - 4.90 RA 11A PQB 122 B N-F CPR 229F N(f) 1.1
3.30 - 4.90 RA 11A PQB 021 B N-F CPR 229G N(f) 1.1
3.95 - 5.85 RA 12 PQB 012 B N-F UDR 48 N(f) 1.1
3.95 - 5.85 RA 12 PQB 031 B N-F PDR 48 N(f) 1.1
3.95 - 5.85 RA 12 PQB 122 B N-F CPR 187F N(f) 1.1
3.95 - 5.85 RA 12 PQB 021 B N-F CPR 187G N(f) 1.1
4.90 - 7.05 RA 13 PQB 012 B N-F UDR 58 N(f) 1.1
4.90 - 7.05 RA 13 PQB 031 B N-F PDR 58 N(f) 1.1
4.90 - 7.05 RA 13 PQB 122 B N-F CPR 159F N(f) 1.1
4.90 - 7.05 RA 13 PQB 021 B N-F CPR 159G N(f) 1.1
5.85 - 8.20 RA 14 PQB 012 B SMA-F UDR 70 SMA(f) 1.1
5.85 - 8.20 RA 14 PQB 031 B SMA-F PDR 70 SMA(f) 1.1
5.85 - 8.20 RA 14 PQB 122 B SMA-F CPR 137F SMA(f) 1.1
5.85 - 8.20 RA 14 PQB 021 B SMA-F CPR 137G SMA(f) 1.1
7.05 - 10.00 RA 15 PQB 402 B SMA-F UBR 84 SMA(f) 1.1
7.05 - 10.00 RA 15 PQB 412 B SMA-F PBR 84 SMA(f) 1.1
7.05 - 10.00 RA 15 PQB 122 B SMA-F CPR 112F SMA(f) 1.1
7.05 - 10.00 RA 15 PQB 021 B SMA-F CPR 112G SMA(f) 1.1
8.20 - 12.40 RA 16 PQB 402 B SMA-F UBR 100 SMA(f) 1.1
8.20 - 12.40 RA 16 PQB 412 B SMA-F PBR 100 SMA(f) 1.1
8.20 - 12.40 RA 16 PQB 122 B SMA-F CPR 90F SMA(f) 1.1
8.20 - 12.40 RA 16 PQB 021 B SMA-F CPR 90G SMA(f) 1.1
8.20 - 12.40 RA 16 PQB 442 B SMA-F UG 39/U SMA(f) 1.1
10.00 - 15.00 RA 17 PQB 402 B SMA-F UBR 120 SMA(f) 1.15
10.00 - 15.00 RA 17 PQB 412 B SMA-F PBR 120 SMA(f) 1.15
10.00 - 15.00 RA 17 PQB 442 B SMA-F M3922/53-007 SMA(f) 1.15
12.40 - 18.00 RA 18 PQB 402 B SMA-F UBR 140 SMA(f) 1.15
12.40 - 18.00 RA 18 PQB 412 B SMA-F PBR 140 SMA(f) 1.15
12.40 - 18.00 RA 18 PQB 442 B SMA-F UG 419/U SMA(f) 1.15
15.22 - 22.00 RA 19 PQB 402 B K-F UBR 180 K Type (f) 1.15
15.22 - 22.00 RA 19 PQB 412 B K-F PBR 180 K Type (f) 1.15
18.00 - 26.50 RA 20 PQB 402 B K-F UBR 220 K Type (f) 1.15
18.00 - 26.50 RA 20 PQB 412 B K-F PBR 220 K Type (f) 1.15
18.00 - 26.50 RA 20 PQB 442 B K-F UG 595/U K Type (f) 1.15
22.00 - 33.00 RA 21 PQB 402 B K-F UBR 260 K Type (f) 1.2
22.00 - 33.00 RA 21 PQB 412 B K-F PBR 260 K Type (f) 1.2
22.00 - 33.00 RA 21 PQB 442 B K-F UG 1530/U K Type (f) 1.2
26.50 - 40.00 RA 22 PQB 402 B K-F UBR 320 K Type (f) 1.2
26.50 - 40.00 RA 22 PQB 412 B K-F PBR 320 K Type (f) 1.2
26.50 - 40.00 RA 22 PQB 442 B K-F UG 599/U K Type (f) 1.2



Standard Rectangular (Economy) Model

waveguide to coax model diagram



Operating Frequency Band (GHz) TWS Part Number Flange Type Connector Type Max V.S.W.R.
3.30 - 4.90 RA 11A MZH 014 A N-F UDR 40 N(f) 1.15
3.30 - 4.90 RA 11A MZH 033 A N-F PDR 40 N(f) 1.15
3.30 - 4.90 RA 11A MZH 124 A N-F CPR 229F N(f) 1.15
3.30 - 4.90 RA 11A MZH 023 A N-F CPR 229G N(f) 1.15
3.95 - 5.85 RA 12 MZH 014 A N-F UDR 48 N(f) 1.15
3.95 - 5.85 RA 12 MZH 033 A N-F PDR 48 N(f) 1.15
3.95 - 5.85 RA 12 MZH 124 A N-F CPR 187F N(f) 1.15
3.95 - 5.85 RA 12 MZH 023 A N-F CPR 187G N(f) 1.15
4.90 - 7.05 RA 13 MZH 014 A N-F UDR 58 N(f) 1.15
4.90 - 7.05 RA 13 MZH 033 A N-F PDR 58 N(f) 1.15
4.90 - 7.05 RA 13 MZH 124 A N-F CPR 159F N(f) 1.15
4.90 - 7.05 RA 13 MZH 023 A N-F CPR 159G N(f) 1.15
5.85 - 8.20 RA 14 MZH 014 A SMA-F UDR 70 SMA(f) 1.15
5.85 - 8.20 RA 14 MZH 033 A SMA-F PDR 70 SMA(f) 1.15
5.85 - 8.20 RA 14 MZH 124 A SMA-F CPR 137F SMA(f) 1.15
5.85 - 8.20 RA 14 MZH 023 A SMA-F CPR 137G SMA(f) 1.15
7.05 - 10.00 RA 15 MZH 404 A SMA-F UBR 84 SMA(f) 1.15
7.05 - 10.00 RA 15 MZH 414 A SMA-F PBR 84 SMA(f) 1.15
7.05 - 10.00 RA 15 MZH 124 A SMA-F CPR 112F SMA(f) 1.15
7.05 - 10.00 RA 15 MZH 023 A SMA-F CPR 112G SMA(f) 1.15
8.20 - 12.40 RA 16 MZH 404 A SMA-F UBR 100 SMA(f) 1.15
8.20 - 12.40 RA 16 MZH 414 A SMA-F PBR 100 SMA(f) 1.15
8.20 - 12.40 RA 16 MZH 124 A SMA-F CPR 90F SMA(f) 1.15
8.20 - 12.40 RA 16 MZH 023 A SMA-F CPR 90G SMA(f) 1.15
8.20 - 12.40 RA 16 MZH 444 A SMA-F UG 135/U SMA(f) 1.15
10.00 - 15.00 RA 17 MZH 404 A SMA-F UBR 120 SMA(f) 1.15
10.00 - 15.00 RA 17 MZH 414 A SMA-F PBR 120 SMA(f) 1.15
10.00 - 15.00 RA 17 MZH 444 A SMA-F M3922/53-008 SMA(f) 1.15
12.40 - 18.00 RA 18 MZH 404 A SMA-F UBR 140 SMA(f) 1.15
12.40 - 18.00 RA 18 MZH 414 A SMA-F PBR 140 SMA(f) 1.15
12.40 - 18.00 RA 18 MZH 444 A SMA-F UG 1665/U SMA(f) 1.15
15.22 - 22.00 RA 19 MZH 404 A K-F UBR 180 K Type (f) 1.25
15.22 - 22.00 RA 19 MZH 414 A K-F PBR 180 K Type (f) 1.25
18.00 - 26.50 RA 20 MZH 404 A K-F UBR 220 K Type (f) 1.25
18.00 - 26.50 RA 20 MZH 414 A K-F PBR 220 K Type (f) 1.25
18.00 - 26.50 RA 20 MZH 444 A K-F UG 597/U K Type (f) 1.25
22.00 - 33.00 RA 21 MZH 404 A K-F UBR 260 K Type (f) 1.25
22.00 - 33.00 RA 21 MZH 414 A K-F PBR 260 K Type (f) 1.25
22.00 - 33.00 RA 21 MZH 444 A K-F UG 1530/U** K Type (f) 1.25
26.50 - 40.00 RA 22 MZH 404 A K-F UBR 320 K Type (f) 1.25
26.50 - 40.00 RA 22 MZH 414 A K-F PBR 320 K Type (f) 1.25
26.50 - 40.00 RA 22 MZH 444 A K-F UG 599/U** K Type (f) 1.25

** Aluminium version of flange stated.
* For connector please add the correct letter (M = Male, F = Female).
Contact our sales team for specification details of male connector.
Alternative connectors and/or flanges available on request from factory.

Standard Double Ridge

waveguide to coax diagram

Specification:
V.S.W.R: See Table
Material: Aluminium (Brass available on request)
Finish: Iridite and blue paint
For Male add M instead of F



Operating Frequency Band (GHz) TWS PART NUMBER Flange Type Connector Type Max V.S.W.R.
5.80 - 16.00 RA 580 PQH D01 A SMA-F Plain Alt Holes SMA(f) 1.3
5.80 - 16.00 RA 580 PQH D03 A SMA-F Plain Threaded Holes SMA(f) 1.3
5.80 - 16.00 RA 580 PQH D05 A SMA-F Plain Clear Holes SMA(f) 1.3
5.80 - 16.00 RA 580 PQH D07 A SMA-F Seal Alt Holes SMA(f) 1.3
5.80 - 16.00 RA 580 PQH D09 A SMA-F Seal Threaded Holes SMA(f) 1.3
5.80 - 16.00 RA 580 PQH D11 A SMA-F Seal Clear Holes SMA(f) 1.3
6.50 - 18.00 RA 650 PQH D01 A SMA-F Plain Alt Holes SMA(f) 1.3
6.50 - 18.00 RA 650 PQH D03 A SMA-F Plain Threaded Holes SMA(f) 1.3
6.50 - 18.00 RA 650 PQH D05 A SMA-F Plain Clear Holes SMA(f) 1.3
6.50 - 18.00 RA 650 PQH D07 A SMA-F Seal Alt Holes SMA(f) 1.3
6.50 - 18.00 RA 650 PQH D09 A SMA-F Seal Threaded Holes SMA(f) 1.3
6.50 - 18.00 RA 650 PQH D11 A SMA-F Seal Clear Holes SMA(f) 1.3
7.50 - 18.00 RA 750 PQH D01 A SMA-F Mil/39000 3B-072 SMA(f) 1.3
7.50 - 18.00 RA 750 PQH D03 A SMA-F Mil/39000 3B-074 SMA(f) 1.3
7.50 - 18.00 RA 750 PQH D05 A SMA-F Mil/39000 3B-076 SMA(f) 1.3
7.50 - 18.00 RA 750 PQH D07 A SMA-F Mil/39000 3B-078 SMA(f) 1.3
7.50 - 18.00 RA 750 PQH D09 A SMA-F Mil/39000 3B-080 SMA(f) 1.3
7.50 - 18.00 RA 750 PQH D11 A SMA-F Mil/39000 3B-082 SMA(f) 1.3
18.00 - 40.00 RA 180 PQH D01 A K-F Mil/39000 3B-084 K Type (f) 1.5
18.00 - 40.00 RA 180 PQH D03 A K-F Mil/39000 3B-086 K Type (f) 1.5
18.00 - 40.00 RA 180 PQH D05 A K-F Mil/39000 3B-088 K Type (f) 1.5

Ordering information

Example: RA 16 P Q B 402 B SMA F

  • PS
    • Product code:
      RA = wg to coax adaptor (transition)
  • 16
    • Waveguide size:
      British WG size for rectangular waveguide or MIL spec. WRD size for double ridge waveguide
      e.g. 16 = WG16; 750 = WRD750
  • S
    • Type:
      M = economy
      P = precision
  • Q
    • Paint:
      Q = TWS blue (preferred)
      B = black
      G = grey
  • Z
    • Finish:
      Z = unplated (preferred for brass / copper)
      M = passivate (option for brass)
      F = Iridite (preferred for aluminium)
      H = chromate
      A = tin
      B = silver
  • 402
    • Flange type:
      See tables e.g. 402 = UBR flange
  • B
    • Material:
      A = aluminium
      B = brass
  • SMA
    • Connector type:
      SMA = SMA max frequency 26.5GHz
      N = N max frequency 18.0GHz
      TNC = TNC max frequency 18.0GHz
      K = K 18.0 - 40.0GHz
      7 = APC7
  • F
    • Connector
      M = male
      F = female (standard)
      N = neither (APC7)

For more details and prices please use the product enquiry form or contact our sales team.
