Home Products RF over Fibre (RFoF) Compact Solutions 1-Channel Transmitter

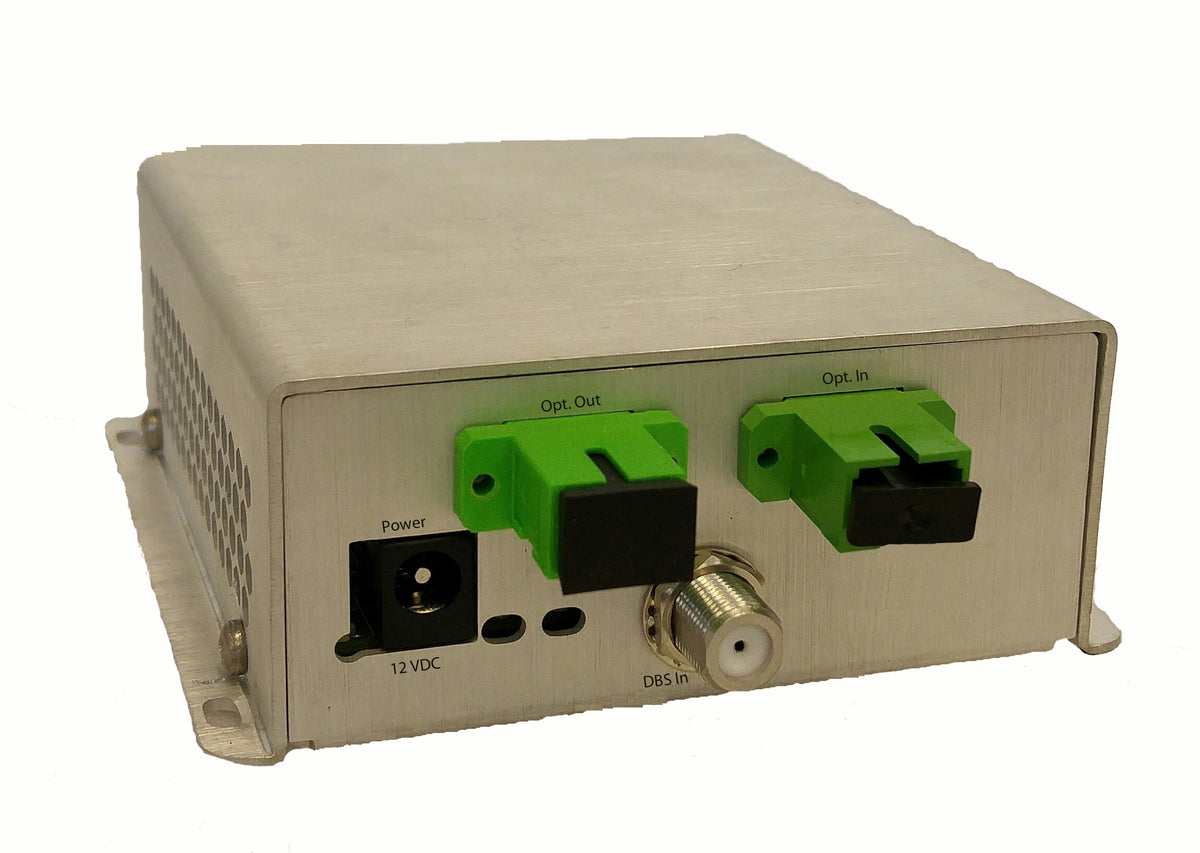

Compact Solutions 1-Channel Transmitter

The AL6T-1-CWDM, a 1-port unit, upgrades our 5-channel system to support a 6-channel system. The unit transmits six satellite TV signals to the AL5R over a single optical fibre (RFoF).... Read full description

SKU: AL6T-1

Categories: SATCOM

Description Specifications Enquire

The AL6T-1-CWDM, a 1-port unit, upgrades our 5-channel system to support a 6-channel system.

The unit transmits six satellite TV signals to the AL5R over a single optical fibre (RFoF). The optical output supports 1470nm and 1510–1610nm and connects to the AL5R unit and AL6R-1 CWDM. The optical output can be split to multiple points via an optical splitter.

Six RF input signals connect to six satellite antennas over coax cable and combine to a single optical output through CWDM.

The RF input bandwidth, 200-2400MHz, can support a variety of satellite television platforms.

Features:

1 Expanded L-band frequency inputs
Stand-alone housing
Low power consumption
AGC circuitry
Plug & play deployment
Point-to-multi-point architecture
Compatible with our AL5R/AL6R-1 receivers

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Compact Solutions 1-Channel Transmitter specifications.

AL6T-1_BsmarTV_Solutions_Data_Sheet_GF_v1.pdf

Enquire

Add your details below to find out more about this product. We'll aim to get back to within 48 working hours.

Compact Solutions 1-Channel Transmitter

Specifications

Enquire

Compatible Products
