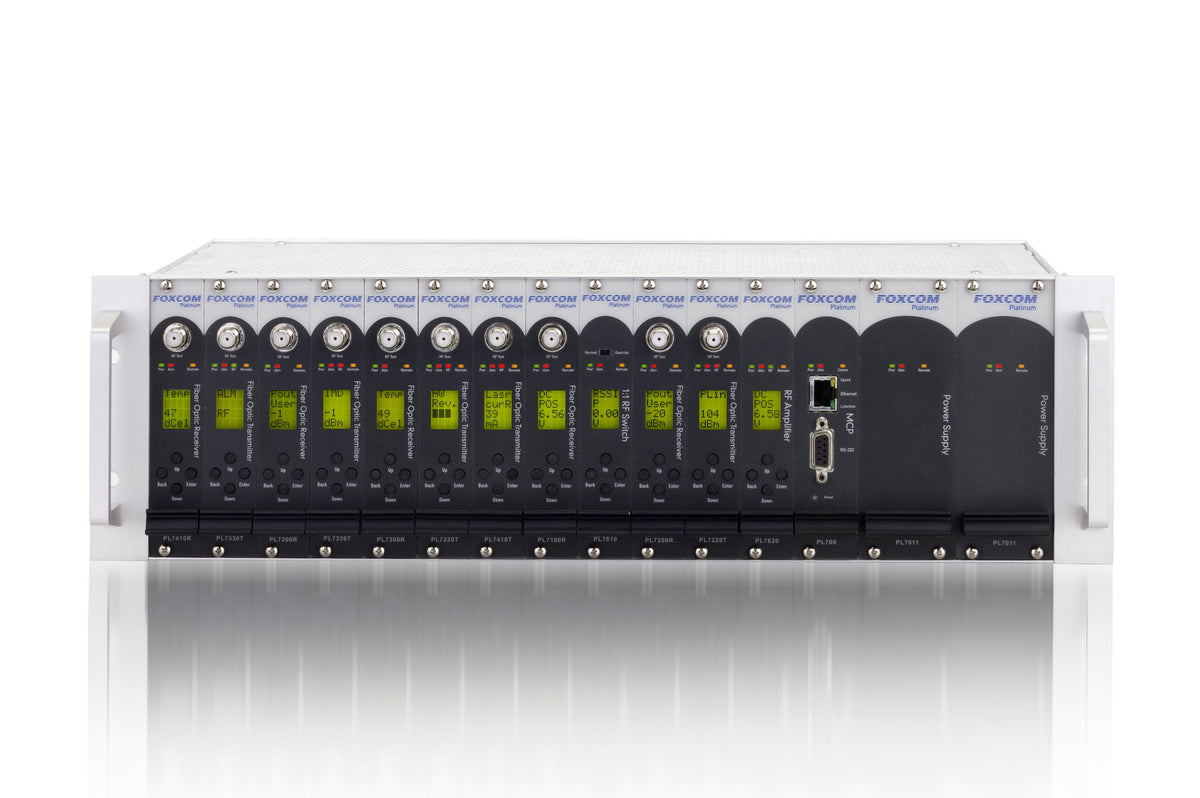

Extended L Band Fiber Optic Link

Our Platinum Extended L-Band products are designed to meet the increasing demand for modularity and high-performance for superior long-distance transmission. The link performs at full capability within a 4dB optical... Read full description

SKU: PL7240ET / PL7240ER

Categories: SATCOM

Our Platinum Extended L-Band products are designed to meet the increasing demand for modularity and high-performance for superior long-distance transmission. The link performs at full capability within a 4dB optical budget. High RF input power and wide dynamic range make the link suitable for both Uplink and Downlink applications.

It features:

  • Extended L-Band: 1250-3750MHz
  • Up to 10Km distance
  • Wide input power suitable for both Uplink and Downlink applications
  • Powerful management capabilities via a front panel LCD and rack mounted SNMP
  • LNB power control via LCD or SNMP: +13 or 18 VDC
  • 1550nm options for longer fiber runs



RF Specification Value
Frequency Range - Bandwidth 1250-3750MHz
Amplitude Response @ Unity Gain +/- 2.5
Noise Figure 20 dB
Output IP3 (OIP3) 20 dBm
Input Signal Range - Total Power -5 to -45dBm
RF Output Signal Range - Total Power -40 to -5dBm
Optical Specifications
Optical Budget / Distance 1310nm 1550nm 4|10


For more details and prices please use the product enquiry form or contact our sales team.



Specifications

Download the Extended L Band Fiber Optic Link specifications.

Platinum_PL7240E_Extended_L-Band_Rev01_GF.pdf
