Home Products RF over Fibre (RFoF) Fibre Optic Data Transceiver

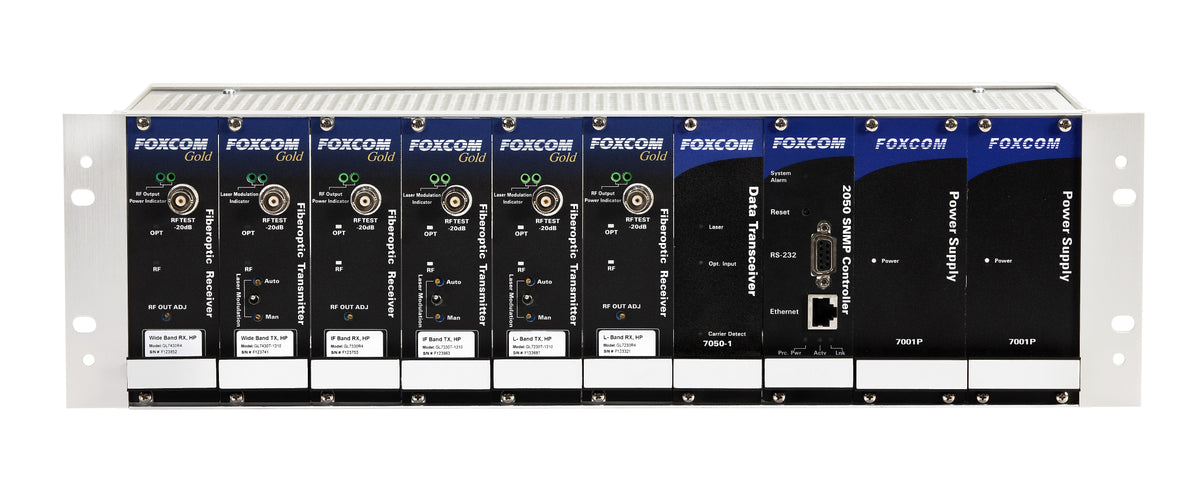

Fibre Optic Data Transceiver

Fibre Optic Data Transceiver

Our Model 7050 is a complete duplex fibre optic link for data transmission. The Model 7050 Fibre optic Data Transceiver provides the capability to Monitor and Control (M&C) on-site communication... Read full description

SKU: 7050

Categories: SATCOM

Enquire
Description Specifications Enquire

Our Model 7050 is a complete duplex fibre optic link for data transmission. The Model 7050 Fibre optic Data Transceiver provides the capability to Monitor and Control (M&C) on-site communication equipment such as testing and measuring equipment, redundancy switches, antenna pedestals, broadcast equipment, etc. With the Model 7050 you can easily locate problems and choose pre-determined solutions.

The Model 7050 can have up to five asynchronous bi-directional serial communication channels. In addition, the Model 7050 may be used for long distance asynchronous bi-directional serial communication, allowing remote M&C as well as transferring high rate time and frequency reference.

The Model 7050 units are connected via single mode fibre optic cables. Two fibres are required for the serial communication and one for the high-rate reference link. Data transmission protocols such as RS-485 (standard), RS-422 and RS-232 (options) are supported. Alarms and LED's indicating system status are provided.

Features:

  • Supports up to five bi-directional channels
  • High bit rate uni-directional channel available
  • Supports RS232/RS422/RS485 serial communication standards
  • Enables local and remote system Monitoring and Control (M&C)
  • Enables transferring Service Requested (SRQ) alarms from remote site to the Hub
  • Up to 19.2 Kbps data rate per channel
  • Very low Bit Error Rate (BER)
RF Specification Value
Number of Serial Data Channels: 7050-1 | 7050-4 4 | 5
Serial Communication Channels Asynchronous Bi-Directional RS485 (standard)/RS422/RS232
Data Rate Serial Link 19.2 Kbps per channel
Serial Communication BER 10-7 Max
Maximum Fiber Length 10 km
Data Connector Serial Link 9P D Type per channel (male connector)
Fiber Optic Connector FC/APC


For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Fibre Optic Data Transceiver specifications.

7050_v1_GF.pdf
