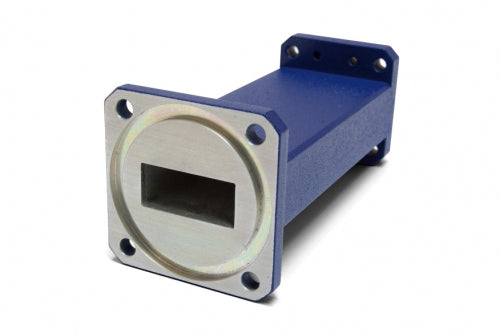

Filters & Diplexers
Various Diplexers and Band Reject Filters are available. Filters & Diplexers Below represents a selection of the more common filters. Please contact our sales team with your specific requirements. Diplexers... Read full description
SKU: filters/diplexers
Categories: Waveguides
Description
Various Diplexers and Band Reject Filters are available.
Filters & Diplexers
Below represents a selection of the more common filters. Please contact our sales team with your specific requirements.
Diplexers
| Pass band RX | 10.7 - 12.75GHz 80dB rejection to TX |
| Pass band TX | 13.75 - 14.5GHz 50dB rejection to RX |
Band reject filters
| WG11A | |
| Pass band | 3.625 - 4.2GHz |
| Reject band | 5.85 - 6.425GHz |
| Reject level | 70dBmin |
| WG14 | |
| Pass band | 5.845 - 6.425GHz |
| Reject band | 3.6 - 4.2GHz |
| Reject level | 90dBmin |
| WG17 | |
| Pass band | 10.7 - 12.2GHz |
| Reject band | 12.95 - 13.25GHz |
| Reject level | 70dBmin |
| WG17 | |
| Pass band | 10.7 - 12.75GHz |
| Reject band | 13.75 - 14.5GHz |
| Reject level | 65dBmin |
| WG17 | |
| Pass band | 10.7 - 11.7GHz |
| Reject band | 12.7 - 14.5GHz |
| Reject level | 50dB |
| WG17 | |
| Pass band | 10.95 - 12.2GHz |
| Reject band | 12.75 - 13.25GHz |
| Reject level | 70dB |
For more details and prices please use the product enquiry form or contact our sales team.
