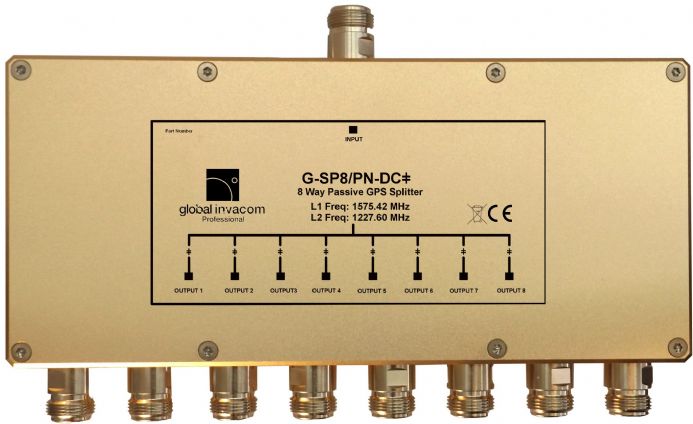

GPS 8 Way Passive Splitter

The Global Professional GPS Passive 8 way splitter has been designed to allow the signals from a GPS Antenna to be shared between eight receivers. The unit could also be... Read full description

SKU: G-SP8/PN-DC1

Categories: Professional electronics

Description

The Global Professional GPS Passive 8 way splitter has been designed to allow the signals from a GPS Antenna to be shared between eight receivers. The unit could also be used as a combiner.

The unit is configured to pass DC from port one receiver through to the antenna port. The other ports incorporates a 200Ohm DC load to simulate an antenna DC current draw.

Available in 'N', 'F', 'BNC' & 'SMA' Connector configurations.

Weight 0.4kg
Frequency Pass L1 1575.42MHz L2 1227.60MHz
Through Loss 8dB
Port to Port Isolation >20dB
Dimensions 116mm x 66mm x 26mm


For more details please use the product enquiry form or contact our sales team.
