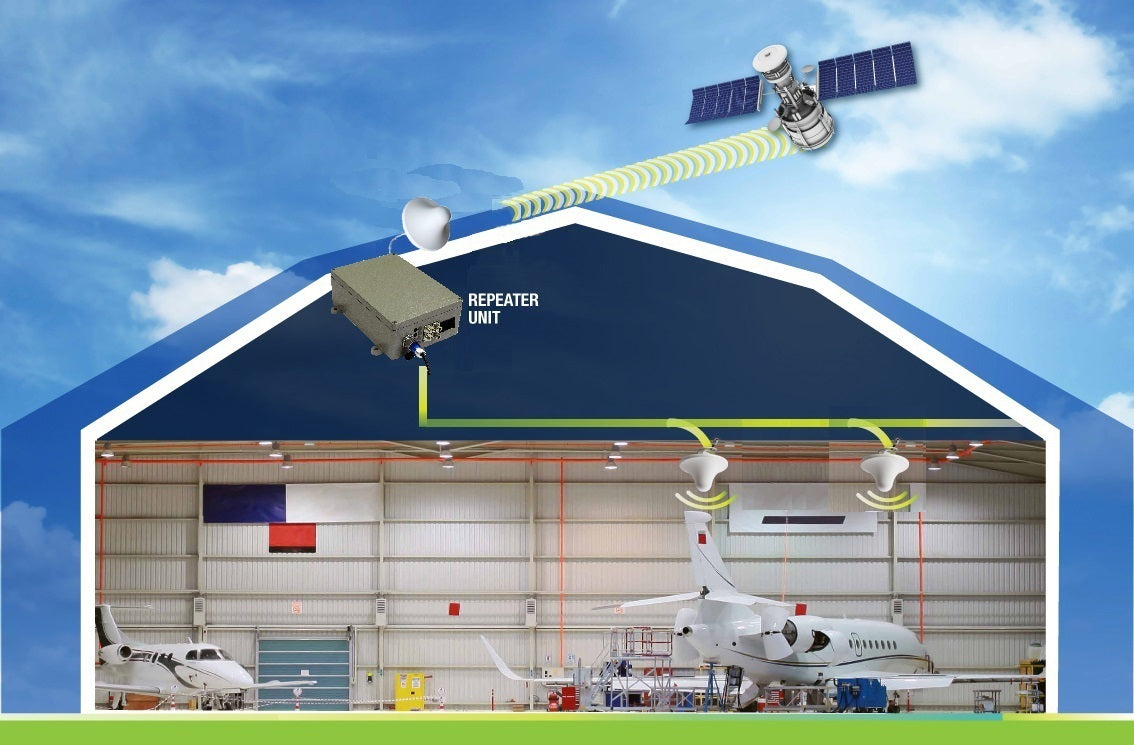

Inmarsat & GNSS Repeater Solution for Hangars set up diagram

Inmarsat & GNSS Repeater Solution for Hangars

We offer a unique, Inmarsat & GNSS Coaxial Repeater solution for Inmarsat BGAN satellite terminal coverage. The repeater enables transmission of Inmarsat and GNSS signals from outdoor to indoor. This... Read full description

SKU: INMRKIT01-X

Categories: RF over Fibre (RFoF)

Description Specifications Enquire

We offer a unique, Inmarsat & GNSS Coaxial Repeater solution for Inmarsat BGAN satellite terminal coverage. The repeater enables transmission of Inmarsat and GNSS signals from outdoor to indoor. This solution, which provides Inmarsat coverage to bunkers and aircraft hangars, saves money because there is no need to take aircrafts out of the hangars each time avionics systems need to be tested.

The Inmarsat system is supplied as a ready-to-install kit that includes an outdoor rated repeater unit, cabling and antennas.

Up to 5,000 ft2 of hangar space can be covered by a single system with a ceiling height of 130 ft.

Features & Benefits:

Testing can be done indoors at any time and in any climate
Easy to install and maintain
Quick return on investment (ROI)
Savings on aircraft tug and technical personnel
Savings on heating and cooling costs
Delivery time is improved because the entire testing process is faster

RF Specification	Value
Frequency Range - Bandwidth	1525–1559MHz
RF Input signal range	Up to -20dBm
Noise Figure	DL: <5dB; UL: <20dB

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Inmarsat & GNSS Repeater Solution for Hangars specifications.

Inmarsat_GPS_Coaxial_Hangar_Repeater_Solution_GF_Rev_2.pdf
