Iridium Coaxial Repeater

We have an exclusive Iridium Coaxial repeater solution, which enables users to stay connected to the world at all times even if all primary communication networks are down. We have... Read full description

SKU: IRIDKIT01X

Categories: SATCOM

Description Specifications Enquire

We have an exclusive Iridium Coaxial repeater solution, which enables users to stay connected to the world at all times even if all primary communication networks are down.

We have an exclusive Iridium Coaxial repeater solution, which enables users to stay connected to the world at all times even if all primary communication networks are down. The Iridium handset does not require sky view to operate, so users can remain inside in control rooms or bunkers during an emergency.

Our Iridium Coaxial repeater is the ideal solution for mobile satellite connectivity in any indoor location, such as a control room, an operations room and a military bunker.

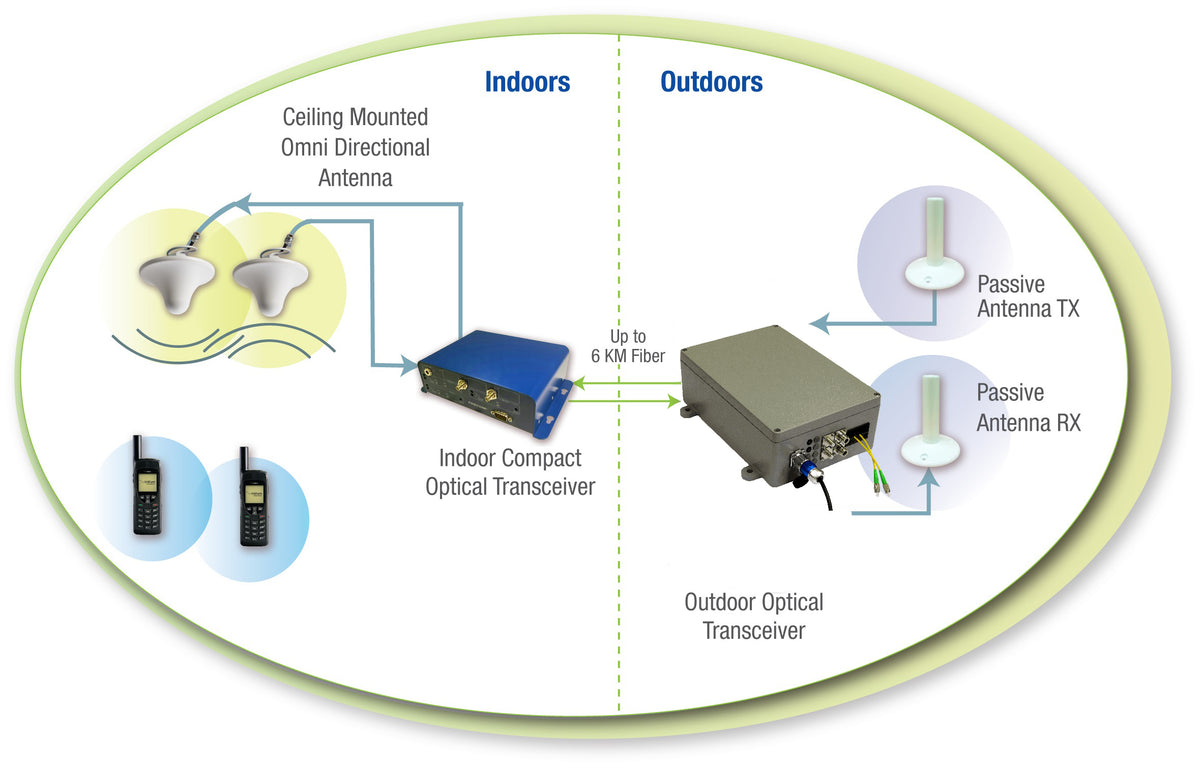

The kit consists of our Sat-Light 4005 series outdoor unit (ODU), dual outdoor Iridium antennas and dual indoor ceiling mount antennas. RF coax cables are also included in the package.

The system supports 40 meters with LMR 400 and 20 meters when using LMR300 of cabling.

We offer a full SATELLITE repeater solution, which includes a separate or integrated GPS system as well as Inmarsat.

Applications for this include:

Underground Facilities
Military Bunkers
Submarines
Maritime
Oil Rigs

RF Specification	Value
Frequency Range - Bandwidth	1616-1626.5MHz
ODU input/IDU output VSWR	1:1.6
Noise Figure	<5dB
Uplink / Downlink Gain	Fixed
Input Signal Range - Total Power	up to –20dBm

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Iridium Coaxial Repeater specifications.

Iridium_Coaxial_Repeater_Solution_non-hangar_GF_v4.pdf
