Home Products SATCOM Iridium Optical Repeater

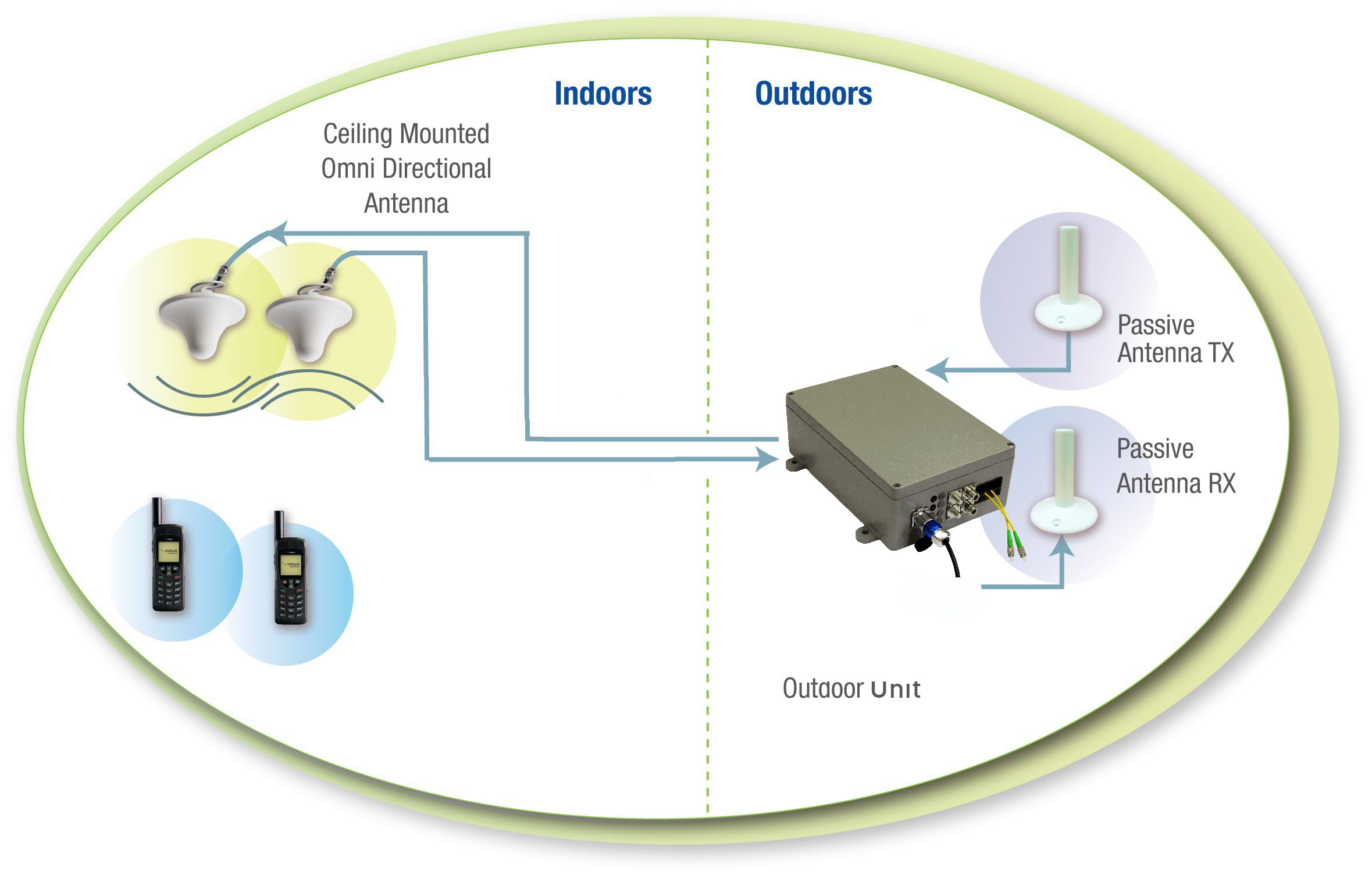

Iridium Optical Repeater set up diagram

Iridium Optical Repeater

Our optical system is the ideal solution for mobile satellite connectivity in ships, oil rigs, military bunkers and other underground facilities. Our fully integrated Iridium optical solution provides a cost... Read full description

SKU: IRIDIKIT01 / IRIDIKIT01C

Categories: SATCOM

Enquire
Description Specifications Enquire

Our optical system is the ideal solution for mobile satellite connectivity in ships, oil rigs, military bunkers and other underground facilities.

Our fully integrated Iridium optical solution provides a cost effective alternative to coax cable deployments. Harnessing the superior performance of fibre optics, this provides a coax free solution for in-building mobile satellite coverage.

The kit consists of the IP65 rated G4000 series outdoor unit (ODU), a 7190M series chassis with dual power supply (PS), dual outdoor Iridium antennas and a dual indoor ceiling mount antennas.

The fibre repeater solution provides seamless Iridium coverage within any building of any size. Multiple indoor antennas can be used with the use of power dividers to extend the signal coverage.

Iridium users can now enjoy the many benefits that optical fibre has to offer, such as improved signal quality, lightning protection, safety and ease of installation.

We offer a full SATELLITE repeater solution, which includes a separate or integrated GPS system as well as Inmarsat.

Features:

  • Complete solution for using Iridium devices without sky view
  • Supports up to 3 satphones simultaneously
  • The only wireless Iridium-based communication solution that extends to 3km
  • Simple wireless installation
  • L1 GPS support
RF Specification Value
Frequency Range - Bandwidth 1616-1626.5MHz
Noise Figure <5dB
Input Signal Range - Total Power Downlink: up to -20dBm; Uplink: up to 0dBm.


For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Iridium Optical Repeater specifications.

Iridium_Optical_Repeater_non-hangar_GF_Rev_8.pdf
