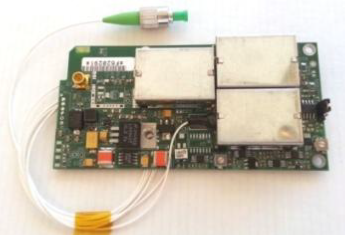

OEM Optical Link
Our OEM Link offers a high performance, cost effective alternative for OEM users requiring optical transmission of RF signals covering the range of 10 to 2200MHz. Two versions are available... Read full description
SKU: FOC1420 / FOC1430
Categories: RF over Fibre (RFoF)
Description
Our OEM Link offers a high performance, cost effective alternative for OEM users requiring optical transmission of RF signals covering the range of 10 to 2200MHz. Two versions are available depending on the application — high gain transmitters are available for low power input signals and low gain transmitters for high RF input power. Two receiver options with different power output are also available.
The OEM board has a dimension of 105x50x15mm and it operates on a wide voltage range. The OEM board is compatible with all Sat-Light products. Switchable AGC/MGC is standard. Optical/RF alarm output signals are available in both 50Ohm and 75Ohm versions.
Features:
- Complete Fibreoptic RF analog link for OEM integration
- Small 105x50x15mm
- 10-2200MHz wide input frequency range
- Selection of two version with different gain
- Adjustable laser drive and RF power output
- Selectable AGC/MGC
- Alarm outputs
| RF Specification | Value |
|---|---|
| Frequency Range - Bandwidth | 10-2200MHz |
| Amplitude Response @ Unity Gain | ±2dB |
| Noise Figure | 22dB |
| Output IP3 (OIP3) | 5dBm |
| Input Signal Range - Total Power | -20 to -45dBm |
| RF Output Signal Range - Total Power | -20 to -45dBm |
| Optical Specifications | |
| Optical Budget / Distance 1310nm 1550nm | 4dB / 8km |
For more details and prices please use the product enquiry form or contact our sales team.
