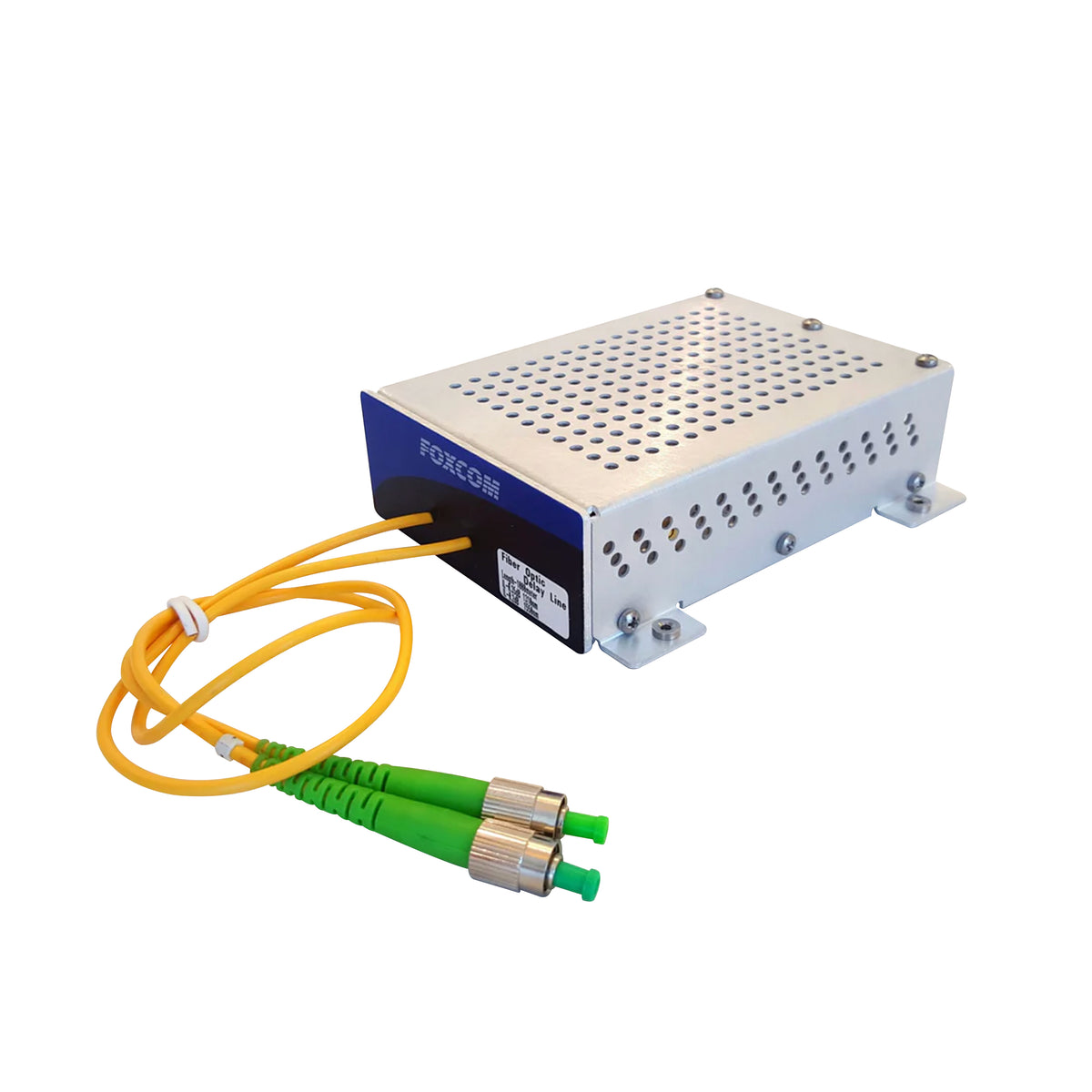

Optical Delay Line

SKU: Opticaldelayline

Categories: SATCOM

Description Specifications Enquire

The Optical Delay Line is implemented for multiple testing purposes, such as diversity sites, radar applications, distance simulation and signal processing. By simulating signal transmissions using our Delay Line, you can enhance the performance between transmitters and receivers. The Optical Delay Line is compatible with our Sat-Light/Platinum line.

The Optical Delay Line is customizable in fibre length and size, and boasts a compact, miniature fibre spool design that is easily incorporated into any situation. This product is made from sophisticated, high-quality fibre with a minimal bend loss and a low bend radius.

The Optical Delay Line is available as a standalone unit. You can also consider combining our rack mount Delay Line unit with a receiver and transmitter to produce a complete RF-over-Fibre Delay System.

Features:

Enhanced transmission performance
Customizable compact fibre spool
High-quality fibre with a low bend radius
Versatile use for multiple applications
Compatible with our satellite transmitters

RF Specification	Value
Attenuation at 1310 nm	<= 0.35 dB/km
Attenuation at 1383 nm	<= 0.35 dB/km
Attenuation at 1550 nm	<= 0.22 dB/km
Attenuation at 1625 nm	<= 0.24 dB/km
Cable Cutoff wavelength (λccf)	<= 1260 nm
Mode Field Diameter (MFD) Wavelength (nm): 1310	8.8 ± 0.4 µm
MFD 1550nm	9.8 ± 0.5µm
Miscellaneous Nominal Zero Dispersion Slope	0.089 ps/(nm² .km)

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Optical Delay Line specifications.

Optical_Delay_Line_Data_Sheet_GF_v1.pdf
