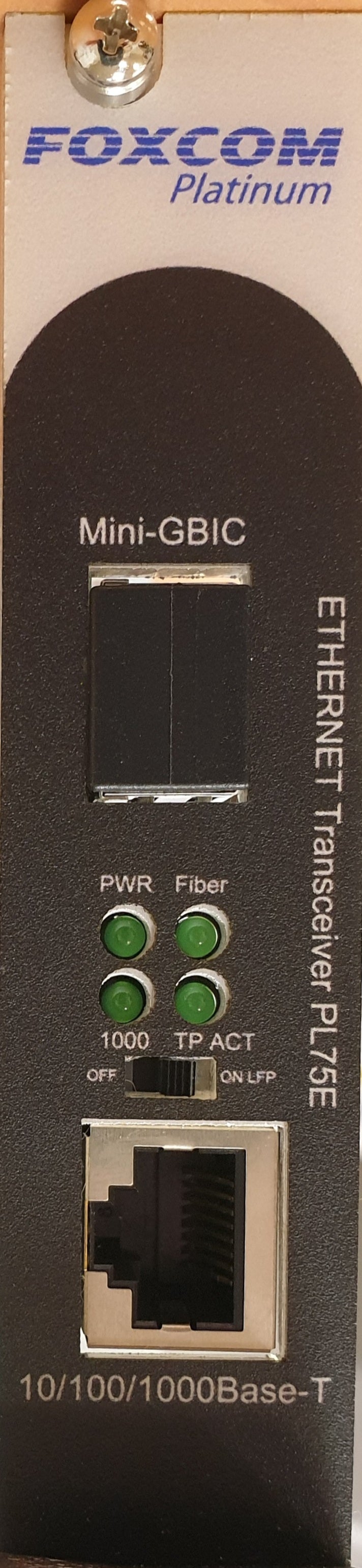

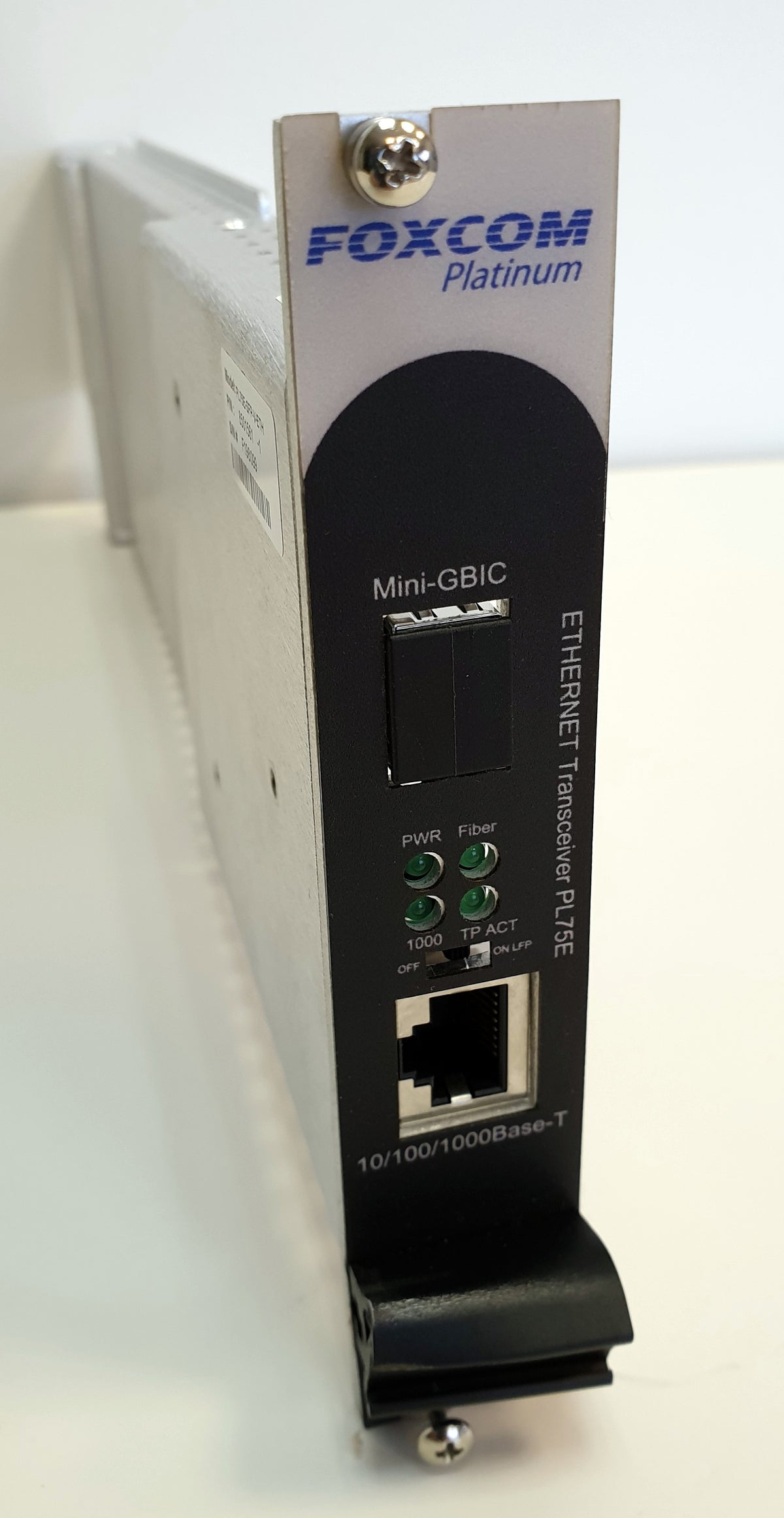

Optical Ethernet Link PL75E

Our 10/100 Base Ethernet card brings fast Ethernet capability to the our Sat‑Light/Platinum systems. Using only one single-mode optical fibre, the unit transmits either 10Base or 100Base data over distances up to... Read full description

SKU: PL75E

Categories: RF over Fibre (RFoF)

Description

Our 10/100 Base Ethernet card brings fast Ethernet capability to the our Sat‑Light/Platinum systems. Using only one single-mode optical fibre, the unit transmits either 10Base or 100Base data over distances up to 40 km.

This easy to install, plug-and-play media converter set complies with IEEE802.3 standards, and supports full duplex and half duplex communications with auto negotiation on both the fibre and twisted pair media. An RJ-45 interfaces to the twisted pair, while a single/dual SC type connector interfaces to the optical fibre path. It also supports MDI/MDI-X auto crossover, eliminating the need for elusive crossover cables.

Features & Benefits

  • One / two 100 Mbps FDX fibre port
  • One 10/100 Mbps and HDX/FDX twisted pair port
  • Operating temperature from -10°C to +60°C
  • Auto-cross automatic selection between crossover and straight-through
  • Front and back status LEDs
For more details, options and prices please contact our sales team.
Specifications

Download the Optical Ethernet Link PL75E specifications.

PL75E-SFP_Ethernet_link_v1_GF.pdf
