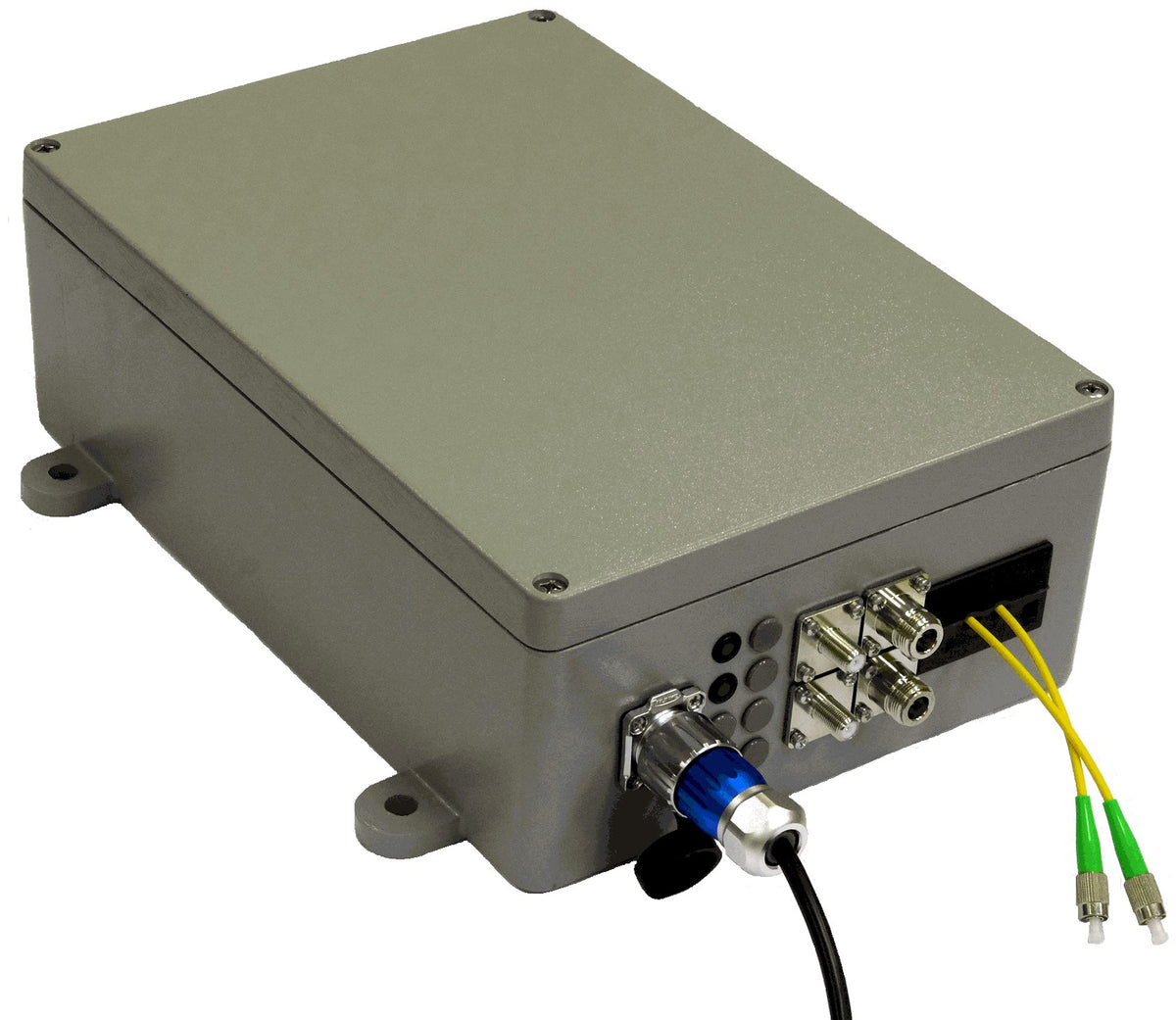

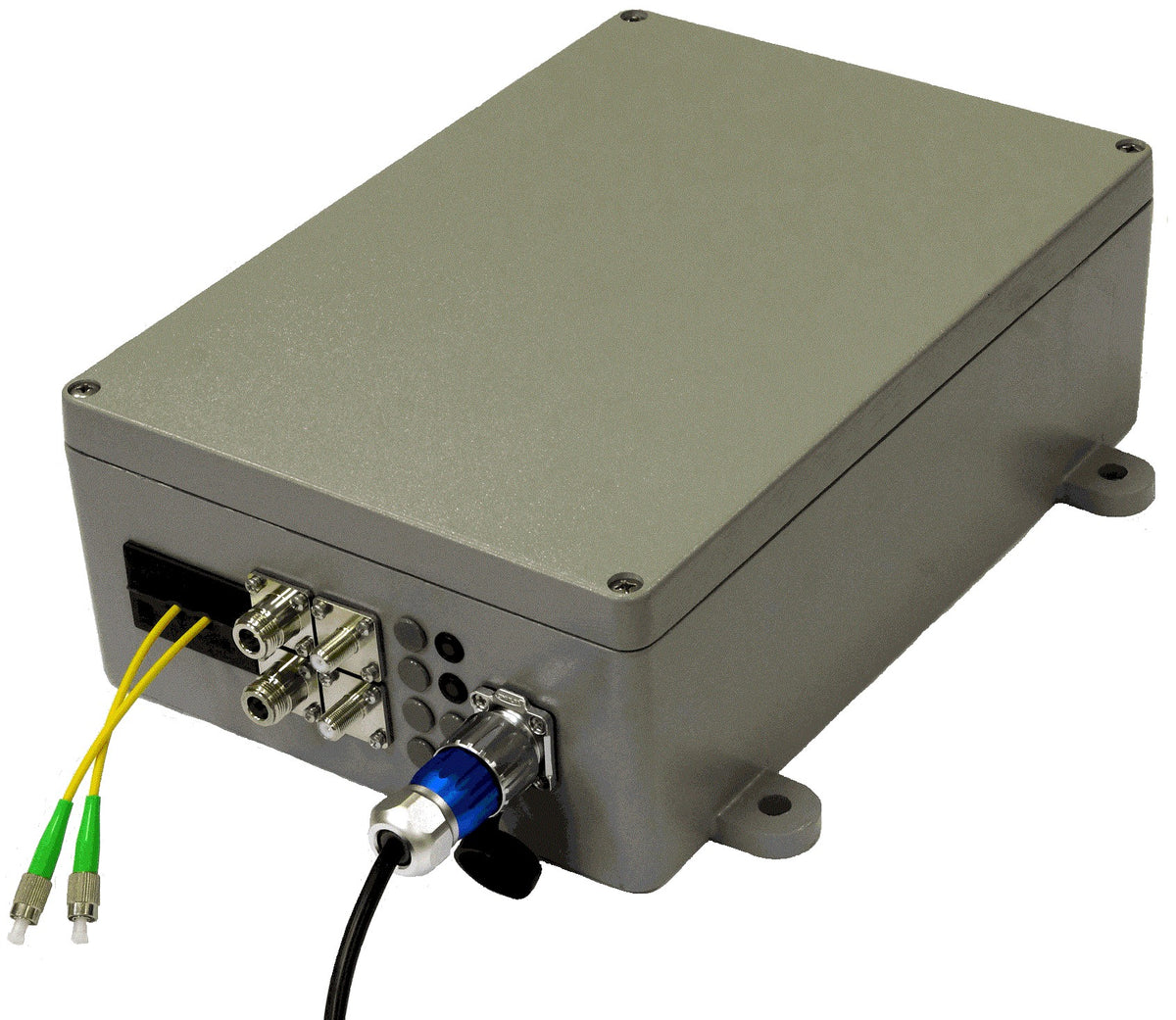

Outdoor Unit for Fibre Optic Interfacility Links
Categories:
RF over Fibre (RFoF)
The G4000 series Outdoor Unit (ODU) is an advanced modular outdoor enclosure system providing weatherproof protection for any combination of our fibre optic Interfacility Links (IFL). Our ODU solut...
More Information
The G4000 series Outdoor Unit (ODU) is an advanced modular outdoor enclosure system providing weatherproof protection for any combination of our fibre optic Interfacility Links (IFL). Our ODU solution eliminates the need for environment-controlled shelters and enables seamless transmission of multiple RF and Data signals between the antenna and indoor control room.
The G4000 series ODU can accommodate up to four (4) hot swappable, field upgradable RF optical modules. A variety of passive optical and RF components can be integrated into the enclosure. Other features include 1:1 redundancy, auto/manual gain control, LNB powering and SNMP based monitor and control. The ODU is available with single or dual hot swappable power supplies. LED indicators are provided on the ODU for power supply status.
The G4000 aluminum enclosure provides IP65 protection and is provided with an AC connector cable kit. The G4000 replaces our previous G4005 ODU.
Features:
- IP64 outdoor enclosure compatible with Sat-Light indoor modules
- Optional tactical version 4004
- Dual power supply option
- Can be loaded with up to 4 optical TX / RX Sat-Light Cards
- Internally pre-connectorized with our passive RF and optical components
- Optional intelligent redundancy RF switch
- LNB powering
| RF Specification | Value |
|---|---|
| Enclosure Capacity | Up to 4 hot-swappable, field-upgradable modules |
| Enclosure Size | 33x24x9.5cm |
| ODU Color | Gray for 4000 | Olive for 4004 (Optional Cream) |
| Optical Connector Qty | 4 for 4000/4004 (Tactical) |
| Input Power | 90 to 260 VAC, 50/60 Hz, 0.5 Amp (max); |
| Power Consumption | 40 Watts |
| Dust and Water Protection | IP65 on 4000 | IP67 4004 |
For more details and prices please use the product enquiry form or contact our sales team.
Specifications
Download the Outdoor Unit for Fibre Optic Interfacility Links specifications.
