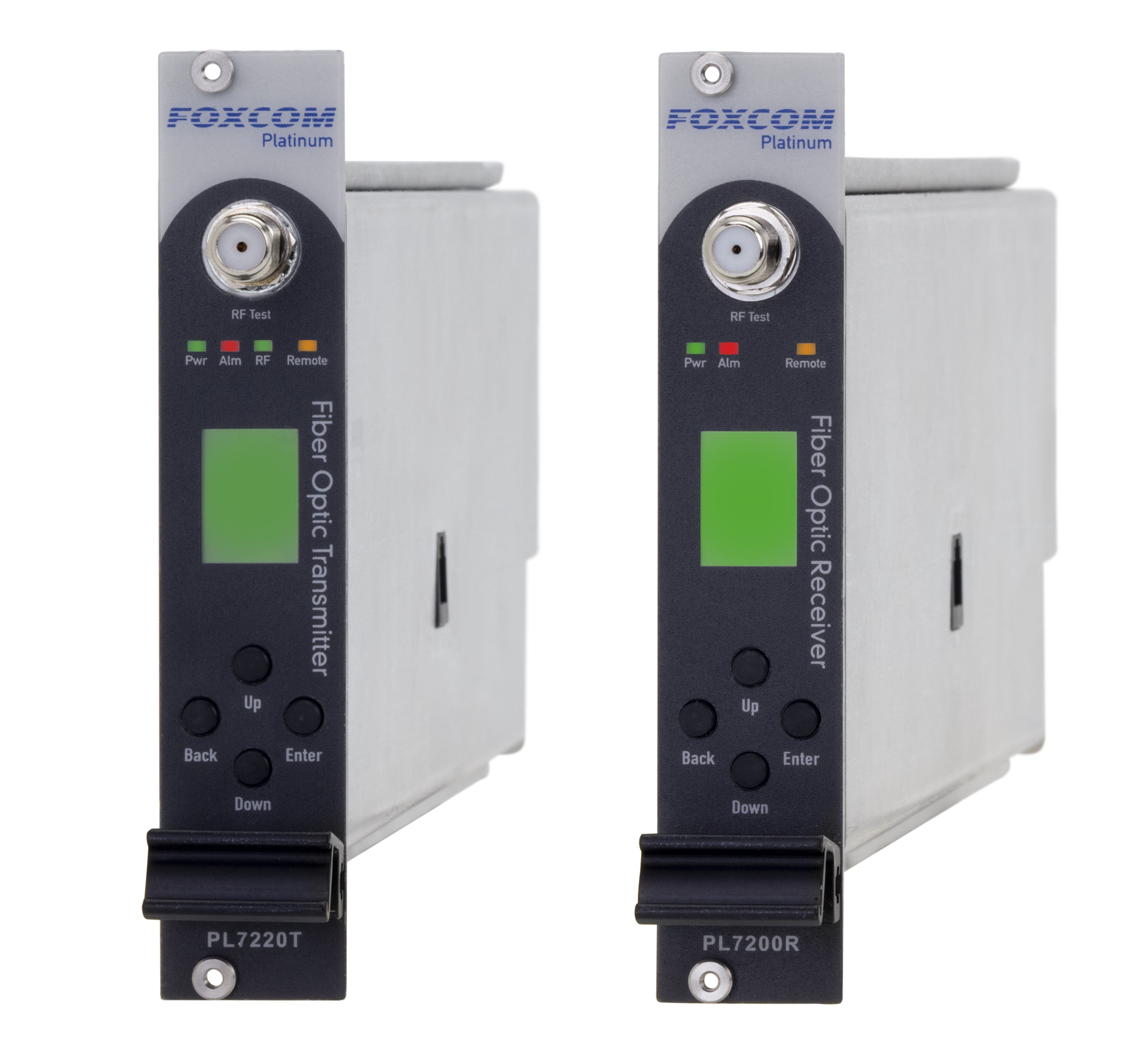

Platinum S-Band Optical Link

Our Platinum S-Band products are designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission. With high RF input power and... Read full description

SKU: PL7SU30T / PL7SU30R4

Categories: RF over fibre and fibre to the home

Description

Our Platinum S-Band products are designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission. With high RF input power and wide dynamic range, the link is designed to provide full specification service up to a full 4dB optical budget with the PL7SU30R4 receiver.

Utilizing our DigiRF technology, the user has full control of all important functions for setup, operation, and analysis via the front panel LCD or via the associated sub-rack SNMP capability.

In addition IMizer, an automated adjustable link calibration embedded system, enables the user to align the RF links IMD/CNR to specific linearity performances without a two-tone test. Select the desired IMD for the optical transmitter, either locally or remotely, IMizer automatically adjusts the laser drive to meet the IMD requirements.

Each low profile individual transmitter or receiver can be “hot swapped” in the sub-rack chassis maintaining the best subsystem uptime capability. Each module contains an individual processor to maximize specification performance at all times under demanding user applications.

The PL7SU30T transmitter and PL7SU30R4 receiver are designed for chassis mounting. The associated Platinum chassis, model PL7010, has 12 active slots, one main control processor (MCP) slot and two redundant power supplies. No fans are required even under full sub-rack loading and full LNB powering.

Features:

  • Supports up to a full 4dB optical budget
  • S-Band frequency range: 2–4GHz
  • Powerful management capabilities via a front panel LCD and rack-mounted SNMP
  • User monitoring and control of required IMD levels
  • Variety of RF and optical connectors
  • 1550nm and CWDM ITU Grid laser options are available for longer fibre runs and single fibre multiplexing solutions

S-band optical Link specifications

RF Specification Value
Frequency Range - Bandwidth 2000-4000MHz
Amplitude Response @ Unity Gain ±2.5
Noise Figure 37dB
Output IP3 (OIP3) 20dBm
Input Signal Range - Total Power -25 to -5dBm
RF Output Signal Range - Total Power -25 to 0dBm
Optical Specifications
Optical Budget / Distance 1310nm 1550nm 4dB (8km | 15km)



For more details and prices please use the product enquiry form or contact our sales team.
