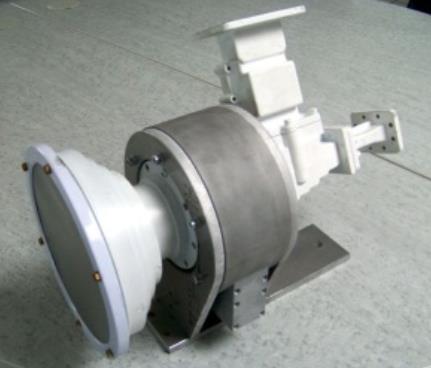

Polarization Motorization for Offset Antenna

Compact Polarization Motorization is the next step in the evolution of our Polarization Motorization systems. It is based on the known Universal Polarization motorization but smaller and more compact than... Read full description

SKU: polarization drive

Categories: SATCOM

Description Specifications Enquire

It can be used with every one of our and GD Satcom Offset Antennas but it can be also adapted for all other offset antennas. With the add-on of a frontal Rotary joint the Motorisation can also be attached to Prime Focus or Central Fed Dual Reflector (Gregorian, Cassegrain, RingFocus etc.) antennas.

Optionally this rotary joint can also be used with Circular feeds allowing the user to switch in-between the circular and horizontal planes.

Due to the high adaptable design the motorization design the C, Ku and Ka Band Polarization motorization have a similar aspect but differ in size. The Motorized Feed is driven by a strong DC Motor which itself is controlled by a intelligent Motor Control Unit (iMCU) allowing the unit to move with a maximum speed of up to 5° per second. The iMCU is connected to our advanced APS700 Antenna control unit enabling the full Control of the feed motorization.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Polarization Motorization for Offset Antenna specifications.

PolDrive_Offset.pdf
