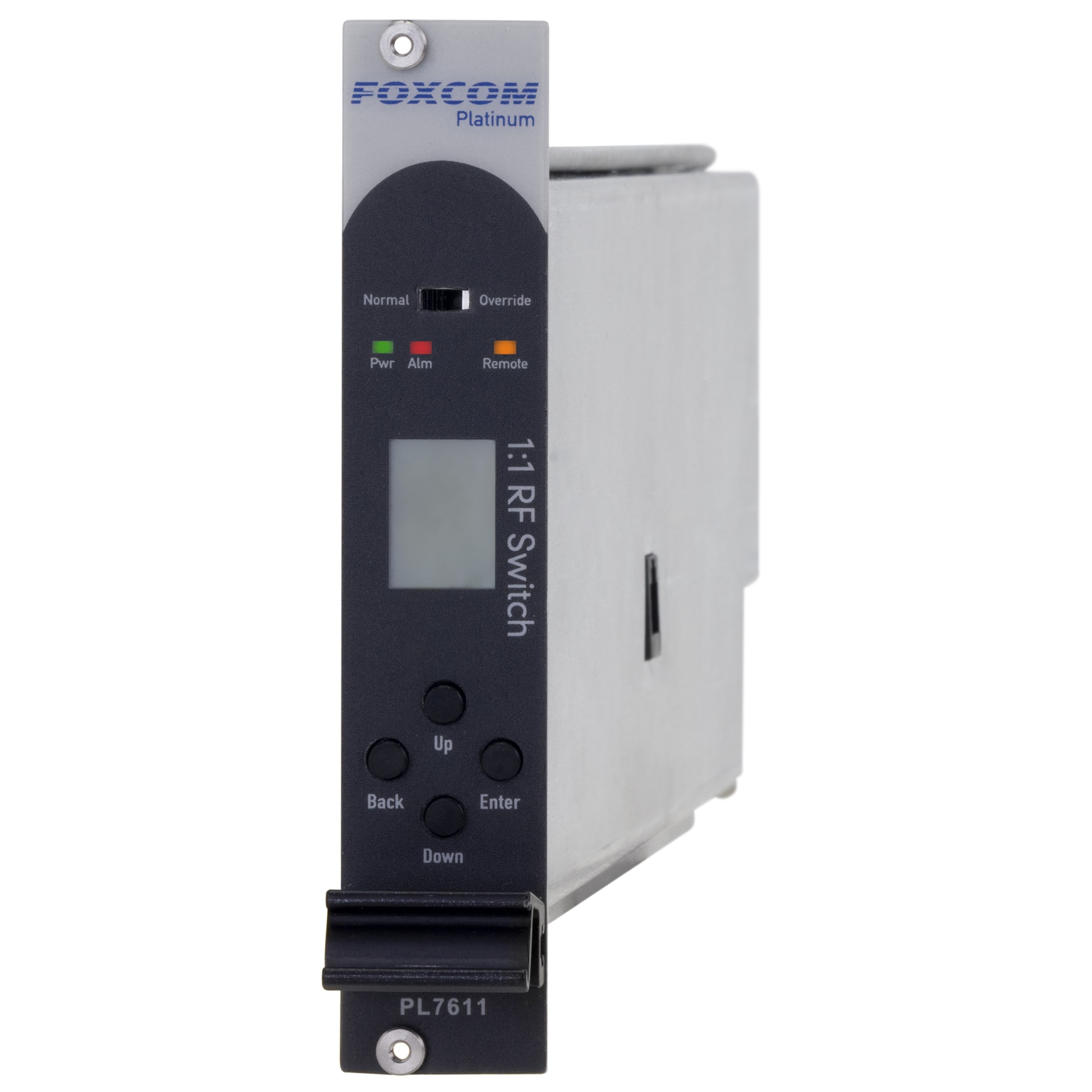

Redundancy 1:1 RF Protection Switch

The Redundancy 1:1 RF Protection Switch PL7611 card provides 1:1 redundant switching for the Sat-Light/Platinum inter-facility link products, including the IF and L-band families. It can be controlled either locally or remotely. Our Platinum... Read full description

SKU: PL7611

Categories: SATCOM

Description Specifications Enquire

The Redundancy 1:1 RF Protection Switch PL7611 card provides 1:1 redundant switching for the Sat-Light/Platinum inter-facility link products, including the IF and L-band families.

It can be controlled either locally or remotely. Our Platinum series MCP [PL700] can set the switching state (either remote or local) or the transmission path (channels A or B). However, in the case of a fault in the SNMP manager, the user can override the SNMP manager and return to control locally via the front panel overrideswitch.

The Sat-Light/Platinum MCP graphically displays the active path. Switching from the primary to redundant path can be performed by the PL7611 manually or automatically. When the unit switches to the redundant channel, it will lock and continue to transmit over that channel regardless of the input to the primary channel. The high reliability, high-frequency relay redundancy switch can be configured to detect faults the optical signal, or both. In addition the user can set the threshold level at which the PL7611switch detects loss of RF signals.

The PL7611 provides two methods to detect which channel is operating:
1. Via a 3-pin Molex connector on the rear panel
2. Through the chassis via the 9-pin connector.

Redundant paths are configured using a Platinum RF splitter, which transmits the RF signal to two transmitter cards. These cards are connected via single mode fibre optic cable to two receivers. Each receiver card connects to the PL7611 via a supplied coaxial jumper cable. The PL7611 then transmits the RF output signal to the end device.

It features:

Automatic or manual switching
Remote operation possible via SNMP manager
DC to 3 GHz bandwidth
Rapid switching to allow signal continuity
Adjustable signal level detection for each channel separately
Locking switch circuit

RF Specification	Value
Frequency Range - Bandwidth	DC - 3000MHz
Amplitude Response @ Unity Gain	DC to 950MHz: ±0.2; 950 to 2400MHz: ±0.4; 2400 to 3000MHz: ±0.7.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Redundancy 1:1 RF Protection Switch specifications.

PL7611_11_RF_Protection_Switch_v1_GF.pdf
