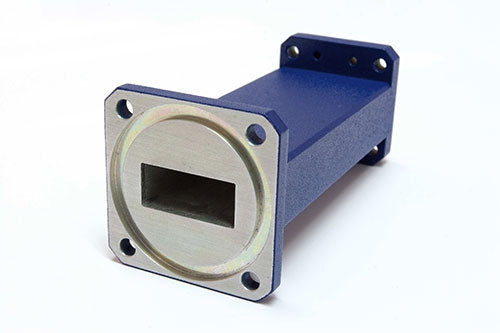

Rigid Rectangular Waveguide (WG00 to WG27 / WR2300 to WR10)

Name: Rigid Rectangular Waveguide (WG00 to WG27 / WR2300 to WR10)
Brand: Global Invacom Group
SKU: Rigid rectangular waveguides
Availability: InStock

SKU: Rigid rectangular waveguides

Categories: ANCIL

A range of standard length waveguide straights in a variety of materials. The high performance is based on the use of selected, sized, tube, careful assembly and selective tuning where necessary.

Read full description

More Information

A range of standard length waveguide straights in a variety of materials. The high performance is based on the use of selected, sized, tube, careful assembly and selective tuning where necessary.

Precision Straights

A range of standard length waveguide straights in a variety of materials. The high performance is based on the use of selected, sized, tube, careful assembly and selective tuning where necessary.

Standard Rectangular

Specification:
V.S.W.R: Values for through flanges only
Power: Values at F = 1.5 Fc
Material: Brass, Aluminium or Copper
Finish: Blue Paint, aluminium - iridited, unplated flanges

Operating Frequency Band (GHz)	Waveguide Designation			Max V.S.W.R.	Insertion Loss dB's per metre	Max Power K Watts
Operating Frequency Band (GHz)	UK WG	IEC R	E.I.A. WR	Max V.S.W.R.	Insertion Loss dB's per metre	Max Power K Watts
1.70 - 2.60.	8	22	430	1.03	0.010	5900
2.20 - 3.30	9A	26	340	1.03	0.015	3800
2.60 - 3.95	10	32	284	1.03	0.019	2430
3.30 - 4.90	11A	40	229	1.03	0.025	1600
3.95 - 5.85	12	48	187	1.03	0.036	1040
4.90 - 7.05	13	58	159	1.03	0.043	806
5.85 - 8.20	14	70	137	1.03	0.058	544
7.05 - 10.0	15	84	112	1.03	0.079	355
8.20 - 12.40	16	100	90	1.03	0.11	229
10.0 - 15.0	17	120	75	1.05	0.13	178
12.4 - 18.0	18	140	62	1.05	0.18	123
15.0 - 22.0	19	180	51	1.08	0.24	83
18.0 - 26.5	20	220	42	1.08	0.37	48
22.0 - 33.0	21	260	34	1.08	0.37	48
26.5 - 40.0	22	320	28	1.08	0.58	25

** Length in millimetres. Lengths up to 3 metres available as standard.
*** For 3 Digit Rectangular Flange part number, refer to the Flange Catalogue, or consult our sales team.

Double Ridge

Specification:
V.S.W.R: Values for through flanges only
Power: Values at F = 1.5 Fc
Material: Aluminium
Finish: Blue Paint, iridited aluminium flanges

Operating Frequency Band (GHz)	Waveguide Designation	Max V.S.W.R.	Insertion Loss dB's per metre	Max Power K Watts
4.75 - 11.0	WRD475 D24	1.06	0.161	83
5.8 - 16.0	WRD580 D28	1.08	0.305	32
6.5 - 18.0	WRD650 D28	1.08	0.348	23
7.5 - 18.0	WRD 750 D24	1.08	0.315	33
18.0 - 40.0	WRD180 C24	1.11	1.18	5.3

** Length in millimetres. Lengths up to 3 metres available as standard.
*** For 3 Digit Rectangular Flange part number, refer to the Flange Catalogue, or consult our sales team.

Ordering information

Example: PS 16 S Q Z 402 402 B M500

PS
- Product code:
  PS = Precision Straight
16
- Waveguide size:
  British WG size for rectangular waveguide or MIL spec. WRD size for double ridge waveguide
  e.g. 16 = WG16; 750 = WRD750
S
- Type:
  S = Standard
Q
- Paint:
  Q = TWS blue (preferred)
  B = black
  G = grey
Z
- Finish:
  Z = unplated (preferred for brass / copper)
  M = passivate (option for brass)
  F = Iridite (preferred for aluminium)
  H = chromate
  A = tin
  B = silver
402
- Flange type (end1):
  Last 3 digits from the flange part no.
  e.g. 402 = UBR flange
402
- Flange type (end2):
  Last 3 digits from the flange part no.
  e.g. 402 = UBR flange
B
- Material:
  A = aluminium
  B = brass (rectangular wg only)
  C = copper (rectangular wg only)
M500
- Length:
  "M" length in mm (preferred)
  "I" length in inches
  e.g. M500 = 500mm

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Rigid Rectangular Waveguide (WG00 to WG27 / WR2300 to WR10) specifications.

06_waveguide_rigid_components_1.0b_new.pdf
