Gold S-Band Optical Link
Categories:
RF over Fibre (RFoF)
Our Sat-Light/Gold S-Band Interfacility Link (IFL) offers a high performance, cost effective alternative to conventional coaxial-cabled systems. Sat-Light/Gold S-Band IFL covers the range of 2000 t...
More Information
Our Sat-Light/Gold S-Band Interfacility Link (IFL) offers a high performance, cost effective alternative to conventional coaxial-cabled systems. Sat-Light/Gold S-Band IFL covers the range of 2000 to 3000MHz. The Gold Series S-Band link is designed for a wide range of satellite uplinking facilities whereby high input power levels are required. Our high dynamic range DFB laser delivers exceptional signal quality for the most demanding of uplink applications.
The new Sat-Light Gold series is compatible with first generation Sat-Light 7000 Series platform. The Gold Series support L-Band, 70/140MHz IF, Wide Band (10-2200 MHz), 10MHz Reference, S-Band, Redundancy, M & C, SNMP, Ethernet, and Serial Data Communication.

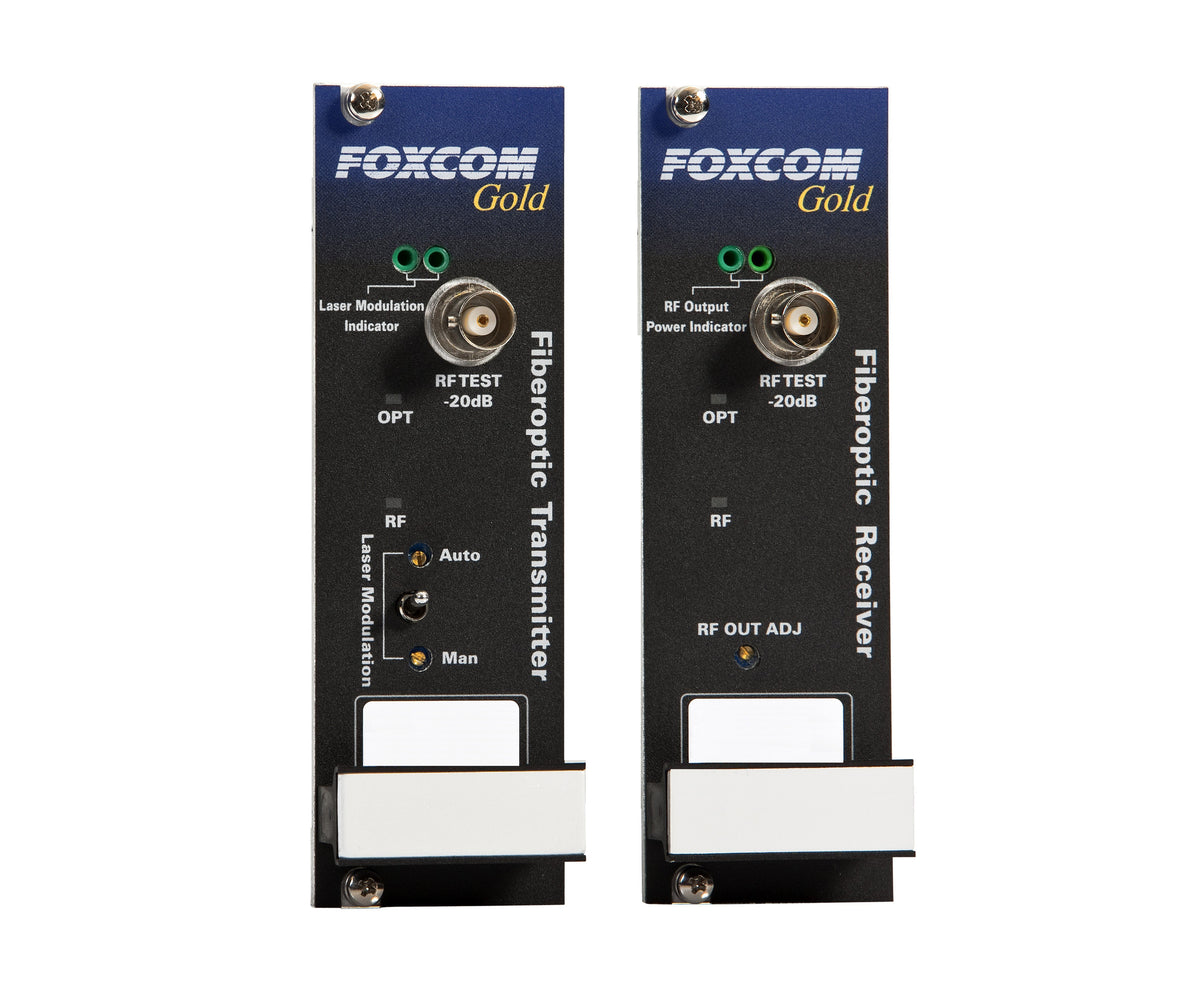

The link consists of a high input power optical transmitter, which receives the RF signal from an L-band modem, and an optical receiver that connects to the antenna Block Upconverter (BUC). All satellite modulation schemes are accommodated – digital or analog. Inherently low phase is achieved by direct modulation of the laser diode.
Features:
- High input power (-5 to –30dBm)
- 10km transmission distance
- Selectable AGC/MGC
- Front panel test port
- Powerful monitoring features
- Compatible with all 1st generation Sat-Light products
| RF Specification | Value |
|---|---|
| Frequency Range - Bandwidth | 2000-3000MHz |
| Amplitude Response @ Unity Gain | ±2.2 |
| Noise Figure | 18dB |
| Output IP3 (OIP3) | 15dBm |
| Input Signal Range - Total Power | -5 to -30dBm |
| RF Output Signal Range - Total Power | 0 to -25dBm |
| Optical Specifications | |
| Optical Budget / Distance 1310nm 1550nm | 4dB (8Km | 15Km) |
For more details and prices please use the product enquiry form or contact our sales team.
Specifications
Download the Gold S-Band Optical Link specifications.
