Home Products RF over Fibre (RFoF) Sat-Light/Platinum Chassis Kit

Sat-Light/Platinum Chassis Kit

The Sat-Light/Platinum chassis kit PL7010 is a standard 19", 3RU chassis, that can hold up to twelve Sat-Light/Platinum cards, the new M&C controller [PL700] and two power supplies [PL7011]. The... Read full description

SKU: PL7010

Categories: SATCOM

Description Specifications Enquire

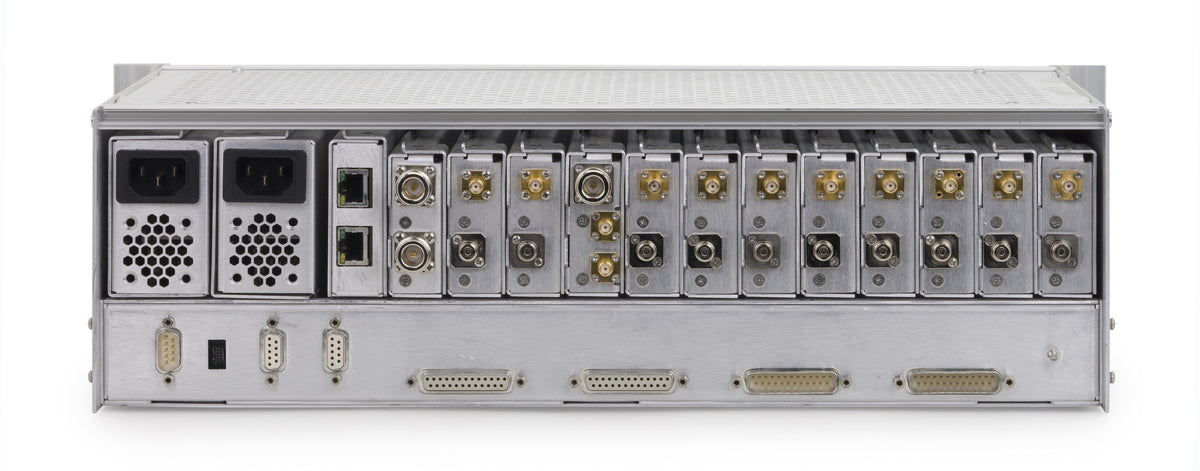

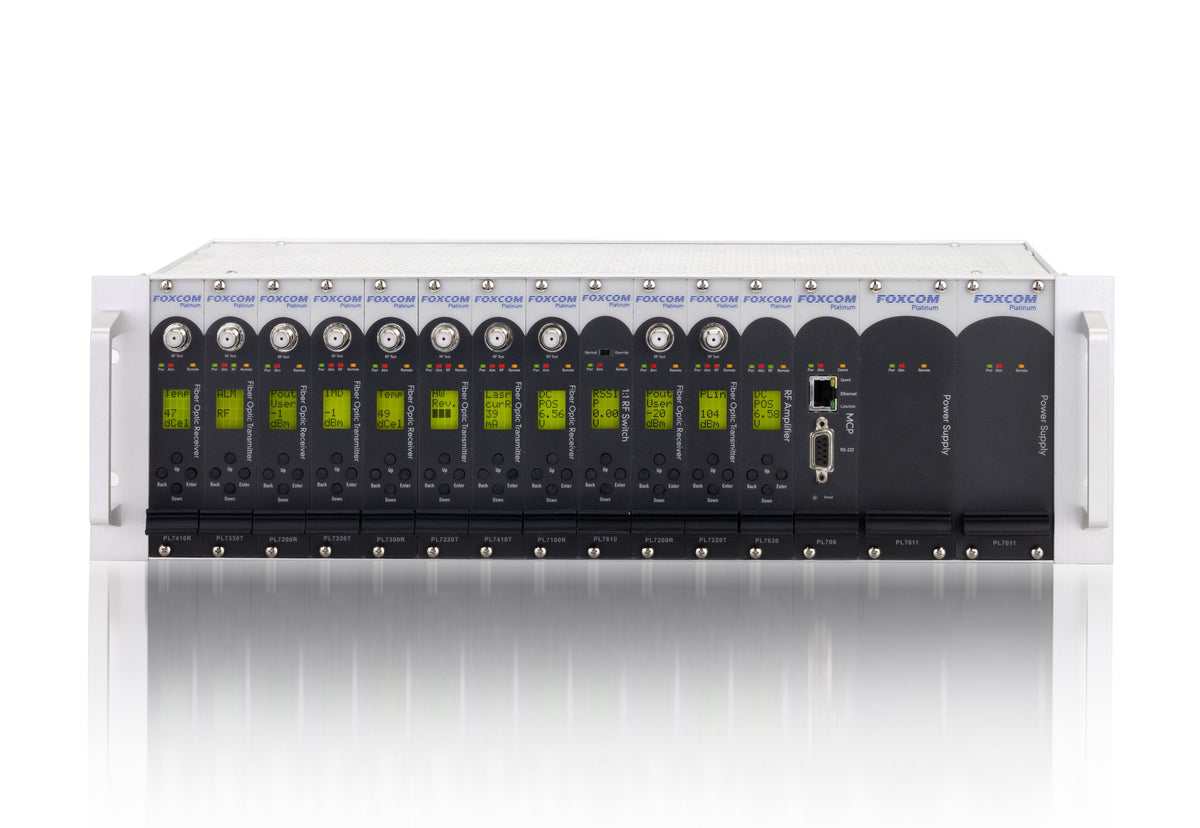

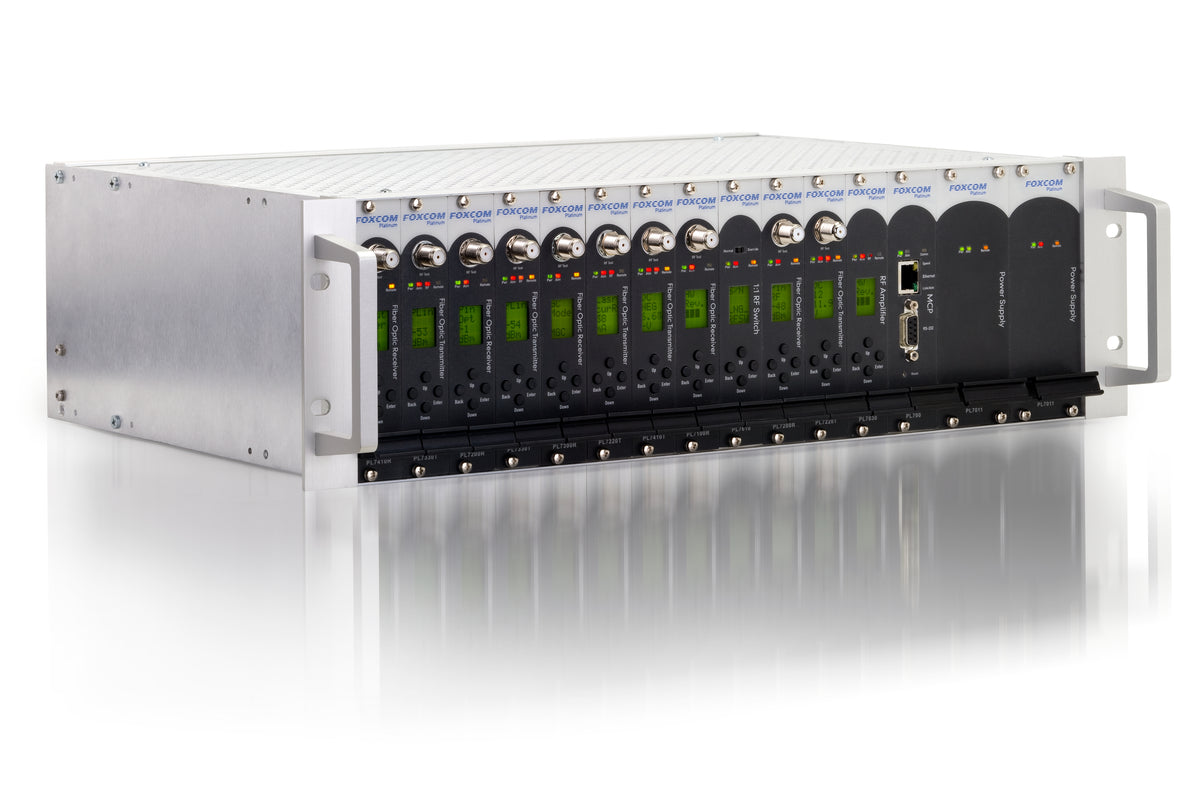

The Sat-Light/Platinum chassis kit PL7010 is a standard 19", 3RU chassis, that can hold up to twelve Sat-Light/Platinum cards, the new M&C controller [PL700] and two power supplies [PL7011].

The chassis includes an innovative backplane enabling our Sat-Light/Platinum M&C features (DigiRF) and, at the same time, provides legacy dry contact closures, open collector discrete optical and RF alarms and legacy RSSI/PDI discrete monitoring for customers upgrading from a legacy Foxcom system.

The PL7010C chassis kit includes two matching power supplies (PL7011) and an advanced M&C controller (PL700).

Each power supply supports an AC input range of 100 to 240VAC, enabling the use of separate main power sources for additional redundancy.

It features:

Dedicated controller slot
Dual redundant power supply
Supports the latest PL700 Microprocessor features

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Sat-Light/Platinum Chassis Kit specifications.

PL7010_PL7011_GF_Chassis_Kit_2PSs.pdf
