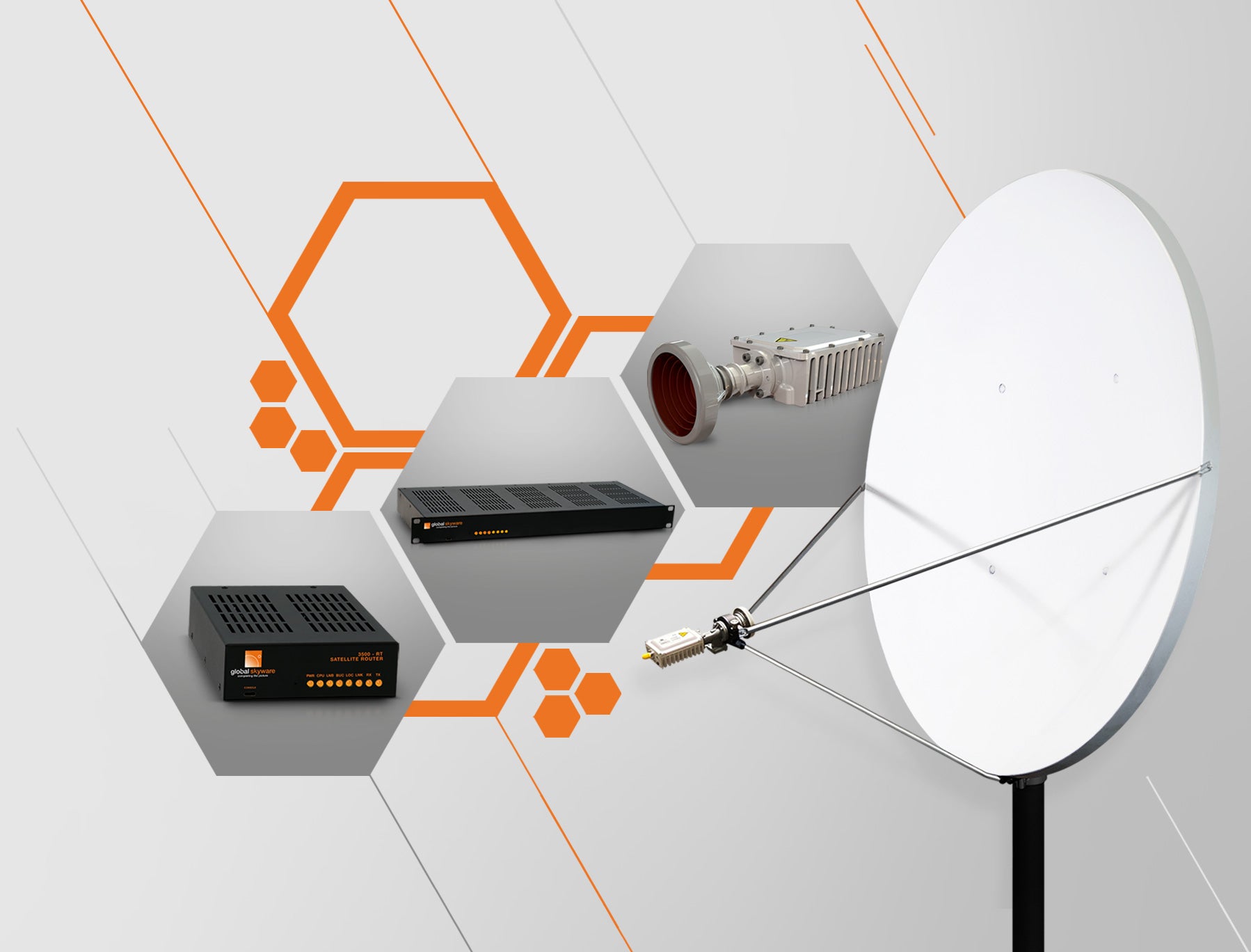

SCADA System and terminals

The platform is a complete and private satellite networking solution capable of reaching any SCADA and M2M Telemetry site.

The system consists of a number of quality products which are all supplied by Global Skyware and completely interoperable.

Hub application

2.4m Rx/Tx Ku-Band Class III Antenna

This antenna is a rugged, commercial grade product suitable for the most demanding applications.

XRZe 3W TX Ku-band VSAT Transceivers

A transceiver which is a complete Very Small Aperture Terminal (VSAT) Outdoor Unit (ODU) solution in a single box. It has an integrated BUC, LNB & OMT with a fixed cross-polar transmitter, receiver and a high performance feed horn.

GS 3500 Hub Main Unit

The 3500 hub main unit is designed to support small to medium sized private star and mesh network deployments. The unit can operate with very low forward and return link data rates (9.6kbps) to minimise OPEX when deployed for narrowband SCADA, M2M and IOT applications with highly asymmetrical traffic and where the inbound throughput is dominant.

Remote application

96cm Rx/Tx Ku-Band LFL Class I Antenna

The 96cm Standard Rx/Tx Ku-Band LFL Class I Antenna is a rugged, commercial quality product suitable for the most demanding applications particularly for remote applications.

GS 3500 Remote Unit

Optimised for applications in harsh and remote environments, it is compatible with both IP and legacy serial devices and operates independent from terrestrial communications systems. With the Global Skyware HUB placed on your premises, you control the network fully. The Global Skyware 3500 platform is highly scalable and suits both small and medium sized networks. Global Skyware 3500 builds on the legacy of the Global Skyware 3000. The future-proof operating system and the updated hardware ensure best in class cyber security and access controls that support mission critical applications in any remote environment onshore or offshore.

Download the SCADA System and terminals specifications.

Global_Invacom_SCADA_Datasheet_Booklet.pdf
